Ball valve unit with quarter turn actuator stainless steel EN 1092-1 flange DN 25 PN 40 VZBC-A-25-FF-40-22-F0405-V4V4T-PA40 - Festo 8191879

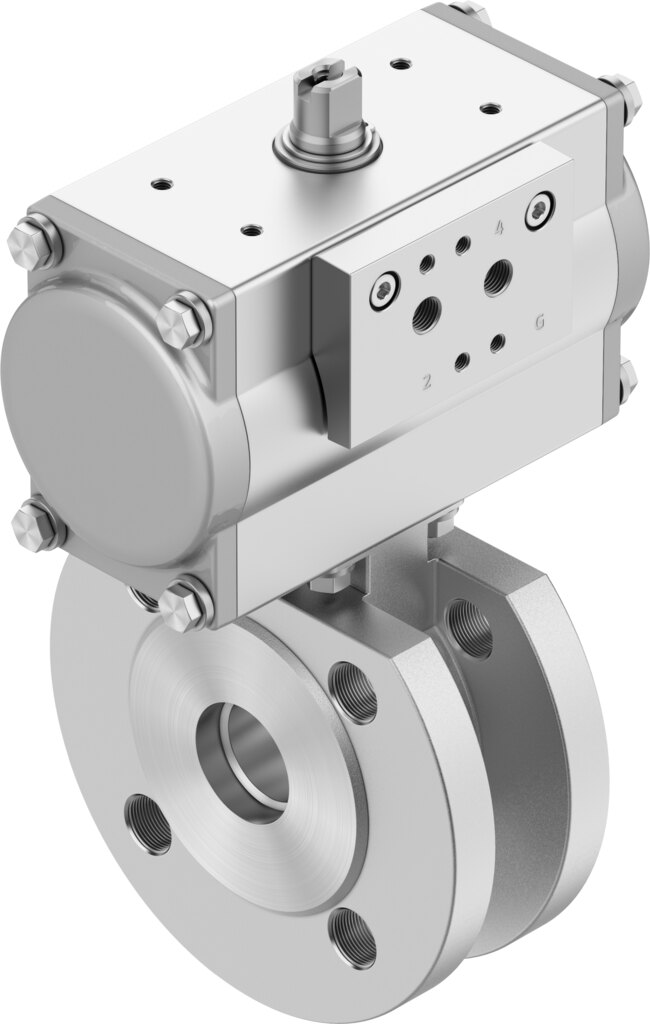

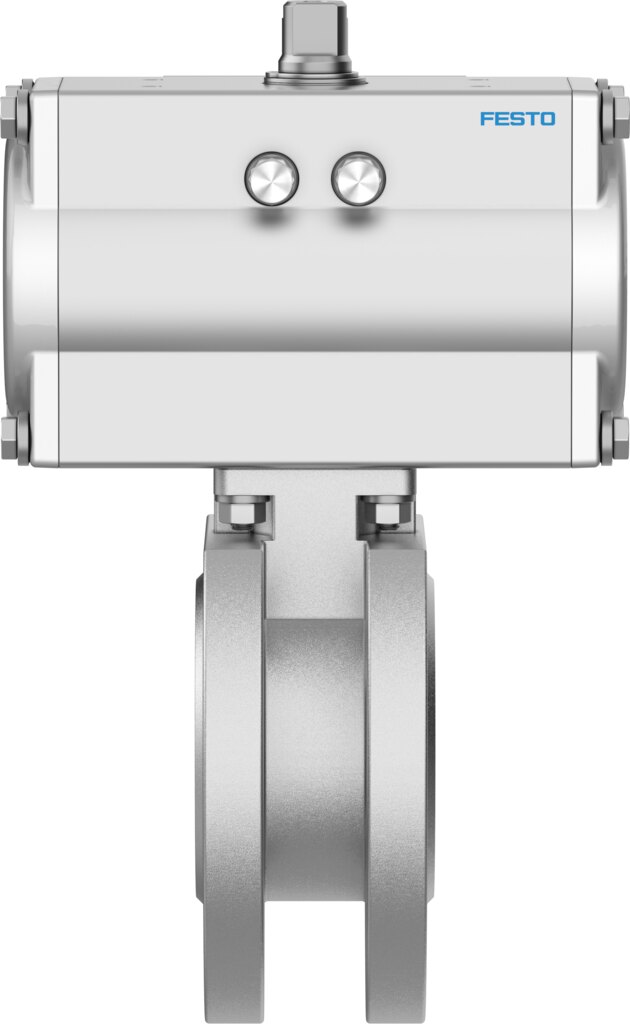

Ball valve unit VZBC-A-25-FF-40-22-F0405-V4V4T-PA40 with pneumatic quarter turn actuator for DN 25 lines up to PN 40, mounted and ready for use. Connection flange to EN 1092-1, housing in high-alloy stainless steel, Kv 71.5 m³/h. Actuator for operating pressure 5.5 to 8 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For automated shut-off in DN 25 lines, the ball valve unit VZBC-A-25-FF-40-22-F0405-V4V4T-PA40 combines a PN 40 ball valve with a pneumatic quarter turn actuator. Flow rate Kv 71.5 m³/h.
Benefits at a glance
- Flow rate Kv 71.5 m³/h at nominal size DN 25
- Nominal pressure PN 40 for the valve body
- Media from -10 to 200 °C
- Housing and ball in high-alloy stainless steel 1.4408
- Actuator interface F0405 to ISO 5211
- Quarter turn actuator for operating pressure 5.5 to 8 bar
Applications
Suitable for compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Mounting position is freely selectable. The VZBC type 8191879 is approved for ATEX zones 1, 2, 21 and 22.
Technical data
| Feature | Value |
|---|---|
| Type | VZBC-A-25-FF-40-22-F0405-V4V4T-PA40 |
| Festo part number | 8191879 |
| Design | Quarter turn actuator |
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | Flange to EN 1092-1 |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F0405 |
| Nominal size DN | 25 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Operating pressure | 5.5 to 8 bar |
| Nominal pressure PN | 40 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 17 Nm |
| Based on standard | ISO 5211 |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature | -10 to 200 °C |
| Flow rate Kv | 71.5 m³/h |
| Max. surface temperature assembly | +105°C...+280°C, T4...T2 |
| explosion group assembly | IIC, IIIC |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | High-alloy stainless steel |
| Material number housing | 1.4408 |
| Material seat seal | PTFE |
| Material seals | PTFE-reinforced |
| Material ball | High-alloy stainless steel |
| Material number ball | 1.4408 |
| Material shaft | High-alloy stainless steel |
| Material number shaft | 1.4401 |
| Product weight | 3995 g |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Explosion ambient temperature | -10°C <= Ta <= +80°C |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VZBC-A-25-FF-40-22-F0405-V4V4T-PA40 |
| EAN | 4052568715403 |
| Zolltarifnummer | 84818081 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel 1.4408 |
| Nominal size DN [mm] | 25 |
| Nominal pressure PN [bar] | 40 |
| Housing material | Stainless steel 1.4408 |
| Function | 2/2 |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -10 bis 200 |
| Norm | DIN EN 1092-1, ISO 5211 |
| Series | VZBC |
