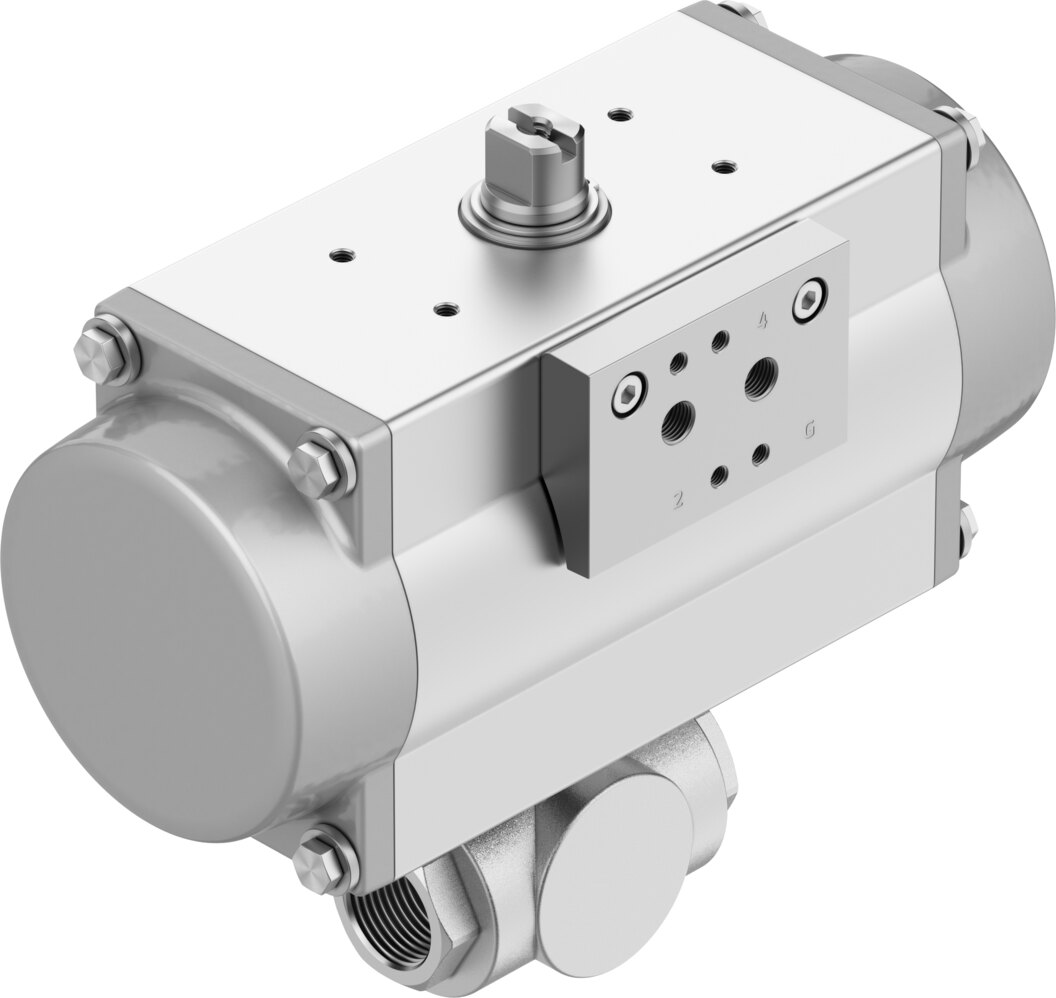

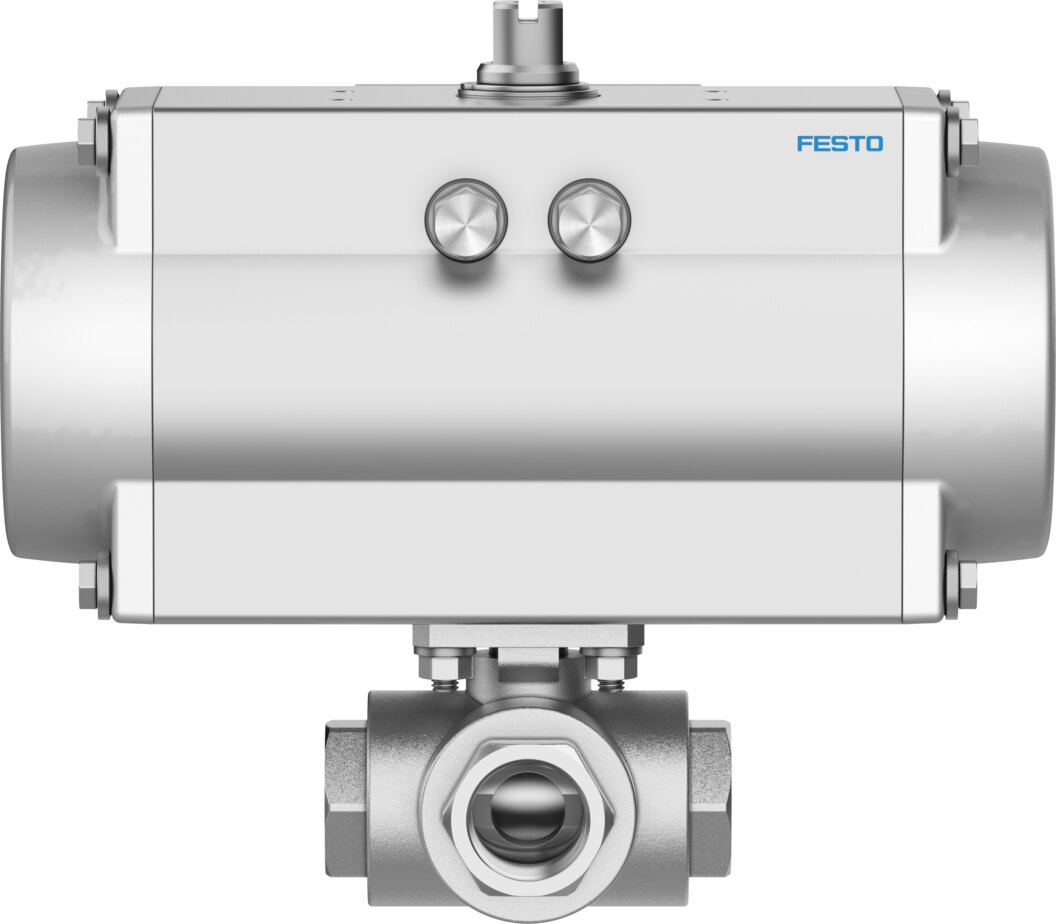

Ball valve unit 3/2-way L-bore pneumatic stainless steel Rp3/8 DN 10 VZBA-A-3/8-GGG-63-32L-F0304-V4V4T-PB40 - Festo 8191854

Festo ✓ Original product Brand new

The pneumatic quarter turn actuator comes fitted, so the unit switches DN 10 with Rp3/8 female thread at 5.5 to 8 bar operating pressure. Stainless steel housing 1.4408, Kv 4.5 m³/h (L-bore), media from -10 to 200 °C. Suitable for hazardous areas of explosion group IIC, IIIC.

Net
€431.74
excl. VAT
Item FES-8191854
Manufacturer no. VZBA-A-3/8-GGG-63-32L-F0304-V4V4T-PB40
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Ready-to-install ball valve unit for DN 10: ball valve with Rp3/8 female thread and pneumatic quarter turn actuator are already joined in the VZBA-A-3/8-GGG-63-32L-F0304-V4V4T-PB40. Housing material stainless steel 1.4408.

Benefits

  • Flow rate Kv 4.5 m³/h (L-bore) at nominal size DN 10
  • Process valve rated for nominal pressure PN 63
  • Housing and ball in stainless steel 1.4408, shaft 1.4401, corrosion resistance class CRC 1
  • Media temperature -10 to 200 °C, seals in PTFE / PTFE-reinforced
  • Actuator interface via flange pattern F03/F04 to ISO 5211
  • Breakaway torque 13 Nm at nominal pressure

Applications

Typical media for the VZBA-A-3/8-GGG-63-32L-F0304-V4V4T-PB40 are compressed air, inert gases, neutral liquids and water without steam. Mounting position is freely selectable. Ex ambient temperature -10 °C ≤ Ta ≤ +80 °C.

Technical data

FeatureValue
TypeVZBA-A-3/8-GGG-63-32L-F0304-V4V4T-PB40
Festo part number8191854
Designquarter turn actuator
Type of actuationpneumatic
Sealing principleSoft
Mounting positionany
Type of mountinginline installation
Connection process valveRp3/8
Switching position indicatorslot direction = flow direction
Flange hole patternF0304
Nominal size DN10
Valve function3/2
Flow directionReversible
Operating pressure5.5 to 8 bar
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN13 Nm
Based on standardISO 5211
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 to 200 °C
Flow rate Kv L-bore4.5 m³/h
Maximum surface temperature assembly+105 °C...+280 °C, T4...T2
Explosion group assemblyIIC, IIIC
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housinghigh-alloy stainless steel
Material number housing1.4408
Material seat sealPTFE
Material sealsPTFE-reinforced
Material ballhigh-alloy stainless steel
Material number ball1.4408
Material shafthigh-alloy stainless steel
Material number shaft1.4401
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Ex ambient temperature-10 °C ≤ Ta ≤ +80 °C
Corrosion resistance class CRC1 - low corrosion stress
ManufacturerFesto
Hersteller-NrVZBA-A-3/8-GGG-63-32L-F0304-V4V4T-PB40
EAN4052568715151
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
ThreadRp 3/8
Nominal size DN [mm]10
Nominal pressure PN [bar]63
Seal materialPTFE, PTFE-reinforced
Housing materialStainless steel 1.4408
Function3/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 200
SeriesVZBA
Betriebsdruck max [bar]8

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
