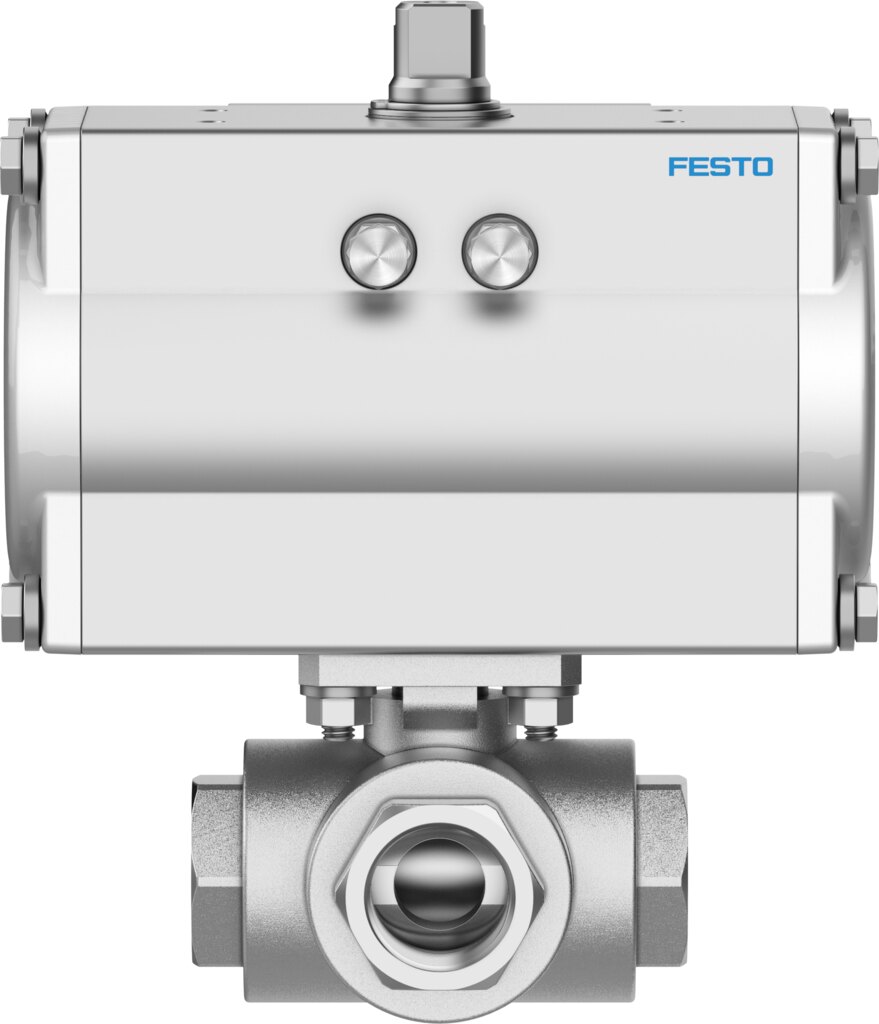

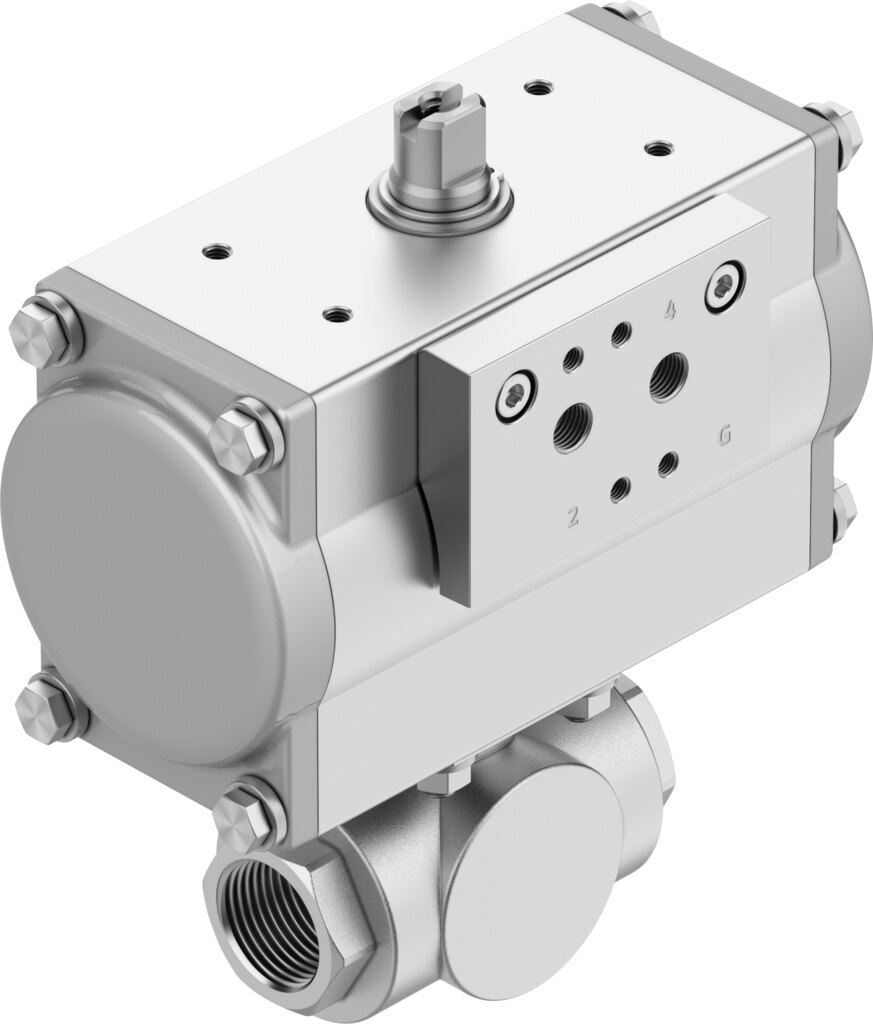

Ball valve unit 3/2-way T-bore pneumatic stainless steel Rp3/4 DN 20 VZBA-A-3/4-GGG-63-32T-F0405-V4V4T-PA40 - Festo 8191864
The pneumatic quarter turn actuator comes fitted, so the unit switches DN 20 with Rp3/4 female thread at 5.5 to 8 bar operating pressure. Stainless steel housing 1.4408, Kv 8.3 m³/h straight, 4.8 m³/h angled, media from -10 to 200 °C. Suitable for hazardous areas of explosion group IIC, IIIC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The ball valve unit VZBA-A-3/4-GGG-63-32T-F0405-V4V4T-PA40 switches a DN 20 line with Rp3/4 female thread on and off pneumatically, ball valve and quarter turn actuator are supplied as one unit. Housing material stainless steel 1.4408.
Benefits
- Flow rate Kv 8.3 m³/h straight, 4.8 m³/h angled at nominal size DN 20
- Process valve rated for nominal pressure PN 63
- Housing and ball in stainless steel 1.4408, shaft 1.4401, corrosion resistance class CRC 1
- Media temperature -10 to 200 °C, seals in PTFE / PTFE-reinforced
- Actuator interface via flange pattern F04/F05 to ISO 5211
- Breakaway torque 18 Nm at nominal pressure
Applications
Typical media for the VZBA-A-3/4-GGG-63-32T-F0405-V4V4T-PA40 are compressed air, inert gases, neutral liquids and water without steam. Mounting position is freely selectable. Ex ambient temperature -10 °C ≤ Ta ≤ +80 °C.
Technical data
| Feature | Value |
|---|---|
| Type | VZBA-A-3/4-GGG-63-32T-F0405-V4V4T-PA40 |
| Festo part number | 8191864 |
| Design | quarter turn actuator |
| Type of actuation | pneumatic |
| Sealing principle | Soft |
| Mounting position | any |
| Type of mounting | inline installation |
| Connection process valve | Rp3/4 |
| Switching position indicator | slot direction = flow direction |
| Flange hole pattern | F0405 |
| Nominal size DN | 20 |
| Valve function | 3/2 |
| Flow direction | Reversible |
| Operating pressure | 5.5 to 8 bar |
| Nominal pressure PN | 63 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 18 Nm |
| Based on standard | ISO 5211 |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature | -10 to 200 °C |
| Flow rate Kv T-bore angled | 4.8 m³/h |
| Flow rate Kv T-bore straight | 8.3 m³/h |
| Maximum surface temperature assembly | +105 °C...+280 °C, T4...T2 |
| Explosion group assembly | IIC, IIIC |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | high-alloy stainless steel |
| Material number housing | 1.4408 |
| Material seat seal | PTFE |
| Material seals | PTFE-reinforced |
| Material ball | high-alloy stainless steel |
| Material number ball | 1.4408 |
| Material shaft | high-alloy stainless steel |
| Material number shaft | 1.4401 |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Ex ambient temperature | -10 °C ≤ Ta ≤ +80 °C |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| Weight (price list) | 3 kg |
| Weight | 3 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZBA-A-3/4-GGG-63-32T-F0405-V4V4T-PA40 |
| EAN | 4052568715250 |
| Zolltarifnummer | 84818081 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel 1.4408 |
| Thread | Rp 3/4 |
| Nominal size DN [mm] | 20 |
| Nominal pressure PN [bar] | 63 |
| Seal material | PTFE, PTFE-reinforced |
| Housing material | Stainless steel 1.4408 |
| Function | 3/2 |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -10 bis 200 |
| Series | VZBA |
| Betriebsdruck max [bar] | 8 |
