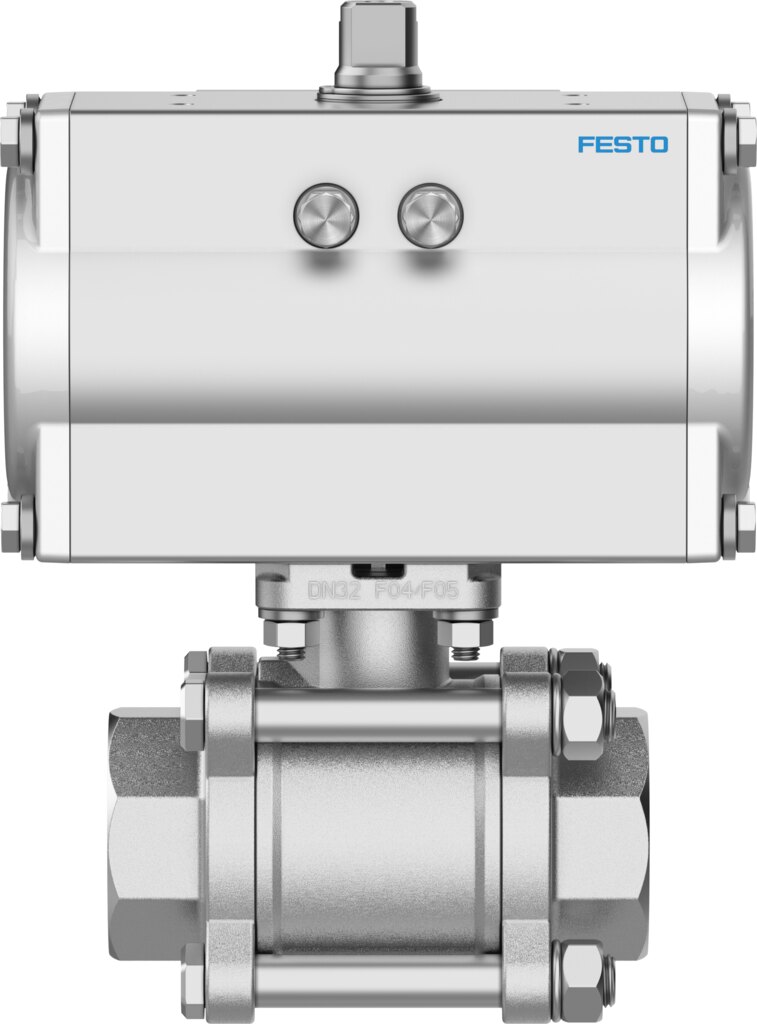

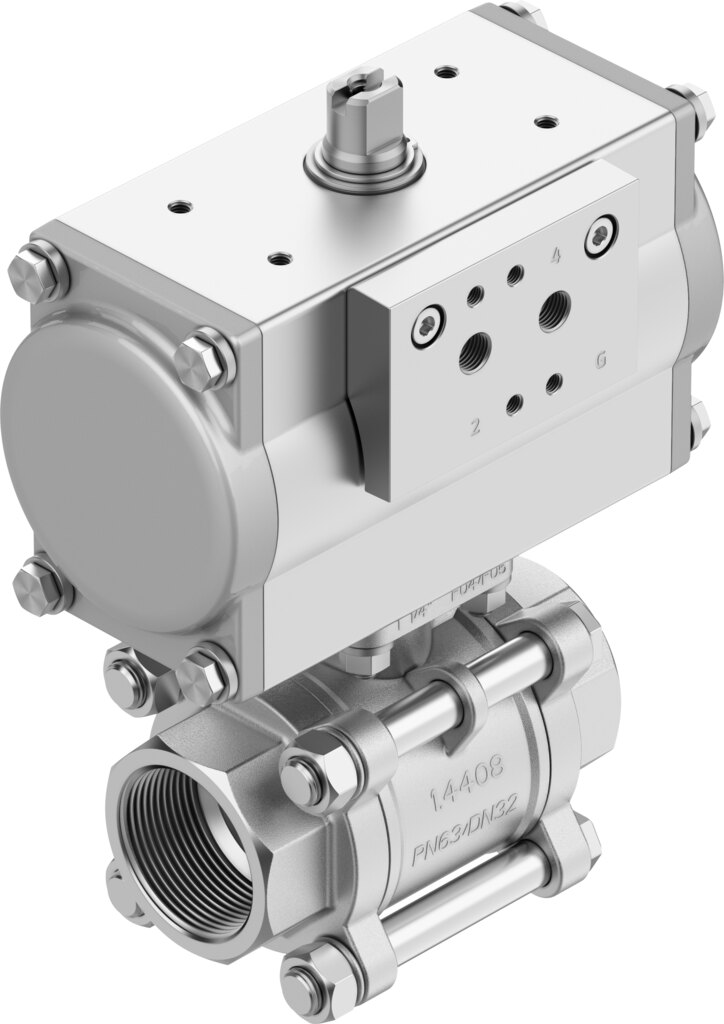

Ball valve unit VZBA-A-21/2-GG-63-T-22-F0710-V4V4T-PA120 - Festo 8191809
Net
excl. VAT
€1,017.85
Item
FES-8191809
Manufacturer no.
VZBA-A-21/2-GG-63-T-22-F0710-V4V4T-PA120
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Quarter turn actuator |
|---|---|
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | Rp2 1/2 |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F0710 |
| Nominal size DN | 65 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Operating pressure | 5.5 ... 8 bar |
| Nominal pressure PN | 63 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 78 Nm |
| Based on standard | ISO 5211 |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no steam, Neutral fluids, Other media on request |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature | -10 ... 200 °C |
| Flow rate Kv | 507 m³/h |
| Max. surface temperature assembly | +105°C...+280°C, T4...T2 |
| explosion group assembly | IIC, IIIC |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | High-alloy stainless steel |
| Material number housing | 1,4408 |
| Material seat seal | PTFE |
| Material seals | PTFE-reinforced |
| Material ball | High-alloy stainless steel |
| Material number ball | 1,4408 |
| Material shaft | High-alloy stainless steel |
| Material number shaft | 1,4401 |
| Product weight | 16070 g |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Explosion ambient temperature | -10°C <= Ta <= +80°C |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VZBA-A-21/2-GG-63-T-22-F0710-V4V4T-PA120 |
| EAN | 4052568714482 |
| Zolltarifnummer | 84818081 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
