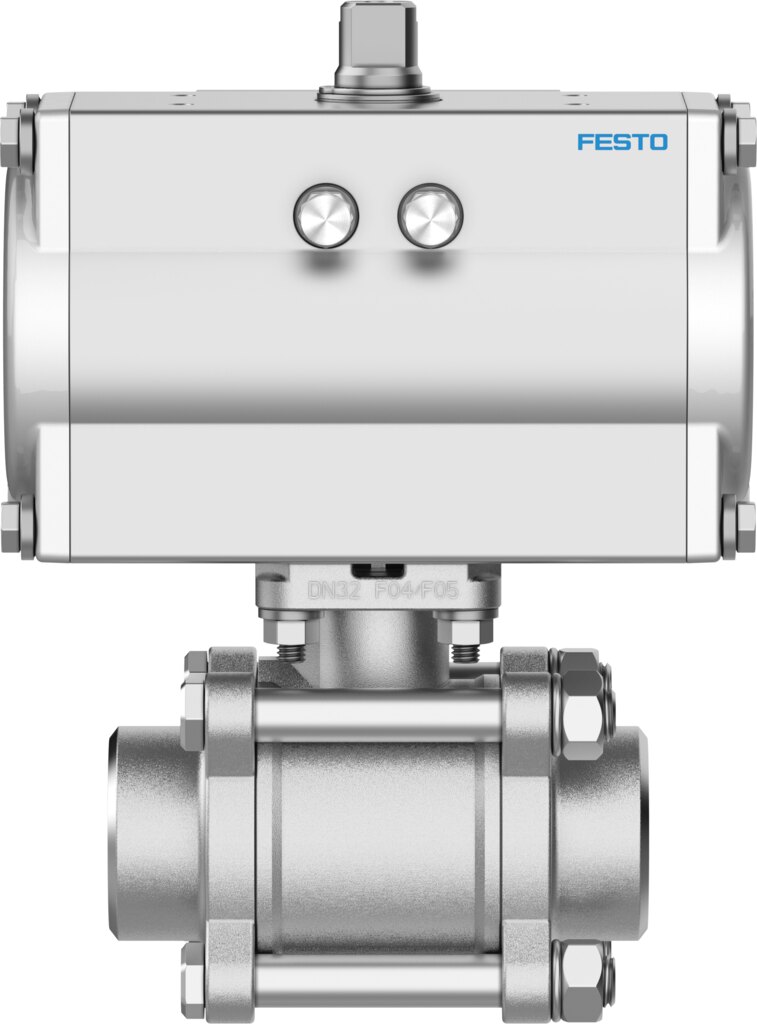

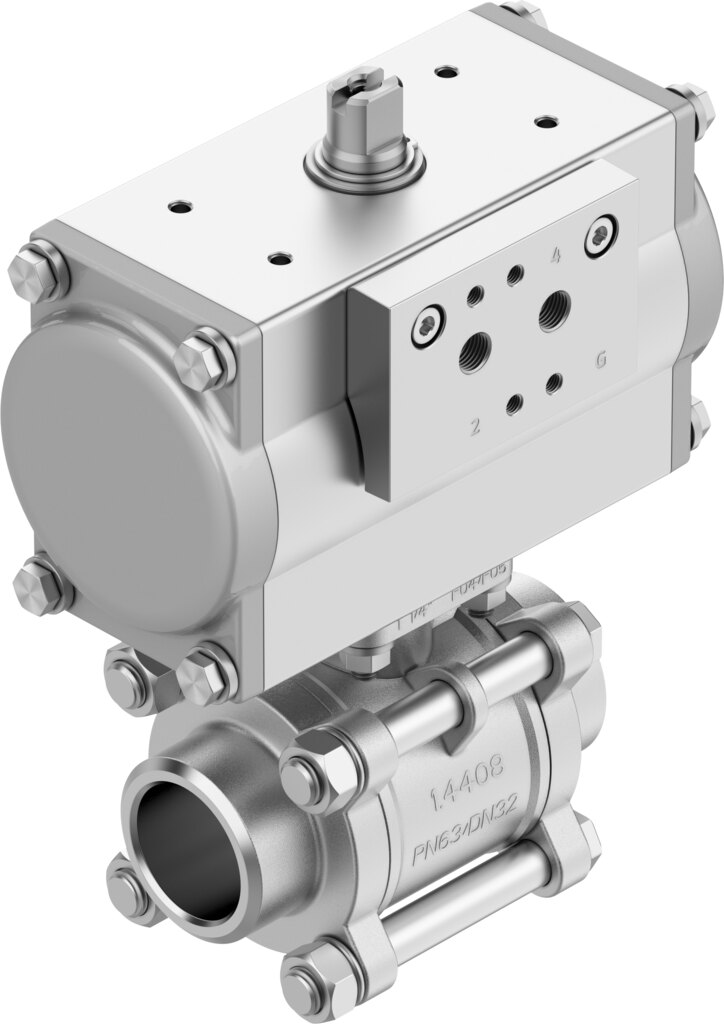

Ball valve unit 2/2-way pneumatic stainless steel with weld ends DN 15 VZBA-A-1/2-WW-63-T-22-F0304-V4V4T-PA20 - Festo 8191825

Festo ✓ Original product Brand new

The pneumatic quarter turn actuator comes fitted, so the unit switches DN 15 with weld ends at 5.5 to 8 bar operating pressure. Stainless steel housing 1.4408, Kv 19.4 m³/h, media from -10 to 200 °C. Suitable for hazardous areas of explosion group IIC, IIIC.

Net
€309.03
excl. VAT
Item FES-8191825
Manufacturer no. VZBA-A-1/2-WW-63-T-22-F0304-V4V4T-PA20
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Ready-to-install ball valve unit for DN 15: ball valve with weld ends and pneumatic quarter turn actuator are already joined in the VZBA-A-1/2-WW-63-T-22-F0304-V4V4T-PA20. The Kv value is 19.4 m³/h.

Benefits

  • Flow rate Kv 19.4 m³/h at nominal size DN 15
  • Process valve rated for nominal pressure PN 63
  • Housing and ball in stainless steel 1.4408, shaft 1.4401, corrosion resistance class CRC 1
  • Media temperature -10 to 200 °C, seals in PTFE / PTFE-reinforced
  • Actuator interface via flange pattern F03/F04 to ISO 5211
  • Breakaway torque 10 Nm at nominal pressure

Applications

Typical media for the VZBA-A-1/2-WW-63-T-22-F0304-V4V4T-PA20 are compressed air, inert gases, neutral liquids and water without steam. Mounting position is freely selectable. Ex ambient temperature -10 °C ≤ Ta ≤ +80 °C.

Technical data

FeatureValue
TypeVZBA-A-1/2-WW-63-T-22-F0304-V4V4T-PA20
Festo part number8191825
Designquarter turn actuator
Type of actuationpneumatic
Sealing principleSoft
Mounting positionany
Type of mountinginline installation
Connection process valveweld ends/weld ends
Switching position indicatorslot direction = flow direction
Flange hole patternF0304
Nominal size DN15
Valve function2/2
Flow directionReversible
Operating pressure5.5 to 8 bar
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN10 Nm
Based on standardISO 5211
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 to 200 °C
Flow rate Kv19.4 m³/h
Maximum surface temperature assembly+105 °C...+280 °C, T4...T2
Explosion group assemblyIIC, IIIC
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housinghigh-alloy stainless steel
Material number housing1.4408
Material seat sealPTFE
Material sealsPTFE-reinforced
Material ballhigh-alloy stainless steel
Material number ball1.4408
Material shafthigh-alloy stainless steel
Material number shaft1.4401
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Ex ambient temperature-10 °C ≤ Ta ≤ +80 °C
Corrosion resistance class CRC1 - low corrosion stress
ManufacturerFesto
Hersteller-NrVZBA-A-1/2-WW-63-T-22-F0304-V4V4T-PA20
EAN4052568714840
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
Nominal size DN [mm]15
Nominal pressure PN [bar]63
Seal materialPTFE, PTFE-reinforced
Housing materialStainless steel 1.4408
Function2/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 200
SeriesVZBA
Betriebsdruck max [bar]8
