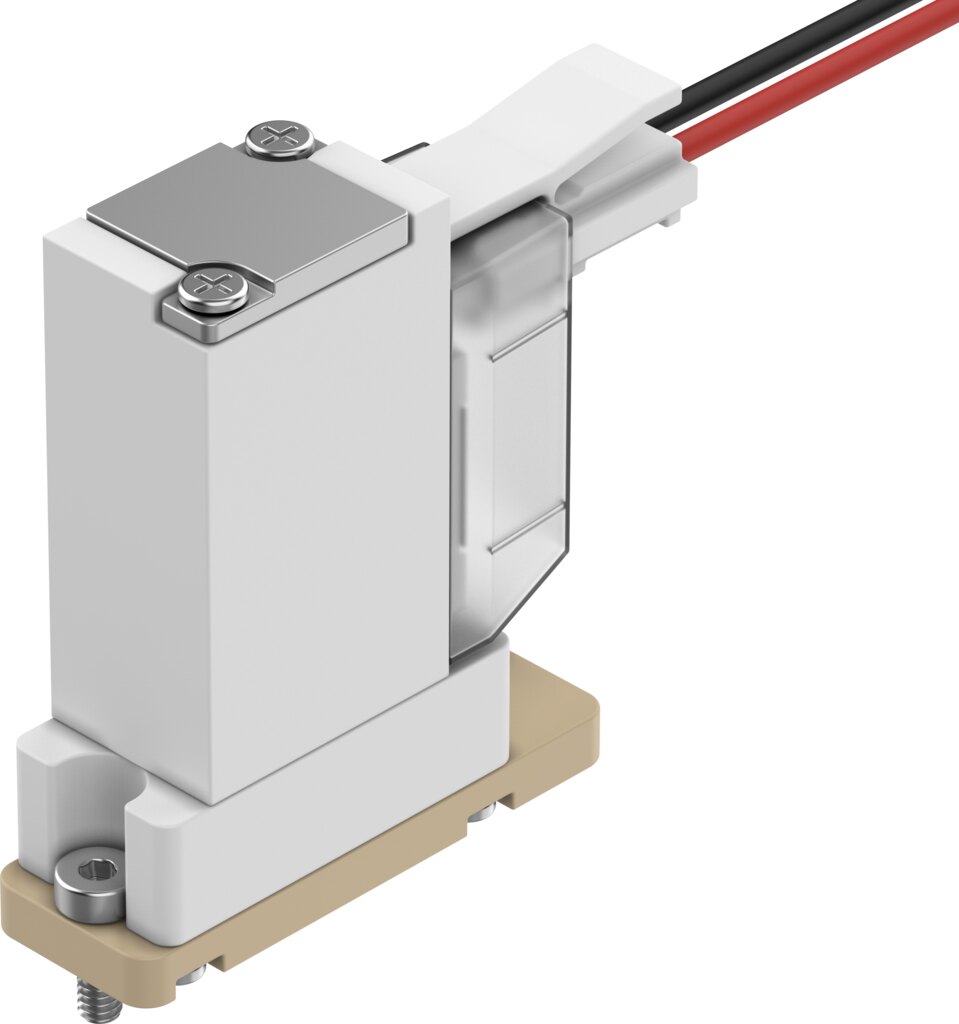

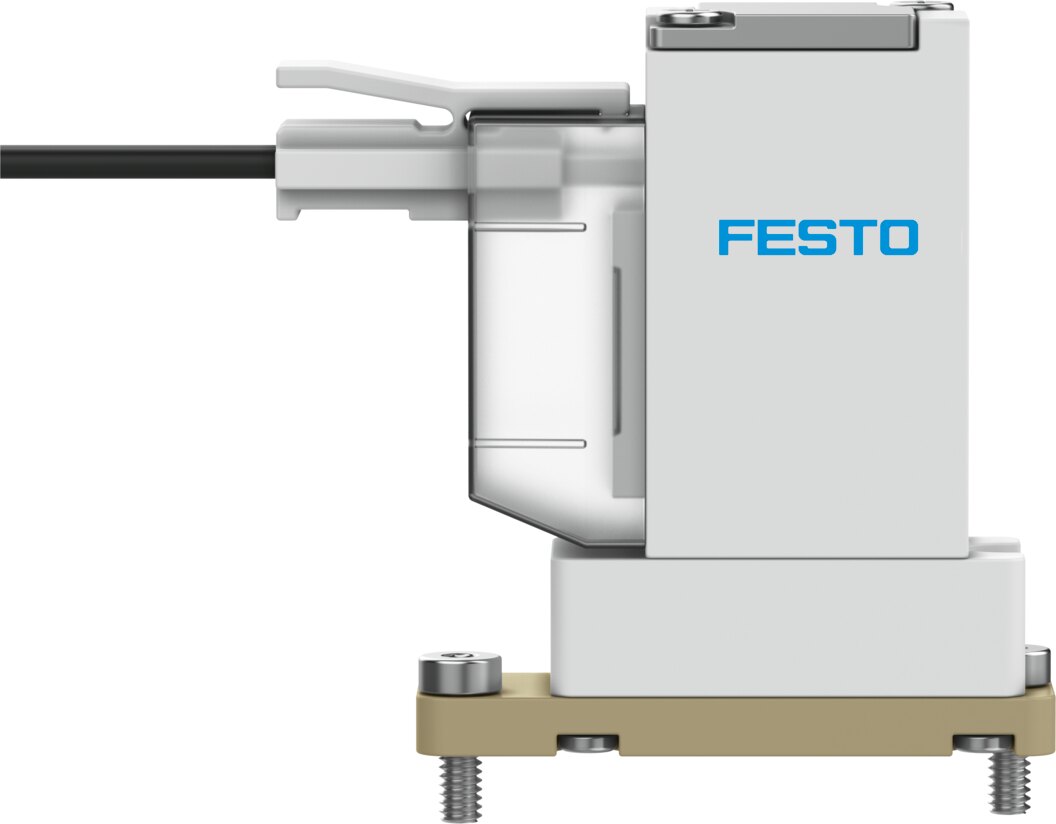

Media separated solenoid valve 3/2-way nominal size 1.6 mm FPM diaphragm 12 V DC VYKB-F10-M32-16-PV-5HPA - Festo 8122808

Festo ✓ Original product Brand new

Rocker valve with diaphragm seal where the medium touches only FPM and PEEK, the solenoid stays separated from the medium. Medium pressure -0.75 to 1 bar, vacuum included, Kv 0.034 m³/h, internal volume 35 µl. Coil 12 V DC with 3.7 W high-current and 1 W low-current phase.

Net
€137.31
excl. VAT
Item FES-8122808
Manufacturer no. VYKB-F10-M32-16-PV-5HPA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Inside the VYKB-F10-M32-16-PV-5HPA, a rocker mechanism works behind a diaphragm made of FPM. This keeps the actuator separate from the medium, the valve function is 3/2-way open/closed, the nominal size 1.6 mm.

Benefits

  • Wetted materials Fluoro rubber, PEEK, diaphragm and seals in FPM
  • Medium pressure -0.75 to 1 bar, overload pressure 3 bar
  • Flow rate Kv 0.034 m³/h, standard nominal flow rate 18 l/min
  • Internal volume 35 µl
  • Switching time 15 ms, switching frequency up to 2 Hz
  • Size 10, flange connection

Applications

Typical for dosing and analysis technology with media from 0 to 50 °C. Check the resistance of the wetted materials. Mounting via through-hole for M2 screw, degree of protection IP40.

Technical data

FeatureValue
TypeVYKB-F10-M32-16-PV-5HPA
Festo part number8122808
DesignRocker valve with diaphragm seal
Sealing principleSoft
Material in contact with the mediumFluoro rubber, PEEK
Valve function3/2-way, monostable, open/closed
Nominal size1.6 mm
Flow directionNon-reversible
Type of actuationElectrical
Type of pilotingDirect
Type of resetMechanical spring
Manual overrideNone
Mounting positionAny
Type of mountingVia through-hole for M2 screw
Electrical connection 1, connection typeCable with plug
Electrical connection 1, connector systemPlug pattern HP
Size10
Fluid connectionFlange
MediumLiquid media, gaseous media
Note on the mediumObserve resistance of materials that come into contact with the media, maximum particle size 5 µm
Internal volume35 µl
Media temperature0 to 50 °C
Media temperature for fluids0 to 50 °C
Ambient temperature0 to 50 °C
Storage temperature-20 to 70 °C
Medium pressure-0.75 to 1 bar
Overload pressure3 bar
Operational voltage range DC12 V
Permissible voltage fluctuations-5 % / +10 %
Characteristic coil data12 V DC: low-current phase 1 W, high-current phase 3.7 W
Duty cycle100%
Maximum switching frequency2 Hz
Note on switching frequencyDependent on the ambient temperature and installation state
Switching time on15 ms
Switching time on gaseous media15 ms
Switching time off15 ms
Switching time off gaseous media15 ms
Standard nominal flow rate (standardised to DIN 1343)18 l/min
Note on standard nominal flow rateIn case of a pressure drop of 1 - 0 bar (gaseous media)
Flow rate Kv0.034 m³/h
Note on flow rate KvFor water as medium, pressure difference 1 bar
Material housingPEEK
Material membraneFPM
Material sealsFPM
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Corrosion resistance class CRC0 - no corrosion stress
CE mark (see declaration of conformity)To EU EMC Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Weight (price list)0.026 kg
Weight0.026 kg
ManufacturerFesto
Hersteller-NrVYKB-F10-M32-16-PV-5HPA
EAN4052568556730
Zolltarifnummer84818087
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]1,6
Seal materialFPM
Function3/2 open/closed monostable
Flow rate [l/min]18
Actuation typeElectrical
Medientemperatur [°C]0 bis 50
Operating voltage12 V DC
Betriebsdruck max [bar]1
Pneumatic connectionFlange
Protection ratingIP40
Temperaturbereich0-50 °C
