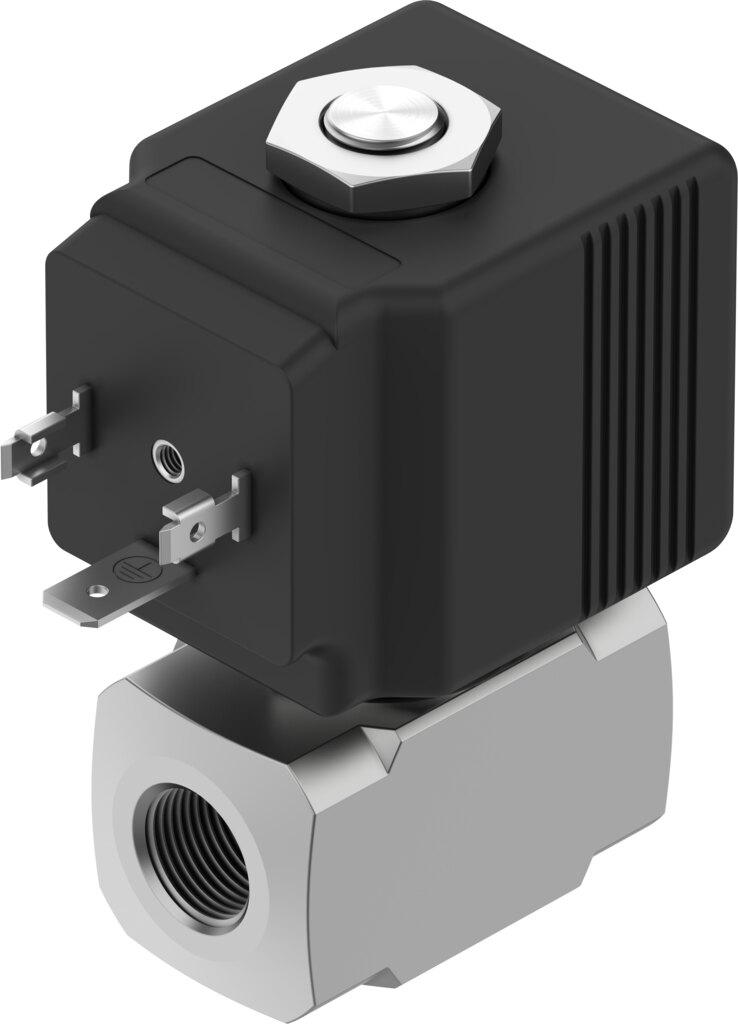

Solenoid valve VZWD-B-L-M22C-M-N14-30-V-36-1-A1-24-R1 - Festo 8214641
Item FES-8214641
€110.15
Images are examples, some edited with AI. The technical data are authoritative. AI notice

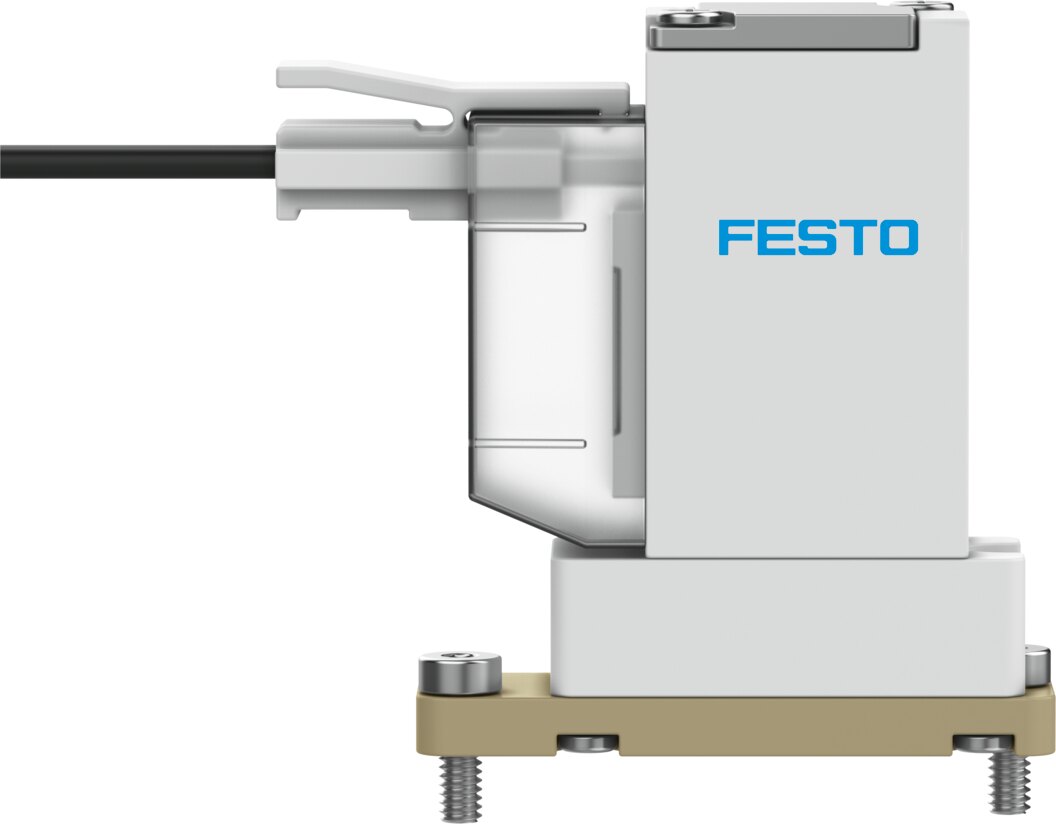

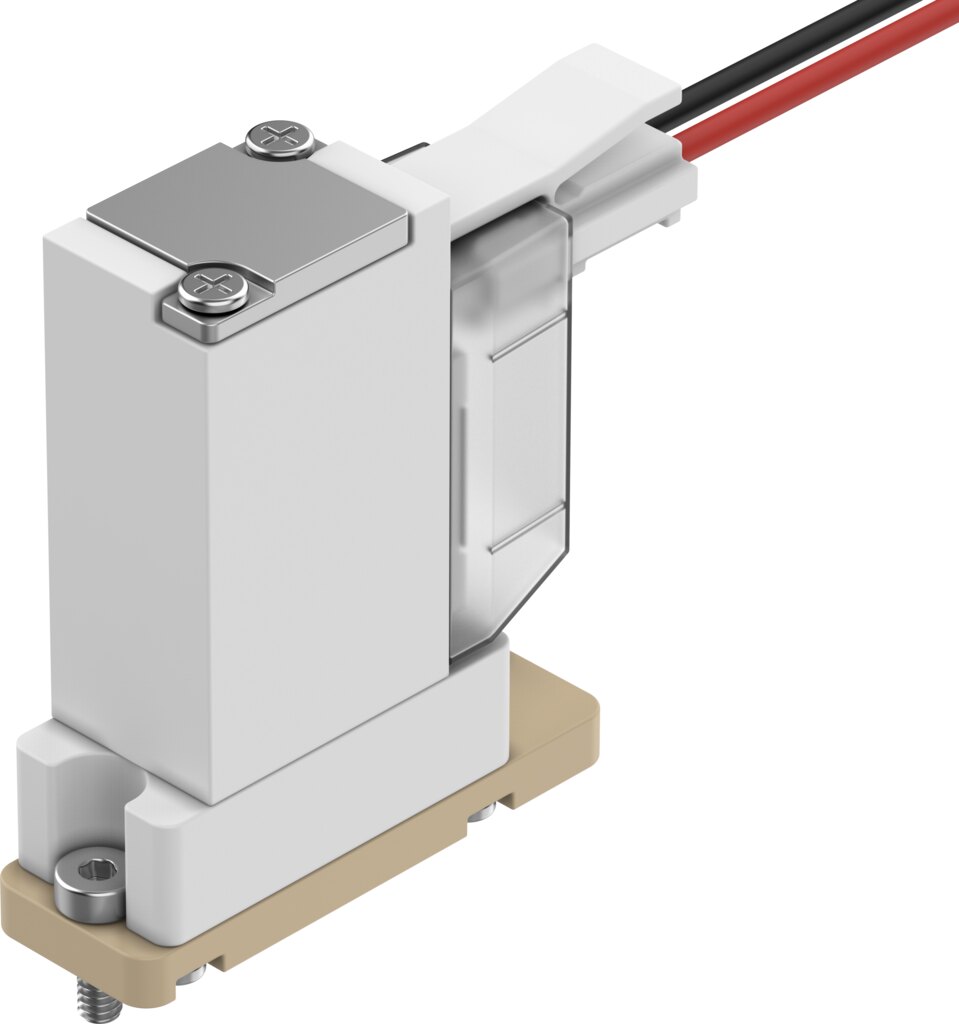

Media separated solenoid valve VYKB-F10-M22C-16-PE-5HPA - Festo 8122801
Net
excl. VAT
€126.74
Item
FES-8122801
Manufacturer no.
VYKB-F10-M22C-16-PE-5HPA
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Rocker valve with diaphragm seal |
|---|---|
| Sealing principle | Soft |
| Material in contact with the medium | PEEK |
| Valve function | 2/2-way, single solenoid, closed |
| Nominal size | 1.6 mm |
| Flow direction | Non-reversible |
| Type of actuation | Electrical |
| Type of piloting | Direct |
| Type of reset | Mechanical spring |
| Manual override | None |
| Mounting position | Any |
| Type of mounting | Via through-hole for M2 screw |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connector system | Plug pattern HP |
| Size | 10 |
| Fluid connection | Flange |
| Medium | Liquid media, Gaseous media |
| Note on the medium | Observe resistance of materials that come into contact with the media, Maximum particle size 5 µm |
| Internal volume | 35 µl |
| Media temperature | 0 ... 50 °C |
| Media temperature for fluids | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
| Storage temperature | -20 ... 70 °C |
| Medium pressure | -0.75 ... 1 bar |
| Overload pressure | 3 bar |
| Operational voltage range DC | 12 V |
| Permissible voltage fluctuations | -5 % / +10 % |
| Characteristic coil data | 12 V DC: low-current phase 1 W, high-current phase 3.7 W |
| Duty cycle | 100% |
| Max. switching frequency | 2 Hz |
| Note on switching frequency | Dependent on the ambient temperature and installation state |
| Switching time on | 15 ms |
| Switching time on gaseous media | 15 ms |
| Switching time off | 15 ms |
| Switching time off gaseous media | 15 ms |
| Standard nominal flow rate (standardised to DIN 1343) | 18 l/min |
| Note on standard nominal flow rate | In case of a pressure drop of 1 -> 0 bar (gaseous media) |
| Flow rate Kv | 0.57 l/min |
| Note on flow rate Kv | For water as medium, Pressure difference 1 bar |
| Material housing | PEEK |
| Material membrane | EPDM |
| Material seals | EPDM |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Product weight | 18 g |
| Degree of protection | IP40 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Weight | 0.026 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VYKB-F10-M22C-16-PE-5HPA |
| EAN | 4052568556662 |
| Zolltarifnummer | 84818087 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
