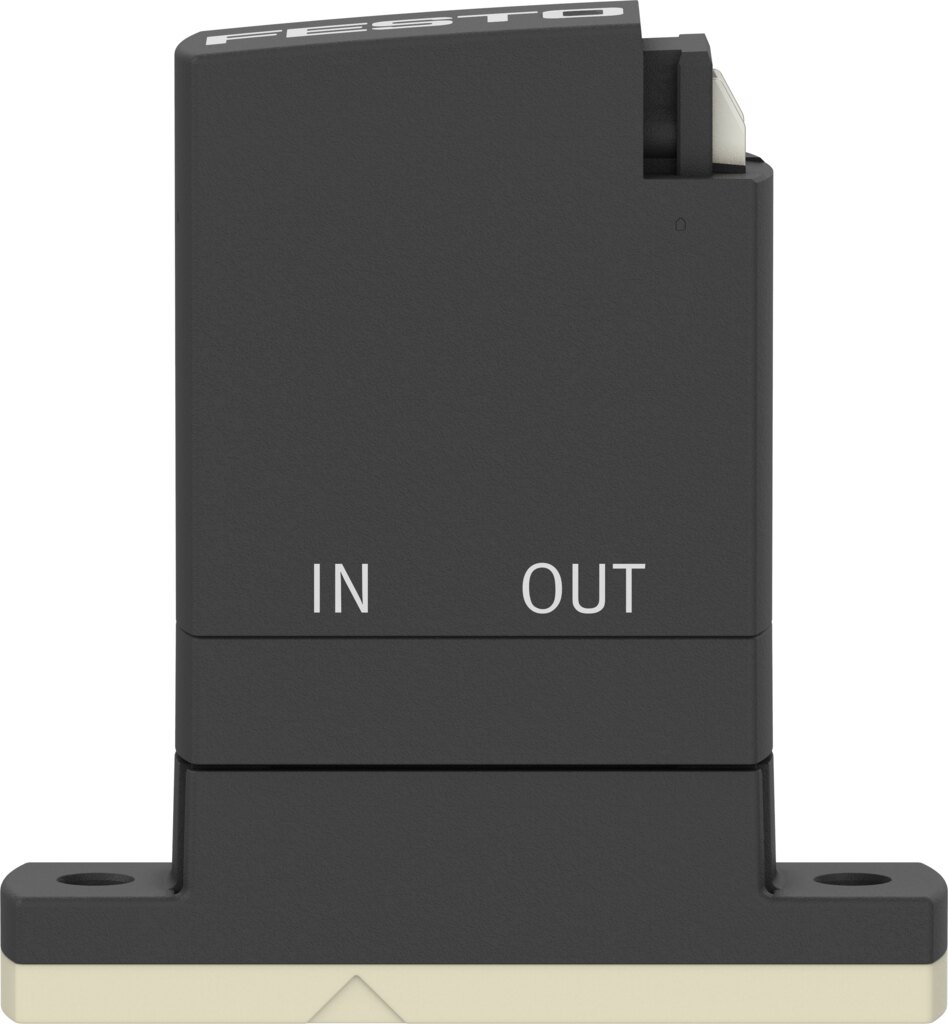

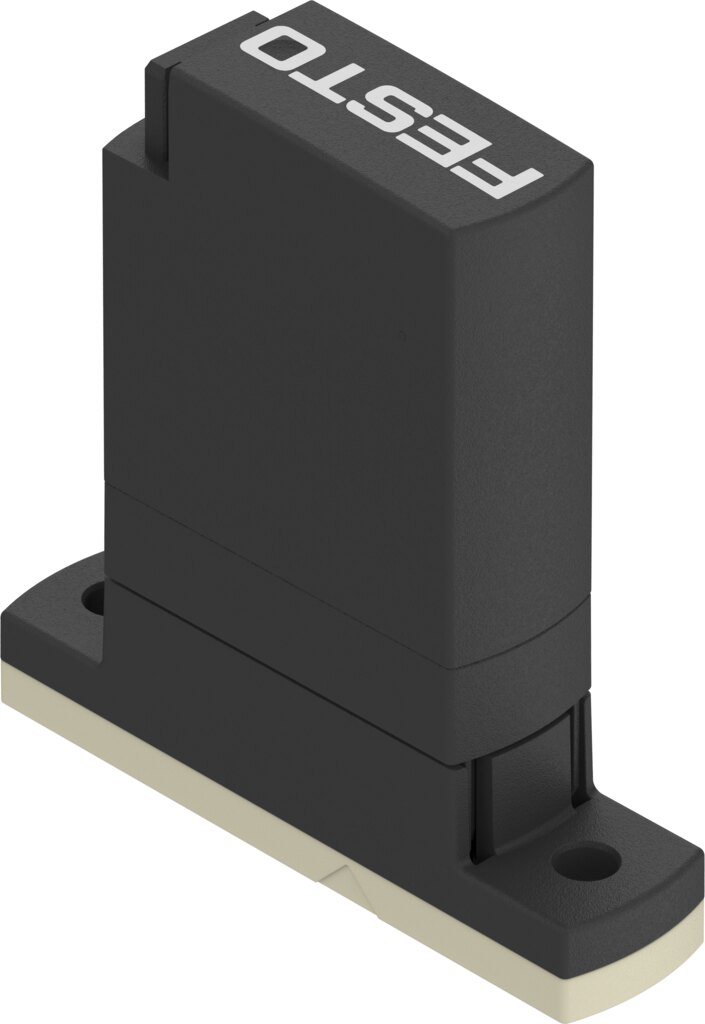

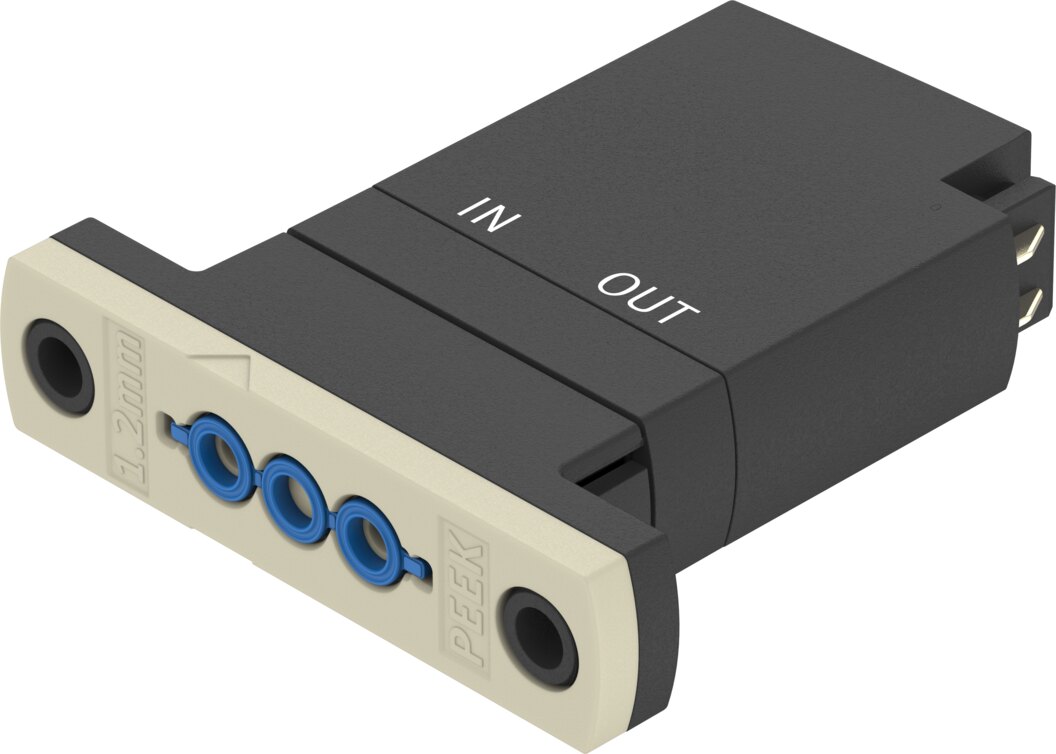

Media separated solenoid valve 2/2-way NC nominal size 1.2 mm FPM diaphragm 12 to 26 V DC VYKA-F7-M22C-12-PV-5YQ7 - Festo 8170087
Rocker valve with diaphragm seal where the medium touches only FPM and PEEK, the solenoid stays separated from the medium. Medium pressure -0.5 to 2 bar, vacuum included, Kv 0.018 m³/h. Coil 12 to 26 V DC with 2.2 W high-current and 0.06 W low-current phase.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The media separated solenoid valve VYKA-F7-M22C-12-PV-5YQ7 switches liquid and gaseous media normally closed. A rocker with a diaphragm seal made of FPM separates the fluid chamber from the solenoid, so the medium only contacts FPM and PEEK.
Benefits
- Wetted materials Fluoro rubber, PEEK, diaphragm and seals in FPM
- Medium pressure -0.5 to 2 bar, burst pressure 23 bar
- Flow rate Kv 0.018 m³/h, standard nominal flow rate 10 l/min
- Internal volume 18 µl fluid chamber valve, 24 µl valve with fluid connections
- Switching time 5 ms, switching frequency up to 6 Hz
- Size 7 with grid dimension 7.5 mm, flange connection
Applications
The VYKA fits analysis devices and dosing technology, media temperature 0 to 50 °C. Check the resistance of the wetted materials. Mounting via through-hole for M2 screw, degree of protection IP40.
Technical data
| Feature | Value |
|---|---|
| Type | VYKA-F7-M22C-12-PV-5YQ7 |
| Festo part number | 8170087 |
| Design | Rocker valve with diaphragm seal |
| Sealing principle | Soft |
| Material in contact with the medium | Fluoro rubber, PEEK |
| Suitable for use with food | See supplementary material information |
| Valve function | 2/2-way, single solenoid, closed |
| Nominal size | 1.2 mm |
| Flow direction | Reversible with restrictions |
| Type of actuation | Electrical |
| Type of piloting | Direct |
| Type of reset | Mechanical spring |
| Manual override | None |
| Mounting position | Any |
| Type of mounting | Via through-hole for M2 screw |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connector system | Plug pattern Q7 |
| Electrical connection 1, number of connections/cores | 2 |
| Electrical connection 1, connection pattern | 00997312 |
| Size | 7 |
| Grid dimension | 7.5 mm |
| Fluid connection | Flange |
| Medium | Liquid media, gaseous media |
| Note on the medium | Observe resistance of materials that come into contact with the media, maximum particle size 5 µm |
| Internal volume | 18 µl fluid chamber valve, 24 µl valve with fluid connections |
| Media temperature for fluids | 0 to 50 °C |
| Medium temperature gaseous media | 0 to 50 °C |
| Ambient temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Medium pressure | -0.5 to 2 bar |
| Note on the medium pressure | IN: -0.25 - 2 bar / -0.025 - 0.2 MPa / -3.625 - 29 psi, OUT: -0.5 - 1 bar / -0.05 - 0.1 MPa / -7.25 - 14.5 psi |
| Pressure difference | 2 bar |
| Burst pressure | 23 bar |
| Operational voltage range DC | 12 to 26 V |
| Note on operational voltage range DC | With electrical sub-base VAVE-K1-… |
| Permissible voltage fluctuations | ± 10% |
| Electrical power consumption | 3.5 W |
| Information on power consumption | Low-current phase 0.3 W, high-current phase 3.5 W for 60 ms, in combination with VAVE-K1-… |
| Characteristic coil data | 12 - 26 V DC: low-current phase 0.06 W, high-current phase 2.2 W |
| Insulation material class | B |
| Duty cycle | 100% in conjunction with holding current reduction, observe the notes on operating the solenoid valves |
| Maximum switching frequency | 6 Hz |
| Switch-on time for fluids | 5 ms |
| Switching time on gaseous media | 5 ms |
| Note on switching time | Switching time depends on medium, temperature, medium pressure and individual operating conditions |
| Standard nominal flow rate (standardised to DIN 1343) | 10 l/min |
| Note on standard nominal flow rate | In case of a pressure drop of 1 - 0 bar (gaseous media) |
| Flow rate Kv | 0.018 m³/h |
| Note on flow rate Kv | For water as medium, pressure difference 1 bar |
| Water flow rate at max operating pressure | 0.45 l/min |
| Material housing | PEEK, reinforced PPA |
| Material membrane | FPM |
| Material seals | FPM |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP40 |
| Note on degree of protection | In mounted state |
| Instructions on use | For indoor use only |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VYKA-F7-M22C-12-PV-5YQ7 |
| EAN | 4052568614522 |
| Zolltarifnummer | 84818087 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 1,2 |
| Seal material | FPM |
| Function | 2/2 closed monostable |
| Flow rate [l/min] | 10 |
| Actuation type | Electrical |
| Medientemperatur [°C] | 0 bis 50 |
| Betriebsdruck max [bar] | 2 |
| Pneumatic connection | Flange |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
