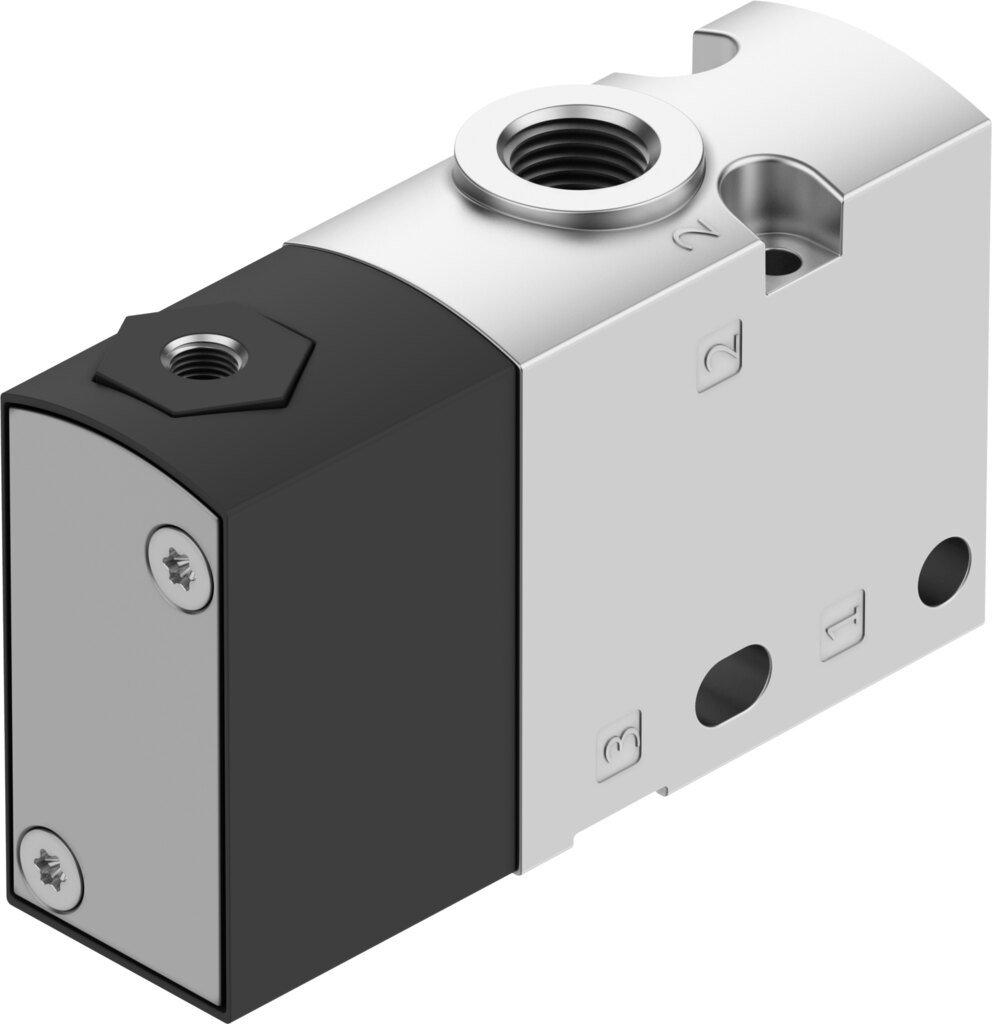

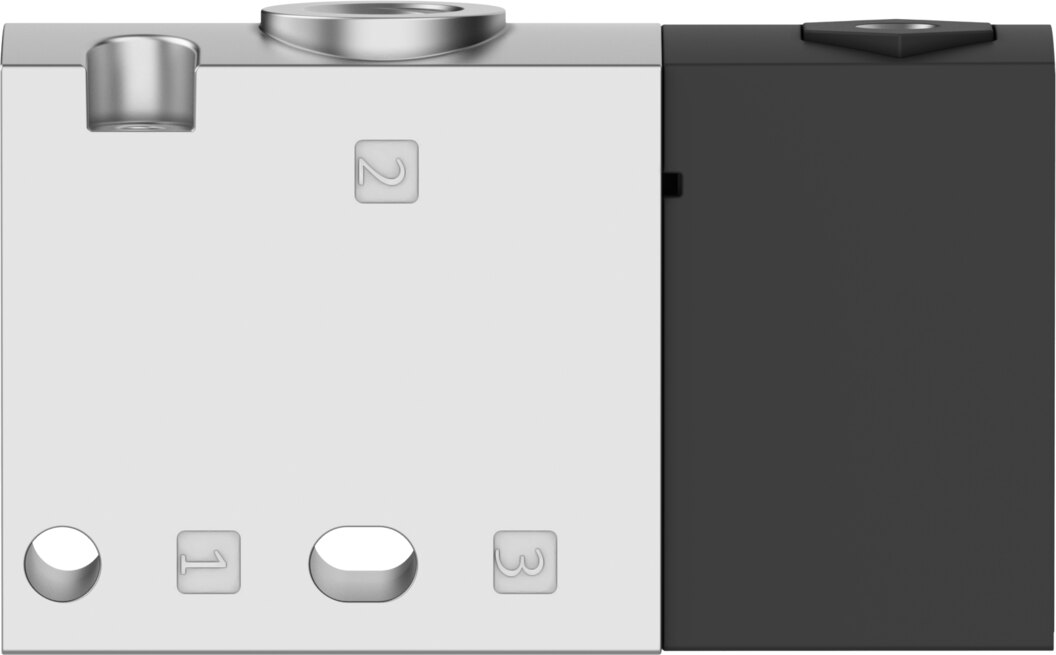

Pneumatic valve 5/2-way monostable 1/8 NPT ATEX VUWS-LT20-M32U-M-N18 - Festo 577533

Festo ✓ Original product Brand new

Pneumatic valve VUWS-LT20-M32U-M-N18 as a 5/2-way valve (monostable) with 600 l/min standard nominal flow rate for controlling pneumatic actuators. With -0.9 to 10 bar operating pressure, 1/8 NPT ports and 21 mm valve size. Suitable for ATEX zones 1, 2, 21, 22.

Net
€44.40
excl. VAT
Item FES-577533
Manufacturer no. VUWS-LT20-M32U-M-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As a 5/2-way valve (monostable), the Festo pneumatic valve VUWS-LT20-M32U-M-N18 delivers 600 l/min standard nominal flow rate at -0.9 to 10 bar operating pressure. The design is direct-acting with internal pilot air and comes with 1/8 NPT ports, 21 mm valve size and 1.5 to 10 bar pilot pressure.

Benefits

  • Flow: 600 l/min standard nominal flow rate at 21 mm valve size
  • Pressure range: -0.9 to 10 bar, vacuum included
  • Switching times: 6 ms on, 18 ms off
  • Explosion protection: ATEX zones 1, 2, 21, 22
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: corrosion resistance class 2

Applications

The VUWS-LT20-M32U-M-N18 controls double-acting cylinders and rotary actuators in machines and systems. In hazardous areas the VUWS-LT20-M32U-M-N18 is designed for ATEX zones 1, 2, 21, 22, the information in the certificate must be observed. The VUWS-LT20-M32U-M-N18 is actuated pneumatically via the pilot ports, pilot pressure 1.5 to 10 bar. The VUWS-LT20-M32U-M-N18 is mounted on manifold rail, with through-hole. Operating medium for the VUWS-LT20-M32U-M-N18: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUWS-LT20-M32U-M-N18
Festo part number577533
Valve function5/2-way, monostable
Type of actuationpneumatic
Valve size21 mm
Standard nominal flow rate600 l/min
pneumatic working port1/8 NPT
Operating pressure-0.9 to 10 bar
Designpoppet seat
Reset methodmechanical spring
Approvalc UL us - Recognized (OL)
Nominal size5.2 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridenone
Type of pilotingdirect
Pilot air supplyinternal
Flow directionnon-reversible
Overlapnegative overlap
Pilot pressure1.5 to 10 bar
Switching time off18 ms
Switching time on6 ms
Explosion protectionobserve the information in the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 60 °C
Product weight111 g
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pilot air port 1010-32 UNF-2B
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Note on materialsRoHS compliant
Material sealsHNBR, NBR, TPE-U(PU)
Material housingpainted
Material screwsgalvanised steel
ManufacturerFesto
Hersteller-NrVUWS-LT20-M32U-M-N18
EAN4052568382322
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/8
Nominal size DN [mm]5,2
Seal materialHNBR, NBR, TPE-U(PU)
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]600
Actuation typepneumatic
SeriesVUWS
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-5-60 °C
Temperature (max.)60
