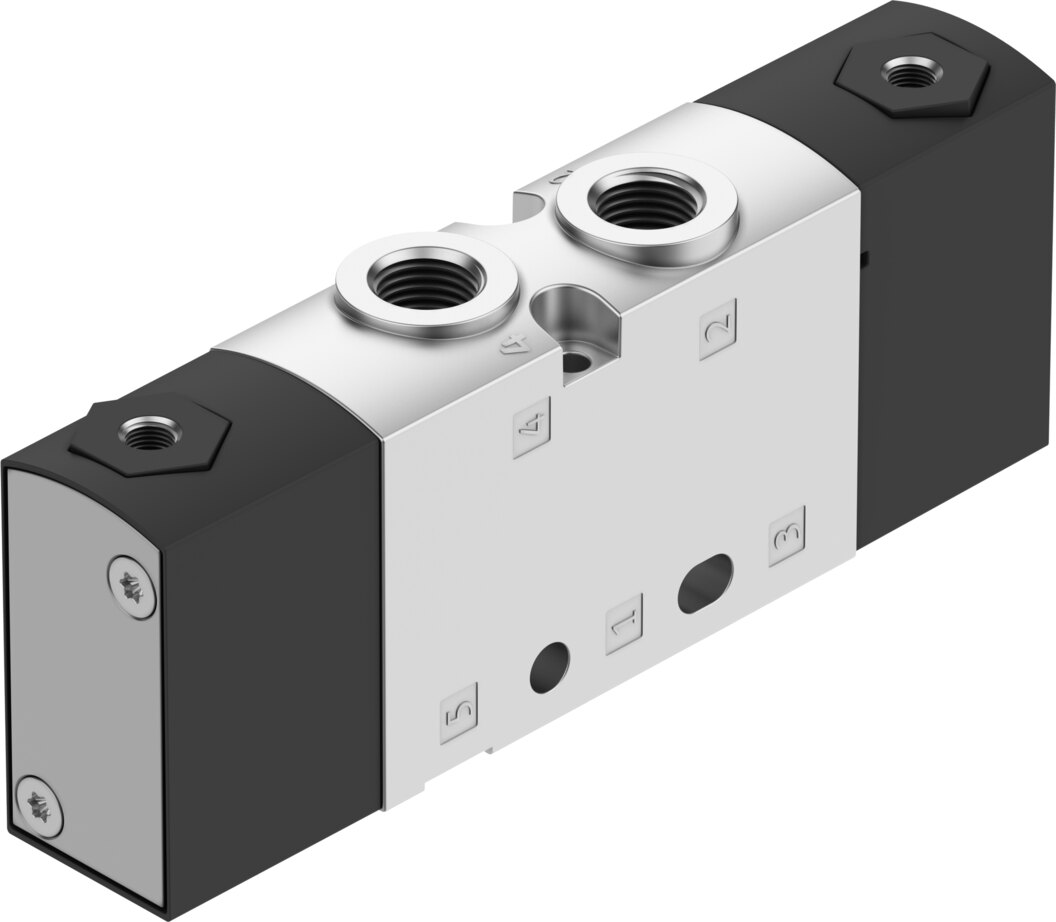

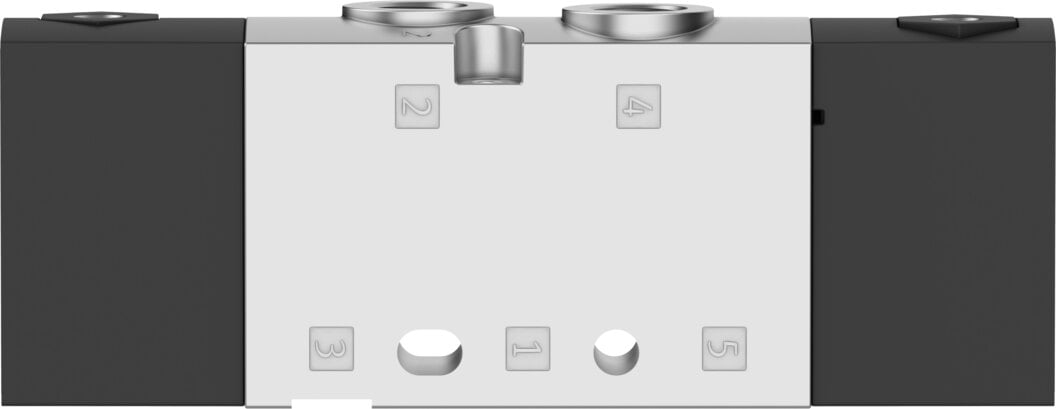

Pneumatic valve 5/2-way bistable 1/8 NPT ATEX VUWS-LT20-B52-N18 - Festo 577535
The VUWS-LT20-B52-N18 switches compressed air as a 5/2-way valve (bistable) and reaches 500 l/min standard nominal flow rate. Ratings: 1.5 to 10 bar operating pressure, 1/8 NPT ports and 21 mm valve size. Suitable for ATEX zones 1, 2, 21, 22.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As a 5/2-way valve (bistable), the Festo pneumatic valve VUWS-LT20-B52-N18 delivers 500 l/min standard nominal flow rate at 1.5 to 10 bar operating pressure. It also offers 1/8 NPT ports, 21 mm valve size and 1.5 to 10 bar pilot pressure.
Key benefits
- Flow: 500 l/min standard nominal flow rate at 21 mm valve size
- Pressure range: 1.5 to 10 bar
- Explosion protection: ATEX zones 1, 2, 21, 22
- Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
- Environment: corrosion resistance class 2
- Temperature: -10 to 60 °C ambient
Applications
Typical use of the VUWS-LT20-B52-N18: controlling double-acting cylinders and actuators. As a bistable valve it keeps the last switching position even without an applied signal. In hazardous areas the VUWS-LT20-B52-N18 is designed for ATEX zones 1, 2, 21, 22, the information in the certificate must be observed. The VUWS-LT20-B52-N18 is actuated pneumatically via the pilot ports, pilot pressure 1.5 to 10 bar. The VUWS-LT20-B52-N18 is mounted on manifold rail, with through-hole. Operating medium for the VUWS-LT20-B52-N18: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | VUWS-LT20-B52-N18 |
|---|---|
| Festo part number | 577535 |

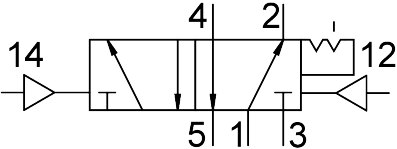

| Valve function | 5/2-way, bistable |
| Type of actuation | pneumatic |
| Valve size | 21 mm |
| Standard nominal flow rate | 500 l/min |
| pneumatic working port | 1/8 NPT |
| Operating pressure | 1.5 to 10 bar |
| Design | poppet seat |
| Approval | c UL us - Recognized (OL) |
| Nominal size | 5 mm |
| Exhaust-air function | can be throttled |
| Sealing principle | soft |
| Mounting position | any |
| Manual override | none |
| Type of piloting | direct |
| Pilot air supply | internal |
| Flow direction | non-reversible |
| Overlap | negative overlap |
| Pilot pressure | 1.5 to 10 bar |
| Switching time reversal | 4 ms |
| Explosion protection | observe the information in the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | class 6 according to ISO 14644-1 |
| Media temperature | -10 to 60 °C |
| Pilot medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 to 60 °C |
| Product weight | 156 g |
| Type of mounting | on manifold rail, with through-hole |
| Breather connection | not ducted |
| Pilot air port 12 | 10-32 UNF-2B |
| Pilot air port 14 | 10-32 UNF-2B |
| Pneumatic connection, port 1 | 1/8 NPT |
| Pneumatic connection, port 2 | 1/8 NPT |
| Pneumatic connection, port 3 | 1/8 NPT |
| Pneumatic connection, port 4 | 1/8 NPT |
| Pneumatic connection, port 5 | 1/8 NPT |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR, TPE-U(PU) |
| Material housing | painted |
| Material screws | galvanised steel |
| Manufacturer | Festo |
| Hersteller-Nr | VUWS-LT20-B52-N18 |
| EAN | 4052568382346 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | NPT 1/8 |
| Nominal size DN [mm] | 5 |
| Seal material | HNBR, NBR, TPE-U(PU) |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Flow rate [l/min] | 500 |
| Actuation type | pneumatic |
| Series | VUWS |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
