2x 3/2-way solenoid valve NC, 600 l/min, width 10 mm, for sub-base, 24 V DC VUVX-BK10-T32C-MZH-F-1T1L - Festo 8187061
The Festo solenoid valve VUVX-BK10-T32C-MZH-F-1T1L switches compressed air and inert gases in the range 0 to 7 bar. Standard nominal flow rate 600 l/min, switching time 14 ms on and 17 ms off, mounting on sub-base. Coil 24 V DC: 0.35 W.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo solenoid valve VUVX-BK10-T32C-MZH-F-1T1L achieves 600 l/min standard nominal flow rate at operating pressure 0 to 7 bar. Design: piston spool with sealing ring.
Key benefits
- Operating pressure 0 to 7 bar
- Standard nominal flow rate 600 l/min
- Switching time 14 ms on, 17 ms off, up to 3 Hz switching frequency
- Width 10 mm
- Food suitability NSF H1
- Coil 24 V DC: 0.35 W, 100 % duty cycle
Applications
The VUVX-BK10-T32C-MZH-F-1T1L can switch compressed air and inert gases. Installing the VUVX-BK10-T32C-MZH-F-1T1L: on sub-base, mounting position any, manual override non-detenting, electrical connection plug-in. The VUVX-BK10-T32C-MZH-F-1T1L operates at an ambient temperature of -5 to 50 °C and a medium temperature of -5 to 50 °C.
Technical data
| Feature | Value |
|---|---|
| Type | VUVX-BK10-T32C-MZH-F-1T1L |
| Festo part number | 8187061 |

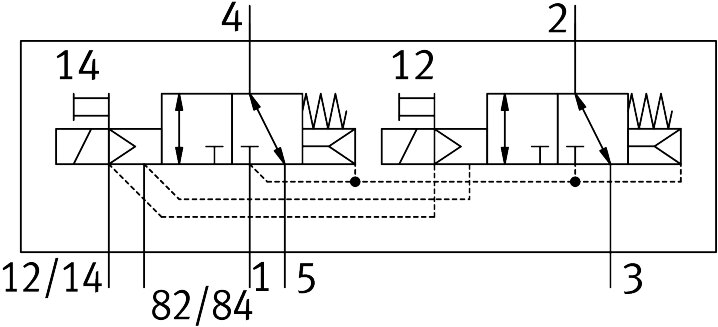

| Valve function | 2x3/2 closed monostable |
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Nominal flow rate to ISO 8778 | 600 l/min |
| Operating voltage | 24 V DC |
| Operating pressure | 0 to 7 bar |
| Design | Piston spool with sealing ring |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 |
| Width | 10.35 mm |
| Nominal size | 3.8 mm |
| Exhaust function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Reversible |
| Overlap | Underlap |
| Signal status display | Yes |
| Pilot pressure | 2 to 7 bar |
| Vacuum suitability | No |
| B value | 0.34 |
| C value | 2.3 l/sbar |
| Nominal flow rate to ISO 8778, exhaust 2-3 | 650 l/min |
| Max. switching frequency | 3 Hz |
| Switching time off | 17 ms |
| Switching time on | 14 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1400 µs |
| Max. negative test pulse with 1 signal | 800 µs |
| Characteristic coil data | 24 V DC: 0.35 W |
| Permissible voltage fluctuations | +/-10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Ester oil below 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| PWIS conformity | VDMA24364 zone III |
| Storage temperature | -20 to 70 °C |
| Food suitability | NSF H1 |
| Medium temperature | -5 to 50 °C |
| Relative humidity | 5 - 95% |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Ambient temperature | -5 to 50 °C |
| Max. tightening torque, valve mounting | 0.345 Nm |
| Electrical connection | Plug-in |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base |
| Pilot exhaust port 82/84 | Sub-base |
| Pneumatic connection 1 | Sub-base |
| Pneumatic connection 2 | Sub-base |
| Pneumatic connection 3 | Sub-base |
| Pneumatic connection 4 | Sub-base |
| Pneumatic connection 5 | Sub-base |
| Note on materials | RoHS compliant |
| Material seals | HNBR |
| Material dynamic seals | HNBR |
| Material housing | Anodised wrought aluminium alloy |
| Material spring | High-alloy stainless steel |
| Material piston spool | POM |
| Material screws | Stainless steel |
| Weight | 0.065 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVX-BK10-T32C-MZH-F-1T1L |
| EAN | 4052568637941 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Nominal size DN [mm] | 3,8 |
| Seal material | HNBR |
| Housing material | Aluminium, anodised |
| Function | 2x3/2 closed monostable |
| Flow rate [l/min] | 600 |
| Actuation type | Electrical |
| Medientemperatur [°C] | -5 bis 50 |
| Betriebsdruck max [bar] | 7 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
