2x 3/2-way solenoid valve NC, 600 l/min, width 10 mm, for sub-base, 24 V DC VUVX-BK10-T32C-A1ZH-F-1T1L - Festo 8187060

Festo ✓ Original product Brand new

The Festo solenoid valve VUVX-BK10-T32C-A1ZH-F-1T1L is designed for compressed air and inert gases at operating pressure 1.5 to 7 bar. Standard nominal flow rate 600 l/min, switching time 12 ms on and 22 ms off, mounting on sub-base. Housing anodised wrought aluminium alloy, HNBR seals.

Net
€82.03
excl. VAT
Item FES-8187060
Manufacturer no. VUVX-BK10-T32C-A1ZH-F-1T1L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo solenoid valve VUVX-BK10-T32C-A1ZH-F-1T1L achieves 600 l/min standard nominal flow rate at operating pressure 1.5 to 7 bar. Design: piston spool with sealing ring.

Benefits

  • Operating pressure 1.5 to 7 bar
  • Standard nominal flow rate 600 l/min
  • Switching time 12 ms on, 22 ms off, up to 5 Hz switching frequency
  • Coil 24 V DC: 0.35 W, 100 % duty cycle
  • Housing material anodised wrought aluminium alloy, seals HNBR
  • Degree of protection IP65, corrosion resistance class CRC 1

Use and installation

Approved media for the VUVX-BK10-T32C-A1ZH-F-1T1L: compressed air and inert gases. Installation of the VUVX-BK10-T32C-A1ZH-F-1T1L: on sub-base, mounting position any, manual override non-detenting, electrical connection plug-in. The VUVX-BK10-T32C-A1ZH-F-1T1L operates at an ambient temperature of -5 to 50 °C and a medium temperature of -5 to 50 °C.

Technical data

FeatureValue
TypeVUVX-BK10-T32C-A1ZH-F-1T1L
Festo part number8187060

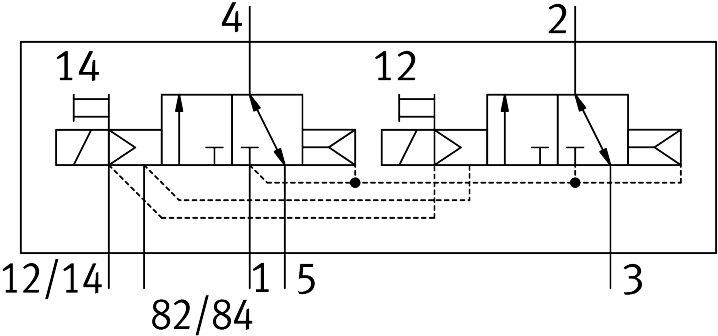

Valve function2x3/2 closed monostable
Type of actuationElectrical
Valve size10 mm
Nominal flow rate to ISO 8778600 l/min
Operating voltage24 V DC
Operating pressure1.5 to 7 bar
DesignPiston spool with sealing ring
Type of resetPneumatic spring
Degree of protectionIP65
Width10.35 mm
Nominal size3.8 mm
Exhaust functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideNon-detenting
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionNon-reversible
OverlapUnderlap
Signal status displayYes
Pilot pressure1.5 to 7 bar
Vacuum suitabilityNo
B value0.34
C value2.3 l/sbar
Nominal flow rate to ISO 8778, exhaust 2-3650 l/min
Max. switching frequency5 Hz
Switching time off22 ms
Switching time on12 ms
Duty cycle100%
Max. positive test pulse with 0 signal1400 µs
Max. negative test pulse with 1 signal800 µs
Characteristic coil data24 V DC: 0.35 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumEster oil below 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC1 - Low corrosion stress
PWIS conformityVDMA24364 zone III
Storage temperature-20 to 70 °C
Food suitabilityNSF H1
Medium temperature-5 to 50 °C
Relative humidity5 - 95%
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Ambient temperature-5 to 50 °C
Max. tightening torque, valve mounting0.345 Nm
Electrical connectionPlug-in
Type of mountingOn sub-base
Pilot air port 12/14Sub-base
Pilot exhaust port 82/84Sub-base
Pneumatic connection 1Sub-base
Pneumatic connection 2Sub-base
Pneumatic connection 3Sub-base
Pneumatic connection 4Sub-base
Pneumatic connection 5Sub-base
Note on materialsRoHS compliant
Material sealsHNBR
Material dynamic sealsHNBR
Material housingAnodised wrought aluminium alloy
Material springHigh-alloy stainless steel
Material piston spoolPOM
Material screwsStainless steel
Weight0.06 kg
ManufacturerFesto
Hersteller-NrVUVX-BK10-T32C-A1ZH-F-1T1L
EAN4052568637934
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
Nominal size DN [mm]3,8
Seal materialHNBR
Housing materialAluminium, anodised
Function2x3/2 closed monostable
Flow rate [l/min]600
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
Betriebsdruck max [bar]7
Protection ratingIP65
Temperature (max.)50
