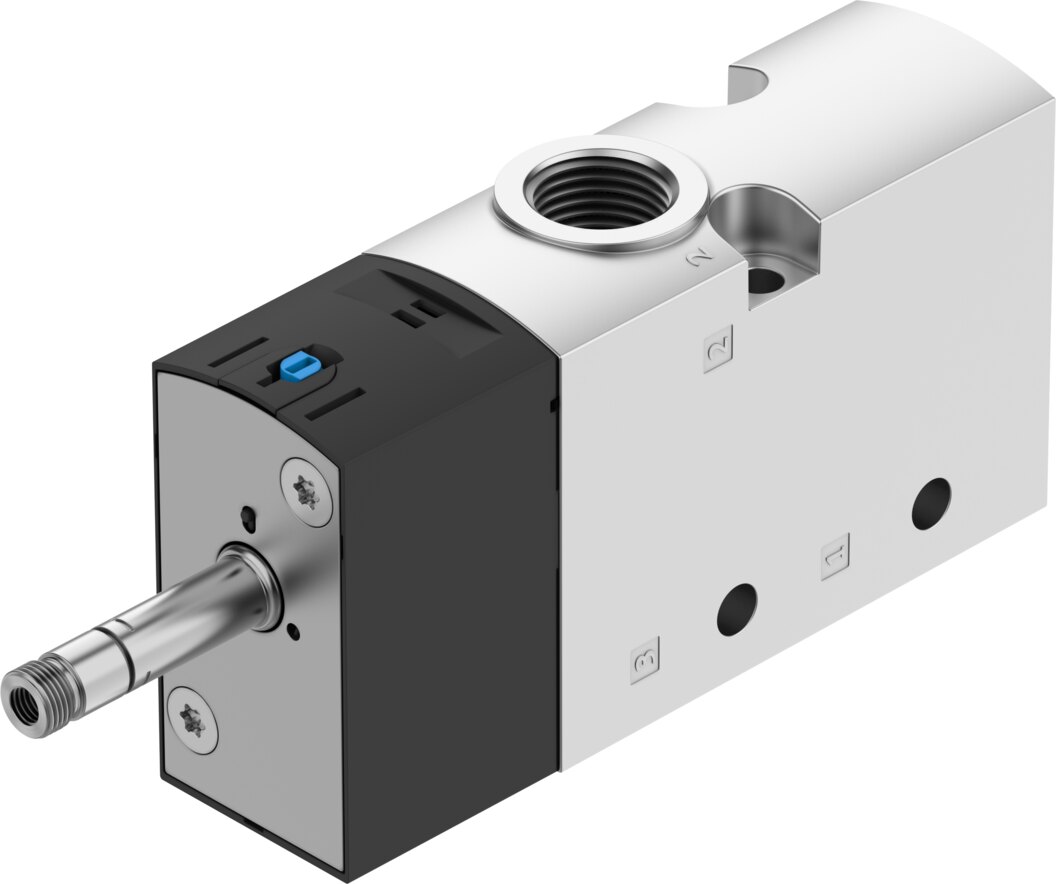

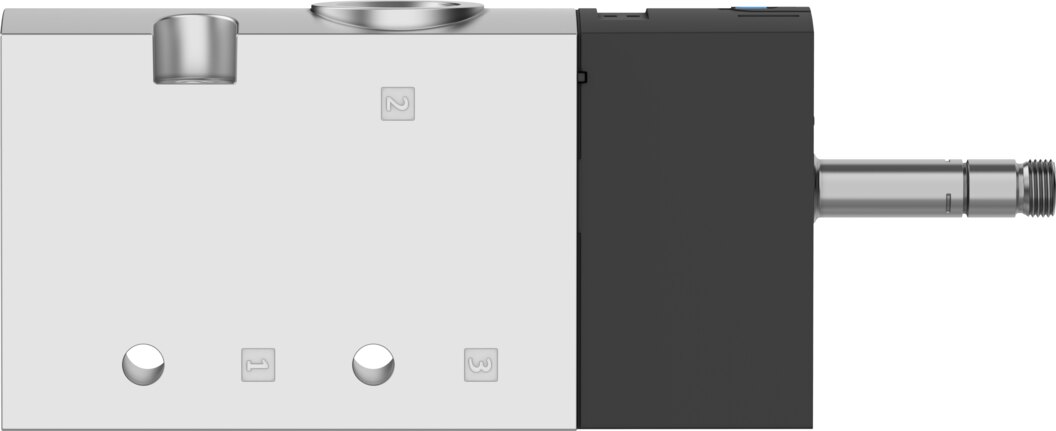

Solenoid valve 3/2-way normally open 3/8 NPT VUVS-LT30-M32U-MD-N38-F8 - Festo 8036723

Festo ✓ Original product Brand new

As a 3/2-way valve (normally open, monostable), the Festo solenoid valve VUVS-LT30-M32U-MD-N38-F8 delivers 1600 l/min standard nominal flow rate. Designed for 2.5 to 10 bar operating pressure, 3/8 NPT ports and 31 mm valve size. Switches on in 14 ms and off in 36 ms.

Net
€71.27
excl. VAT
Item FES-8036723
Manufacturer no. VUVS-LT30-M32U-MD-N38-F8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

1600 l/min standard nominal flow rate at 2.5 to 10 bar operating pressure: the Festo solenoid valve VUVS-LT30-M32U-MD-N38-F8 works as a 3/2-way valve (normally open, monostable). It also offers 3/8 NPT ports and 31 mm valve size.

Benefits

  • Flow: 1600 l/min standard nominal flow rate at 31 mm valve size
  • Pressure range: 2.5 to 10 bar
  • Switching times: 14 ms on, 36 ms off
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: corrosion resistance class 2
  • Temperature: -10 to 60 °C ambient

Applications

Typical tasks for the VUVS-LT30-M32U-MD-N38-F8 are single-acting cylinders, blow air and piloting larger valves. The solenoid coil is not included with the VUVS-LT30-M32U-MD-N38-F8 and is ordered separately. The VUVS-LT30-M32U-MD-N38-F8 is mounted on manifold rail, with through-hole. The VUVS-LT30-M32U-MD-N38-F8 operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-LT30-M32U-MD-N38-F8
Festo part number8036723
Valve function3/2-way, normally open, monostable
Type of actuationelectrical
Valve size31 mm
Standard nominal flow rate1600 l/min
pneumatic working port3/8 NPT
Operating voltagevia solenoid coil, must be ordered separately
Operating pressure2.5 to 10 bar
Designpoppet seat
Reset methodmechanical spring
Approvalc UL us - Recognized (OL)
Nominal size7.9 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlapnegative overlap
b value0.2
C value7 l/sbar
Switching time off36 ms
Switching time on14 ms
Max. positive test pulse with 0 signal2000 µs
Max. negative test pulse with 1 signal3600 µs
Coil characteristicssee solenoid coil, to be ordered separately
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 60 °C
Product weight305 g
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pilot exhaust port 8210-32 UNF-2B
Pneumatic connection, port 13/8 NPT
Pneumatic connection, port 23/8 NPT
Pneumatic connection, port 33/8 NPT
Note on materialsRoHS compliant
Material sealsHNBR, NBR, TPE-U(PU)
Material housingdie-cast aluminium, painted
Material piston slidewrought aluminium alloy
Material screwsgalvanised steel
ManufacturerFesto
Hersteller-NrVUVS-LT30-M32U-MD-N38-F8
EAN4052568429973
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 3/8
Nominal size DN [mm]7,9
Seal materialHNBR, NBR, TPE-U(PU)
MediumCompressed air
Function3/2 open monostable
Flow rate [l/min]1600
Actuation typeElectrical
SeriesVUVS
Betriebsdruck max [bar]10
Pneumatic connectionNPT 3/8
Temperaturbereich-10-60 °C
Temperature (max.)60
