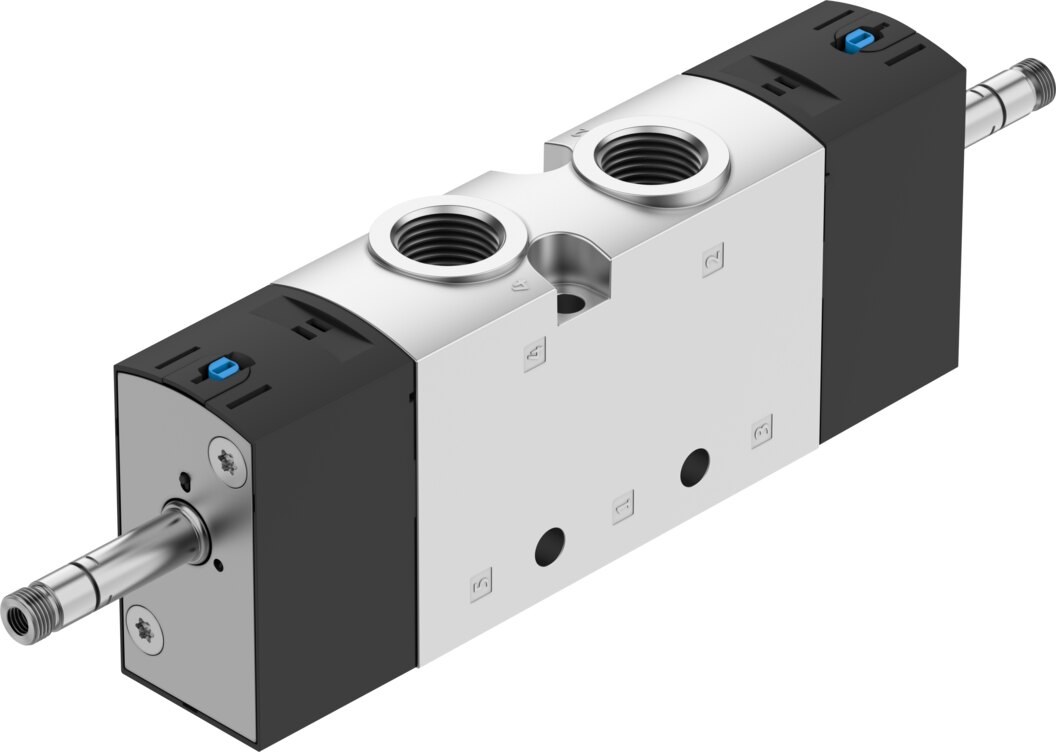

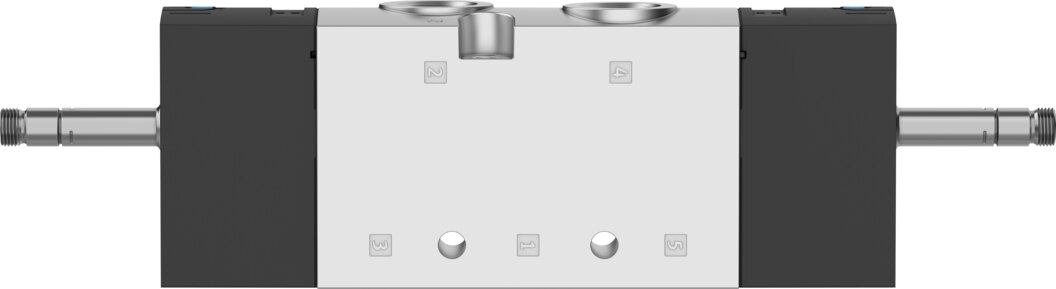

Solenoid valve 5/2-way bistable 3/8 NPT VUVS-LT30-B52-D-N38-F8 - Festo 8036727

Festo ✓ Original product Brand new

Solenoid valve VUVS-LT30-B52-D-N38-F8 as a 5/2-way valve (bistable) with 1800 l/min standard nominal flow rate for controlling pneumatic actuators. Designed for 1.5 to 10 bar operating pressure, 3/8 NPT ports and 31 mm valve size. Cleanroom suitable to ISO 14644-1 class 6.

Net
€99.06
excl. VAT
Item FES-8036727
Manufacturer no. VUVS-LT30-B52-D-N38-F8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVS-LT30-B52-D-N38-F8 works as a 5/2-way valve (bistable) and reaches 1800 l/min standard nominal flow rate at 1.5 to 10 bar operating pressure. The design is piloted with internal pilot air and comes with 3/8 NPT ports and 31 mm valve size.

Key benefits

  • Flow: 1800 l/min standard nominal flow rate at 31 mm valve size
  • Pressure range: 1.5 to 10 bar
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: corrosion resistance class 2
  • Temperature: -10 to 60 °C ambient

Applications

The VUVS-LT30-B52-D-N38-F8 controls double-acting cylinders and rotary actuators in machines and systems. As a bistable valve it keeps the last switching position even without an applied signal. Please order the solenoid coil for the VUVS-LT30-B52-D-N38-F8 separately. Mounting of the VUVS-LT30-B52-D-N38-F8: on manifold rail, with through-hole. Operating medium for the VUVS-LT30-B52-D-N38-F8: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-LT30-B52-D-N38-F8
Festo part number8036727

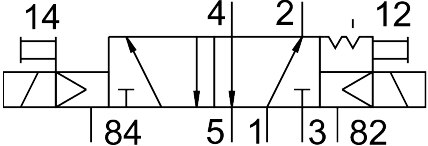

Valve function5/2-way, bistable
Type of actuationelectrical
Valve size31 mm
Standard nominal flow rate1800 l/min
pneumatic working port3/8 NPT
Operating voltagevia solenoid coil, must be ordered separately
Operating pressure1.5 to 10 bar
Designpoppet seat
Approvalc UL us - Recognized (OL)
Nominal size8.7 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlapnegative overlap
b value0.3
C value9.9 l/sbar
Switching time reversal13 ms
Max. positive test pulse with 0 signal2000 µs
Max. negative test pulse with 1 signal3600 µs
Coil characteristicssee solenoid coil, to be ordered separately
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 60 °C
Product weight438 g
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pilot exhaust port 8210-32 UNF-2B
Pilot exhaust port 8410-32 UNF-2B
Pneumatic connection, port 13/8 NPT
Pneumatic connection, port 23/8 NPT
Pneumatic connection, port 33/8 NPT
Pneumatic connection, port 43/8 NPT
Pneumatic connection, port 53/8 NPT
Note on materialsRoHS compliant
Material sealsHNBR, NBR, TPE-U(PU)
Material housingdie-cast aluminium, painted
Material piston slidePOM
Material screwsgalvanised steel
ManufacturerFesto
Hersteller-NrVUVS-LT30-B52-D-N38-F8
EAN4052568430016
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 3/8
Nominal size DN [mm]8,7
Seal materialHNBR, NBR, TPE-U(PU)
MediumCompressed air
Function5/2 bistable
Flow rate [l/min]1800
Actuation typeElectrical
SeriesVUVS
Betriebsdruck max [bar]10
Pneumatic connectionNPT 3/8
Temperaturbereich-10-60 °C
Temperature (max.)60
