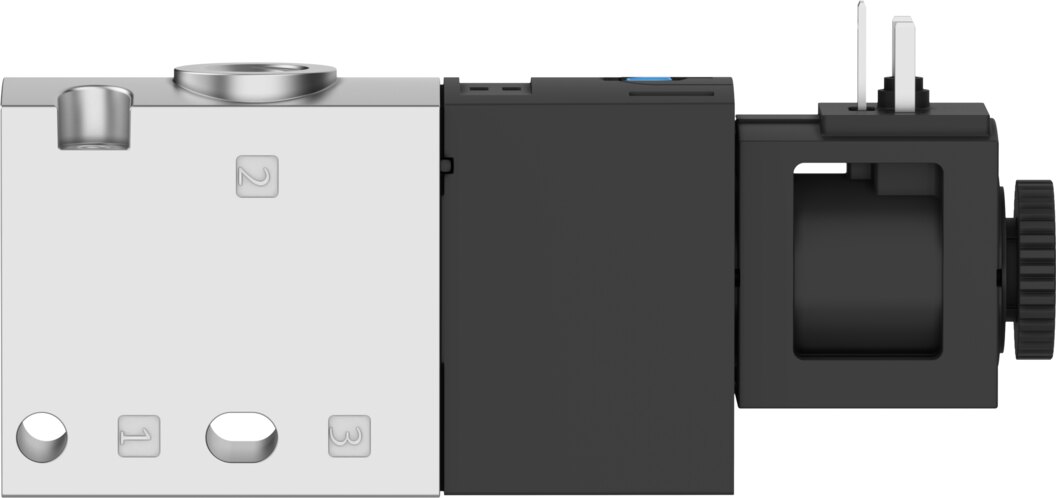

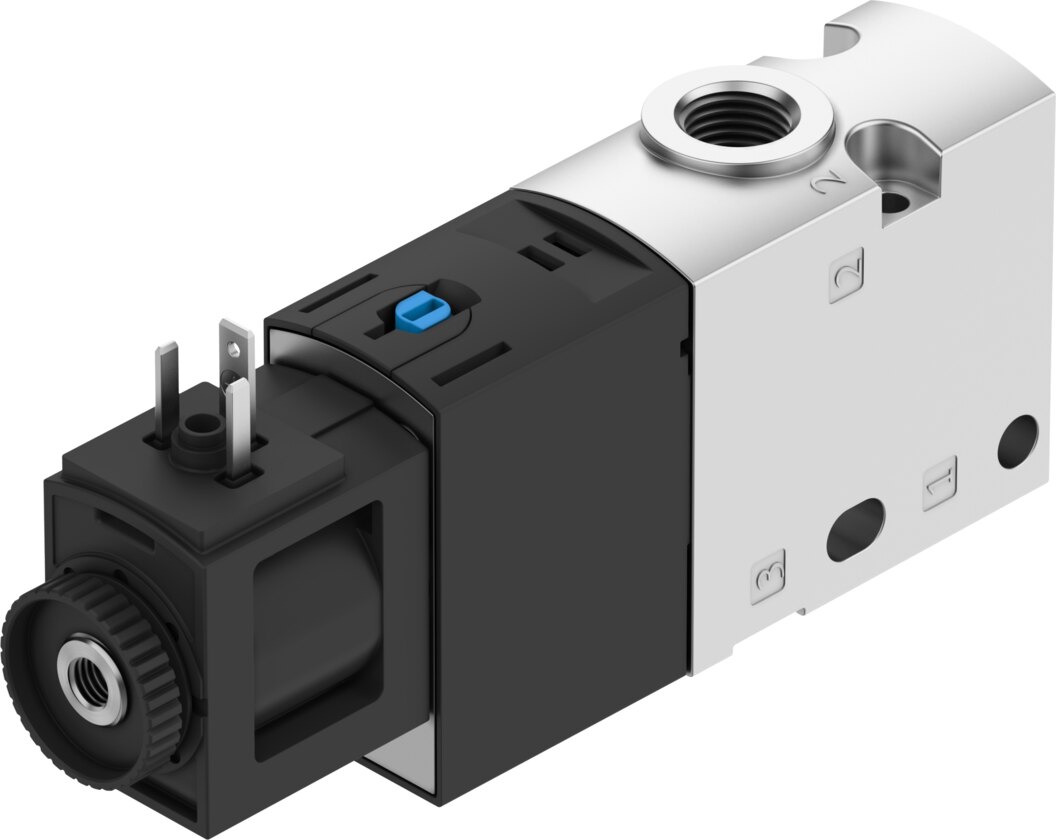

Solenoid valve 3/2-way normally closed 1/8 NPT VUVS-LT20-M32C-MD-N18-F7 - Festo 577504

Festo ✓ Original product Brand new

Solenoid valve VUVS-LT20-M32C-MD-N18-F7 as a 3/2-way valve (normally closed, monostable) with 600 l/min standard nominal flow rate for controlling pneumatic actuators. Designed for 2.5 to 10 bar operating pressure, 1/8 NPT ports and 21 mm valve size. Switches on in 9 ms and off in 23 ms.

Net
€59.21
excl. VAT
Item FES-577504
Manufacturer no. VUVS-LT20-M32C-MD-N18-F7
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

600 l/min standard nominal flow rate at 2.5 to 10 bar operating pressure: the Festo solenoid valve VUVS-LT20-M32C-MD-N18-F7 works as a 3/2-way valve (normally closed, monostable). Designed with 1/8 NPT ports and 21 mm valve size.

Benefits

  • Flow: 600 l/min standard nominal flow rate at 21 mm valve size
  • Pressure range: 2.5 to 10 bar
  • Switching times: 9 ms on, 23 ms off
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: corrosion resistance class 2
  • Temperature: -5 to 60 °C ambient

Applications

Typical tasks for the VUVS-LT20-M32C-MD-N18-F7 are single-acting cylinders, blow air and piloting larger valves. The VUVS-LT20-M32C-MD-N18-F7 is mounted on manifold rail, with through-hole. Operating medium for the VUVS-LT20-M32C-MD-N18-F7: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-LT20-M32C-MD-N18-F7
Festo part number577504
Valve function3/2-way, normally closed, monostable
Type of actuationelectrical
Valve size21 mm
Standard nominal flow rate600 l/min
pneumatic working port1/8 NPT
Operating pressure2.5 to 10 bar
Designpoppet seat
Reset methodmechanical spring
Approvalc UL us - Recognized (OL)
Nominal size5.2 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlapnegative overlap
b value0.39
C value2.3 l/sbar
Switching time off23 ms
Switching time on9 ms
Max. positive test pulse with 0 signal1900 µs
Max. negative test pulse with 1 signal2700 µs
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 60 °C
Product weight112 g
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pilot exhaust port 8210-32 UNF-2B
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Note on materialsRoHS compliant
Material sealsHNBR, NBR, TPE-U(PU)
Material housingdie-cast aluminium, painted
Material screwsgalvanised steel
Weight (shipping)0.135 kg
Weight0.135 kg
ManufacturerFesto
Hersteller-NrVUVS-LT20-M32C-MD-N18-F7
EAN4052568382032
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/8
Nominal size DN [mm]5,2
Seal materialHNBR, NBR, TPE-U(PU)
MediumCompressed air
Function3/2 closed monostable
Flow rate [l/min]600
Actuation typeElectrical
SeriesVUVS
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-5-60 °C
Temperature (max.)60
