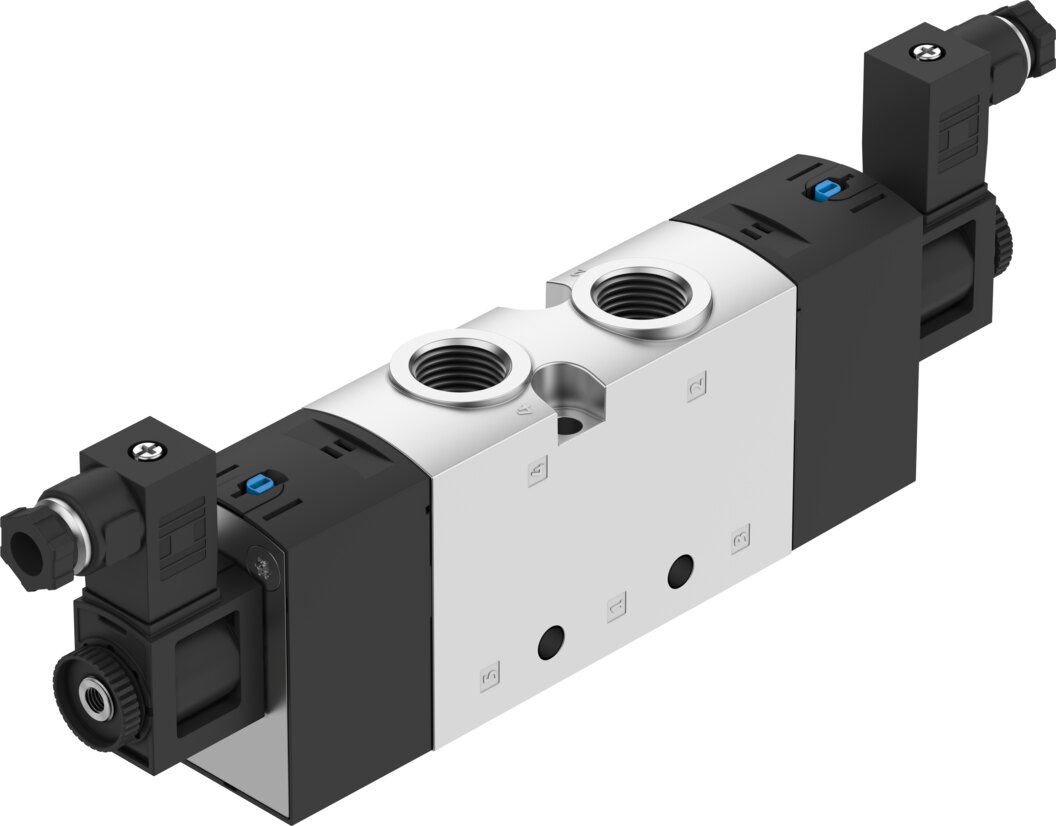

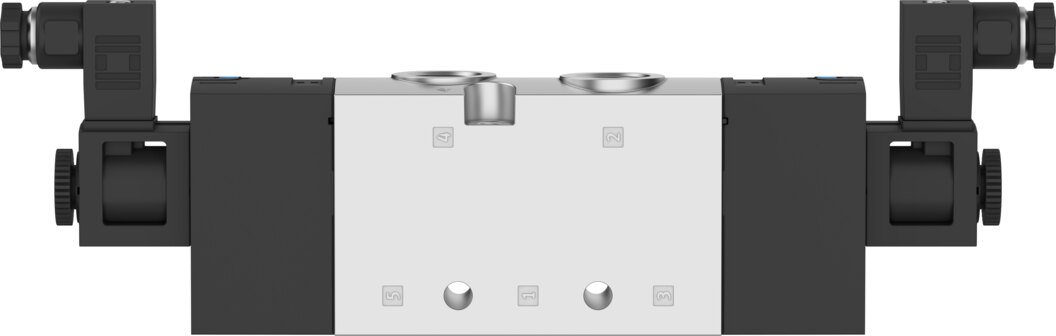

Solenoid valve 5/3-way mid-position closed G3/8 VUVS-L30-P53C-MD-G38-F8-1C1+G - Festo 8059150
As a 5/3-way valve (mid-position closed), the Festo solenoid valve VUVS-L30-P53C-MD-G38-F8-1C1+G delivers 2000 l/min standard nominal flow rate. With 2.5 to 10 bar operating pressure, G3/8 ports and 31 mm valve size. Switches on in 17 ms and off in 76 ms.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 2000 l/min standard nominal flow rate, the solenoid valve VUVS-L30-P53C-MD-G38-F8-1C1+G switches as a 5/3-way valve (mid-position closed) at 2.5 to 10 bar operating pressure. It also offers G3/8 ports, 31 mm valve size and 24 V DC coil.
Benefits at a glance
- Flow: 2000 l/min standard nominal flow rate at 31 mm valve size
- Pressure range: 2.5 to 10 bar
- Switching times: 17 ms on, 76 ms off, 39 ms reversal
- Coil: 3.3 W at 24 V DC, 100% duty cycle
- Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
- Environment: IP65 protection, corrosion resistance class 2
Applications
In mid-position the VUVS-L30-P53C-MD-G38-F8-1C1+G blocks all ports, so a double-acting cylinder stops in an intermediate position. Electrical connection of the VUVS-L30-P53C-MD-G38-F8-1C1+G: type C, to EN 175301-803. The VUVS-L30-P53C-MD-G38-F8-1C1+G is mounted on manifold rail, with through-hole. The VUVS-L30-P53C-MD-G38-F8-1C1+G operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | VUVS-L30-P53C-MD-G38-F8-1C1+G |
|---|---|
| Festo part number | 8059150 |

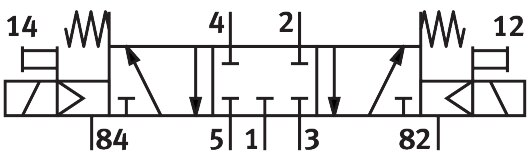

| Valve function | 5/3-way, mid-position closed |
| Type of actuation | electrical |
| Valve size | 31 mm |
| Standard nominal flow rate | 2000 l/min |
| pneumatic working port | G3/8 |
| Operating voltage | 24 V DC |
| Operating pressure | 2.5 to 10 bar |
| Design | piston spool |
| Reset method | mechanical spring |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65, with plug socket, to IEC 60529 |
| Nominal size | 8.9 mm |
| Exhaust-air function | can be throttled |
| Sealing principle | soft |
| Mounting position | any |
| Manual override | detenting, non-detenting |
| Type of piloting | piloted |
| Pilot air supply | internal |
| Flow direction | non-reversible |
| Overlap | positive overlap |
| b value | 0.4 |
| C value | 8.9 l/sbar |
| Switching time off | 76 ms |
| Switching time on | 17 ms |
| Switching time reversal | 39 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2000 µs |
| Max. negative test pulse with 1 signal | 3600 µs |
| Coil characteristics | 24 V DC: 3.3 W |
| Permissible voltage fluctuations | ± 10 % |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | class 6 according to ISO 14644-1 |
| Media temperature | -10 to 60 °C |
| Pilot medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 to 60 °C |
| Product weight | 582 g |
| Electrical connection | type C, to EN 175301-803 |
| Type of mounting | on manifold rail, with through-hole |
| Breather connection | not ducted |
| Pilot exhaust port 82 | M5 |
| Pilot exhaust port 84 | M5 |
| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 2 | G3/8 |
| Pneumatic connection, port 3 | G3/8 |
| Pneumatic connection, port 4 | G3/8 |
| Pneumatic connection, port 5 | G3/8 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | die-cast aluminium, painted |
| Material piston slide | wrought aluminium alloy |
| Material screws | nickel-plated steel |
| Weight (shipping) | 0.65 kg |
| Weight | 0.65 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVS-L30-P53C-MD-G38-F8-1C1+G |
| EAN | 4052568435585 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 3/8 |
| Nominal size DN [mm] | 8,9 |
| Seal material | HNBR, NBR |
| Medium | Compressed air |
| Function | 5/3 closed |
| Flow rate [l/min] | 2000 |
| Actuation type | Electrical |
| Norm | DIN EN 175301-803 |
| Series | VUVS |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G3/8 |
| Protection rating | IP65 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
