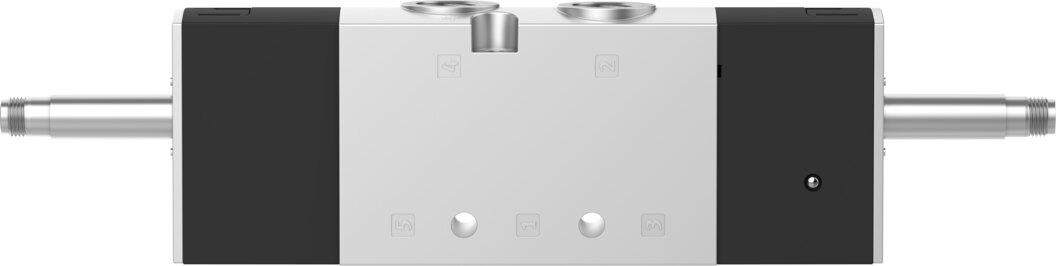

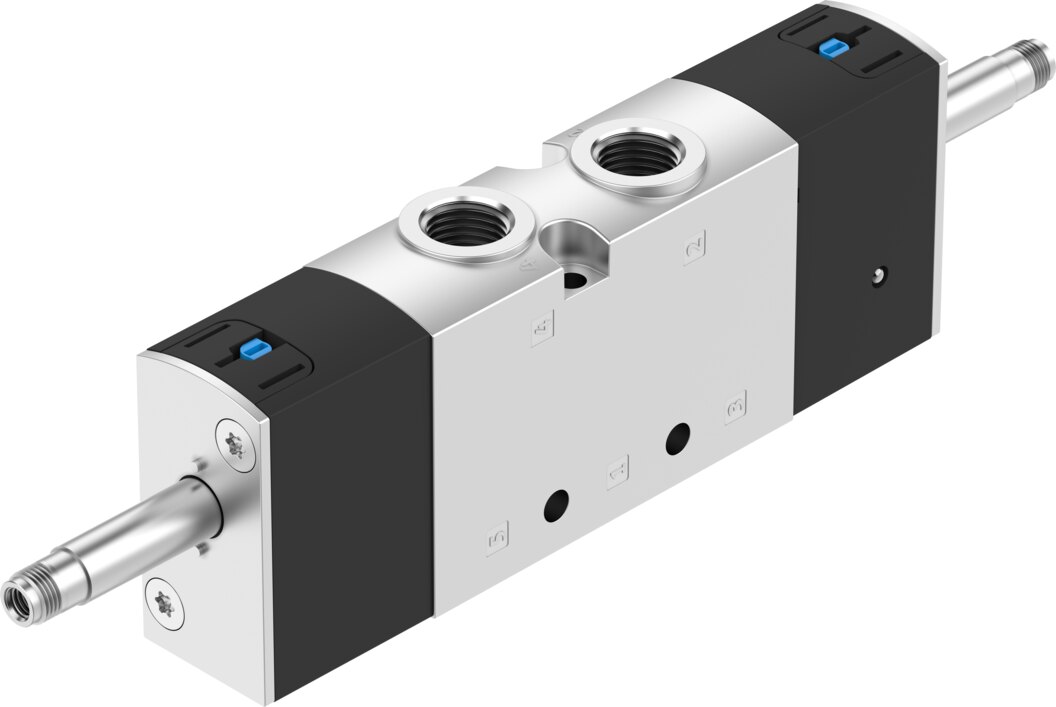

Solenoid valve 5/3-way mid-position pressurised G1/4 ATEX VUVS-L25-P53U-MD-G14-FN - Festo 8192991

Festo ✓ Original product Brand new

The VUVS-L25-P53U-MD-G14-FN switches compressed air as a 5/3-way valve (mid-position pressurised) and reaches 1000 l/min standard nominal flow rate. Ratings: 2.5 to 8 bar operating pressure, G1/4 ports and 26.5 mm valve size. Suitable for ATEX zones 1, 2, 21, 22.

Net
€98.35
excl. VAT
Item FES-8192991
Manufacturer no. VUVS-L25-P53U-MD-G14-FN
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

1000 l/min standard nominal flow rate at 2.5 to 8 bar operating pressure: the Festo solenoid valve VUVS-L25-P53U-MD-G14-FN works as a 5/3-way valve (mid-position pressurised). The design is piloted with internal pilot air and comes with G1/4 ports, 26.5 mm valve size and 2.5 to 8 bar pilot pressure.

Benefits at a glance

  • Flow: 1000 l/min standard nominal flow rate at 26.5 mm valve size
  • Pressure range: 2.5 to 8 bar
  • Switching times: 40 ms on, 151 ms off, 98 ms reversal
  • Explosion protection: ATEX zones 1, 2, 21, 22
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: corrosion resistance class 2

Applications

In mid-position the VUVS-L25-P53U-MD-G14-FN pressurises both working ports, for example to hold a cylinder with balanced forces. The VUVS-L25-P53U-MD-G14-FN is approved for ATEX zones 1, 2, 21, 22. The information in the certificate applies to its use. Operating medium for the VUVS-L25-P53U-MD-G14-FN: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-L25-P53U-MD-G14-FN
Festo part number8192991

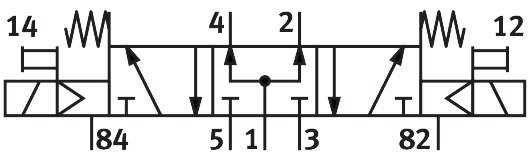

Valve function5/3-way, mid-position pressurised
Type of actuationelectrical
Valve size26.5 mm
Standard nominal flow rate1000 l/min
pneumatic working portG1/4
Operating pressure2.5 to 8 bar
Designpiston spool
Reset methodmechanical spring
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlappositive overlap
Pilot pressure2.5 to 8 bar
b value0.4
C value4.3 l/sbar
Switching time off151 ms
Switching time on40 ms
Switching time reversal98 ms
Explosion protectionobserve the information in the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 60 °C
Product weight324 g
Breather connectionnot ducted
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingdie-cast aluminium, painted
Material piston slidewrought aluminium alloy
Material screwsgalvanised steel
Weight (shipping)0.34 kg
Weight0.34 kg
ManufacturerFesto
Hersteller-NrVUVS-L25-P53U-MD-G14-FN
EAN4052568641986
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Seal materialHNBR, NBR
MediumCompressed air
Function5/3 pressurised
Flow rate [l/min]1000
Actuation typeElectrical
SeriesVUVS
Betriebsdruck max [bar]8
Pneumatic connectionG1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
