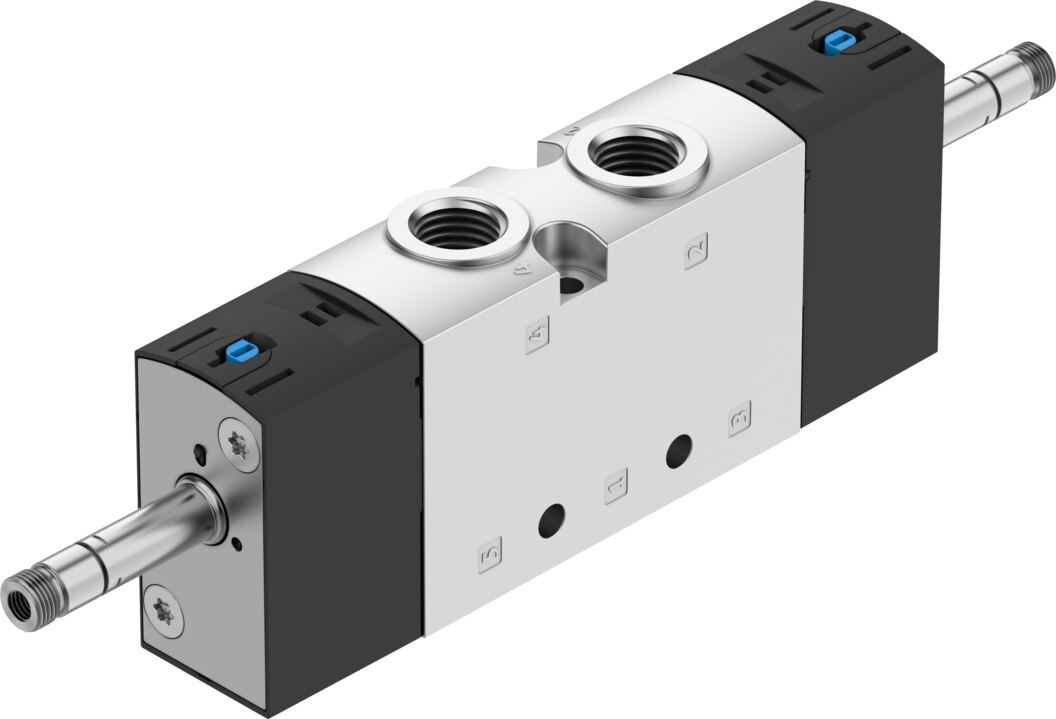

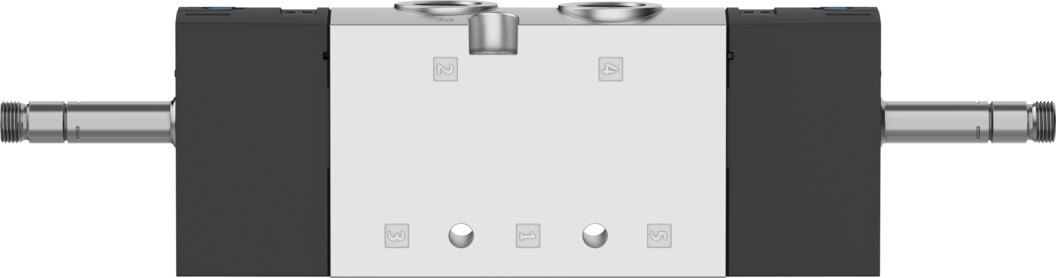

Solenoid valve 5/3-way mid-position exhausted 1/4 NPT VUVS-L25-P53E-MD-N14-F8 - Festo 575562

Festo ✓ Original product Brand new

The VUVS-L25-P53E-MD-N14-F8 switches compressed air as a 5/3-way valve (mid-position exhausted) and reaches 1000 l/min standard nominal flow rate. With 2.5 to 10 bar operating pressure, 1/4 NPT ports and 26.5 mm valve size. Switching times 14 ms on and 48 ms off.

Net
€96.19
excl. VAT
Item FES-575562
Manufacturer no. VUVS-L25-P53E-MD-N14-F8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

1000 l/min standard nominal flow rate at 2.5 to 10 bar operating pressure: the Festo solenoid valve VUVS-L25-P53E-MD-N14-F8 works as a 5/3-way valve (mid-position exhausted). The design is piloted with internal pilot air and comes with 1/4 NPT ports and 26.5 mm valve size.

Benefits at a glance

  • Flow: 1000 l/min standard nominal flow rate at 26.5 mm valve size
  • Pressure range: 2.5 to 10 bar
  • Switching times: 14 ms on, 48 ms off, 25 ms reversal
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: corrosion resistance class 2
  • Temperature: -10 to 60 °C ambient

Applications

In mid-position the VUVS-L25-P53E-MD-N14-F8 exhausts both working ports and depressurises the actuator. The VUVS-L25-P53E-MD-N14-F8 is mounted on manifold rail, with through-hole. Operating medium for the VUVS-L25-P53E-MD-N14-F8: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-L25-P53E-MD-N14-F8
Festo part number575562

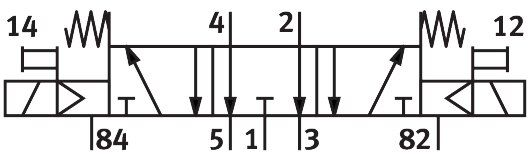

Valve function5/3-way, mid-position exhausted
Type of actuationelectrical
Valve size26.5 mm
Standard nominal flow rate1000 l/min
pneumatic working port1/4 NPT
Operating pressure2.5 to 10 bar
Designpiston spool
Reset methodmechanical spring
Approvalc UL us - Recognized (OL)
Maritime classificationsee certificate
Certificate issuing authorityDNVGL-TAA000011J
Nominal size6.3 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlappositive overlap
b value0.4
C value4.3 l/sbar
Switching time off48 ms
Switching time on14 ms
Switching time reversal25 ms
Max. positive test pulse with 0 signal2000 µs
Max. negative test pulse with 1 signal3600 µs
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 60 °C
Product weight324 g
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pilot exhaust port 8210-32 UNF-2B
Pilot exhaust port 8410-32 UNF-2B
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 41/4 NPT
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingdie-cast aluminium, painted
Material piston slidewrought aluminium alloy
Material screwsgalvanised steel
Weight (shipping)0.35 kg
Weight0.35 kg
ManufacturerFesto
Hersteller-NrVUVS-L25-P53E-MD-N14-F8
EAN4052568377915
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/4
Nominal size DN [mm]6,3
Seal materialHNBR, NBR
MediumCompressed air
Function5/3 exhausted
Flow rate [l/min]1000
Actuation typeElectrical
SeriesVUVS
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
