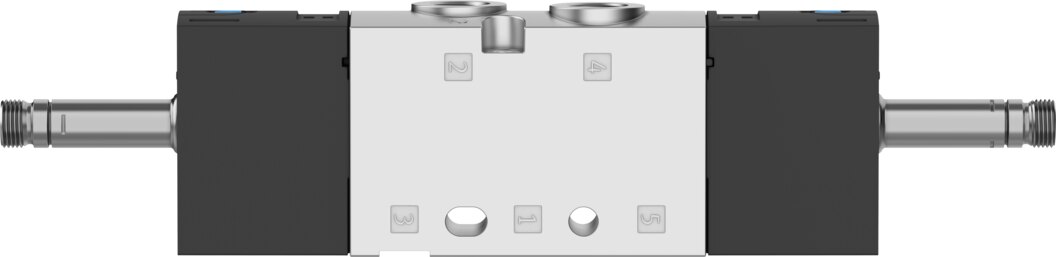

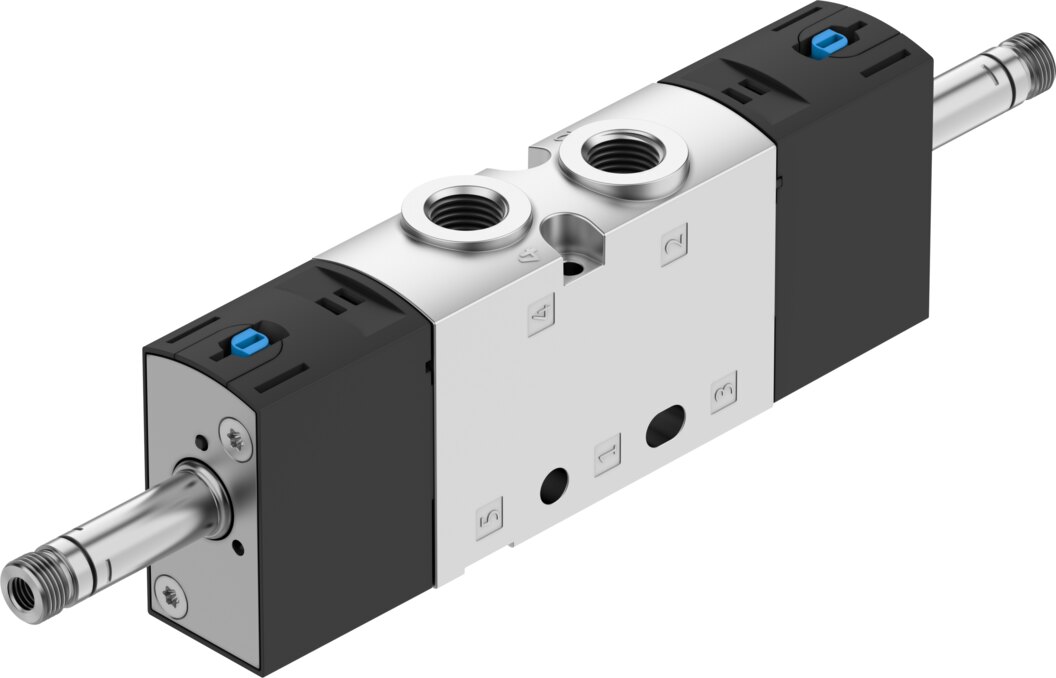

Solenoid valve 5/3-way mid-position pressurised 1/8 NPT VUVS-L20-P53U-MD-N18-F7 - Festo 575710

Festo ✓ Original product Brand new

Solenoid valve VUVS-L20-P53U-MD-N18-F7 as a 5/3-way valve (mid-position pressurised) with 600 l/min standard nominal flow rate for controlling pneumatic actuators. Designed for 2.5 to 10 bar operating pressure, 1/8 NPT ports and 21 mm valve size. Switches on in 13 ms and off in 42 ms.

Net
€90.12
excl. VAT
Item FES-575710
Manufacturer no. VUVS-L20-P53U-MD-N18-F7
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVS-L20-P53U-MD-N18-F7 works as a 5/3-way valve (mid-position pressurised) and reaches 600 l/min standard nominal flow rate at 2.5 to 10 bar operating pressure. It also offers 1/8 NPT ports and 21 mm valve size.

Benefits at a glance

  • Flow: 600 l/min standard nominal flow rate at 21 mm valve size
  • Pressure range: 2.5 to 10 bar
  • Switching times: 13 ms on, 42 ms off, 21 ms reversal
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: corrosion resistance class 2
  • Temperature: -10 to 60 °C ambient

Applications

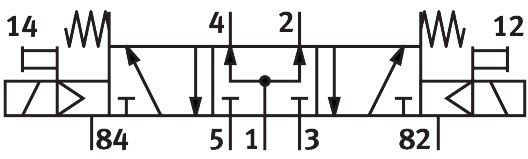

In mid-position the VUVS-L20-P53U-MD-N18-F7 pressurises both working ports, for example to hold a cylinder with balanced forces. The VUVS-L20-P53U-MD-N18-F7 is mounted on manifold rail, with through-hole. The VUVS-L20-P53U-MD-N18-F7 operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-L20-P53U-MD-N18-F7
Festo part number575710
Valve function5/3-way, mid-position pressurised
Type of actuationelectrical
Valve size21 mm
Standard nominal flow rate600 l/min
pneumatic working port1/8 NPT
Operating pressure2.5 to 10 bar
Designpiston spool
Reset methodmechanical spring
Approvalc UL us - Recognized (OL)
Nominal size4.8 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlappositive overlap
b value0.35
C value2.5 l/sbar
Switching time off42 ms
Switching time on13 ms
Switching time reversal21 ms
Max. positive test pulse with 0 signal1900 µs
Max. negative test pulse with 1 signal2700 µs
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 60 °C
Product weight229 g
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pilot exhaust port 8210-32 UNF-2B
Pilot exhaust port 8410-32 UNF-2B
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Pneumatic connection, port 41/8 NPT
Pneumatic connection, port 51/8 NPT
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingdie-cast aluminium, painted
Material piston slidehigh-alloy stainless steel
Material screwsgalvanised steel
Weight (shipping)0.23 kg
Weight0.23 kg
ManufacturerFesto
Hersteller-NrVUVS-L20-P53U-MD-N18-F7
EAN4052568378301
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/8
Nominal size DN [mm]4,8
Seal materialHNBR, NBR
MediumCompressed air
Function5/3 pressurised
Flow rate [l/min]600
Actuation typeElectrical
SeriesVUVS
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
