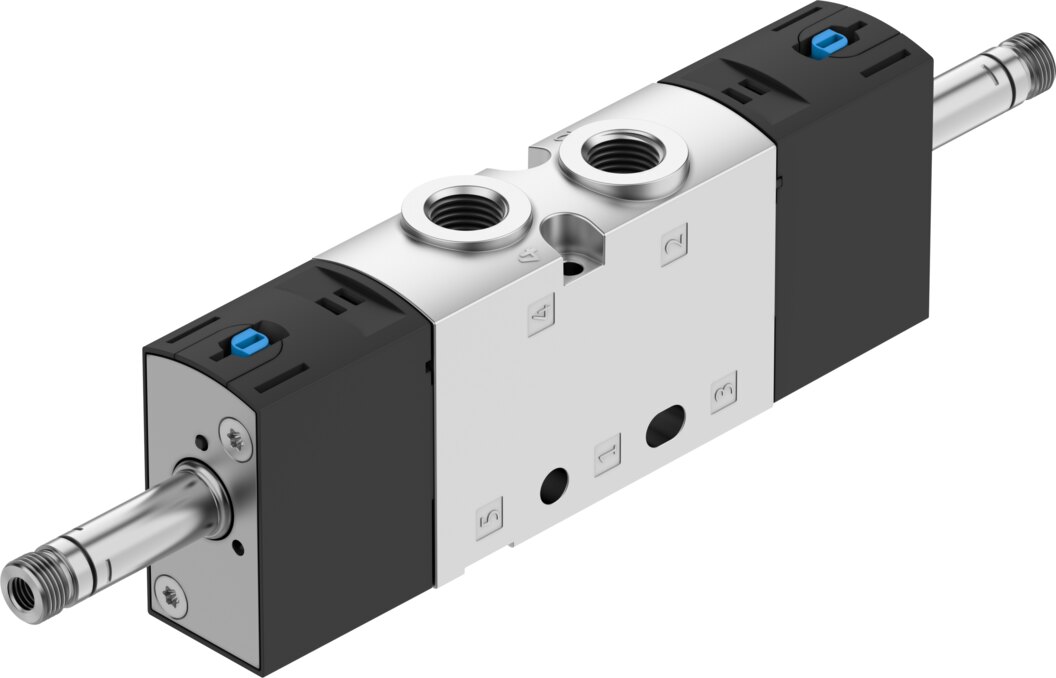

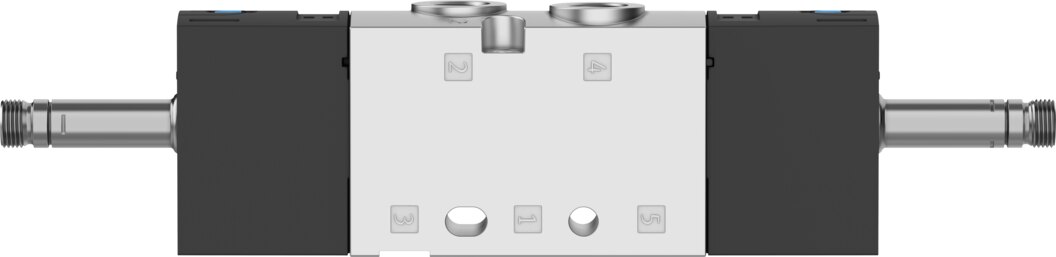

Solenoid valve 5/3-way mid-position exhausted 1/8 NPT VUVS-L20-P53E-MD-N18-F7 - Festo 575712
Solenoid valve VUVS-L20-P53E-MD-N18-F7 as a 5/3-way valve (mid-position exhausted) with 600 l/min standard nominal flow rate for controlling pneumatic actuators. Ratings: 2.5 to 10 bar operating pressure, 1/8 NPT ports and 21 mm valve size. Switching times 13 ms on and 44 ms off.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 600 l/min standard nominal flow rate, the solenoid valve VUVS-L20-P53E-MD-N18-F7 switches as a 5/3-way valve (mid-position exhausted) at 2.5 to 10 bar operating pressure. It also offers 1/8 NPT ports and 21 mm valve size.
Key benefits
- Flow: 600 l/min standard nominal flow rate at 21 mm valve size
- Pressure range: 2.5 to 10 bar
- Switching times: 13 ms on, 44 ms off, 24 ms reversal
- Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
- Environment: corrosion resistance class 2
- Temperature: -10 to 60 °C ambient
Applications
In mid-position the VUVS-L20-P53E-MD-N18-F7 exhausts both working ports and depressurises the actuator. Mounting of the VUVS-L20-P53E-MD-N18-F7: on manifold rail, with through-hole. Operating medium for the VUVS-L20-P53E-MD-N18-F7: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | VUVS-L20-P53E-MD-N18-F7 |
|---|---|
| Festo part number | 575712 |

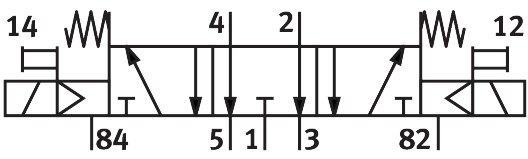

| Valve function | 5/3-way, mid-position exhausted |
| Type of actuation | electrical |
| Valve size | 21 mm |
| Standard nominal flow rate | 600 l/min |
| pneumatic working port | 1/8 NPT |
| Operating pressure | 2.5 to 10 bar |
| Design | piston spool |
| Reset method | mechanical spring |
| Approval | c UL us - Recognized (OL) |
| Nominal size | 4.5 mm |
| Exhaust-air function | can be throttled |
| Sealing principle | soft |
| Mounting position | any |
| Manual override | detenting, non-detenting |
| Type of piloting | piloted |
| Pilot air supply | internal |
| Flow direction | non-reversible |
| Overlap | positive overlap |
| b value | 0.35 |
| C value | 2.5 l/sbar |
| Switching time off | 44 ms |
| Switching time on | 13 ms |
| Switching time reversal | 24 ms |
| Max. positive test pulse with 0 signal | 1900 µs |
| Max. negative test pulse with 1 signal | 2700 µs |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | class 6 according to ISO 14644-1 |
| Media temperature | -10 to 60 °C |
| Pilot medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 to 60 °C |
| Product weight | 229 g |
| Type of mounting | on manifold rail, with through-hole |
| Breather connection | not ducted |
| Pilot exhaust port 82 | 10-32 UNF-2B |
| Pilot exhaust port 84 | 10-32 UNF-2B |
| Pneumatic connection, port 1 | 1/8 NPT |
| Pneumatic connection, port 2 | 1/8 NPT |
| Pneumatic connection, port 3 | 1/8 NPT |
| Pneumatic connection, port 4 | 1/8 NPT |
| Pneumatic connection, port 5 | 1/8 NPT |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | die-cast aluminium, painted |
| Material piston slide | high-alloy stainless steel |
| Material screws | galvanised steel |
| Weight (shipping) | 0.23 kg |
| Weight | 0.23 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVS-L20-P53E-MD-N18-F7 |
| EAN | 4052568378325 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | NPT 1/8 |
| Nominal size DN [mm] | 4,5 |
| Seal material | HNBR, NBR |
| Medium | Compressed air |
| Function | 5/3 exhausted |
| Flow rate [l/min] | 600 |
| Actuation type | Electrical |
| Series | VUVS |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
