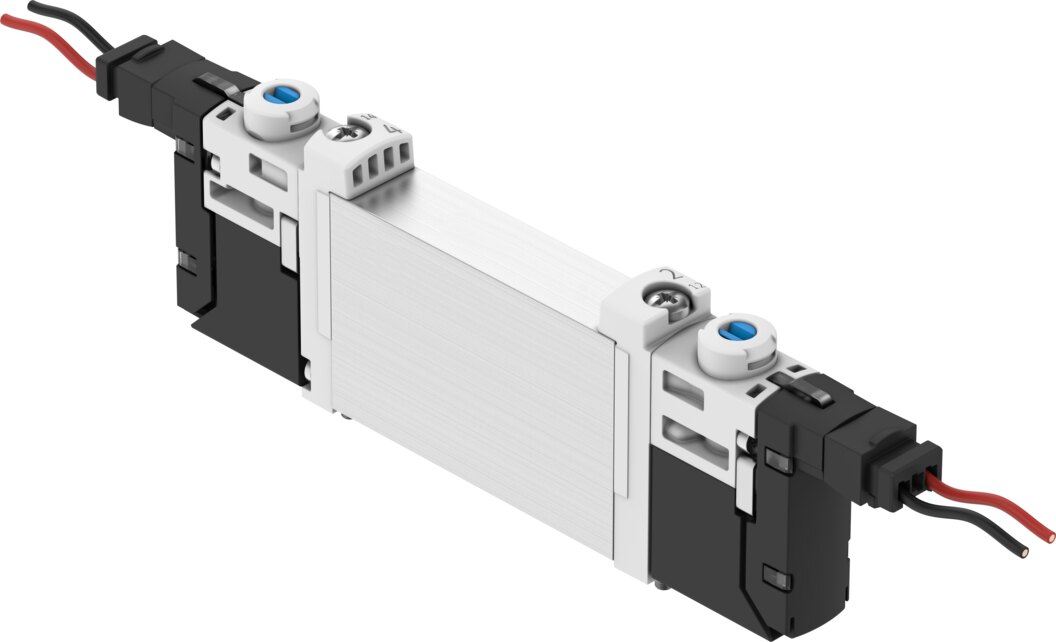

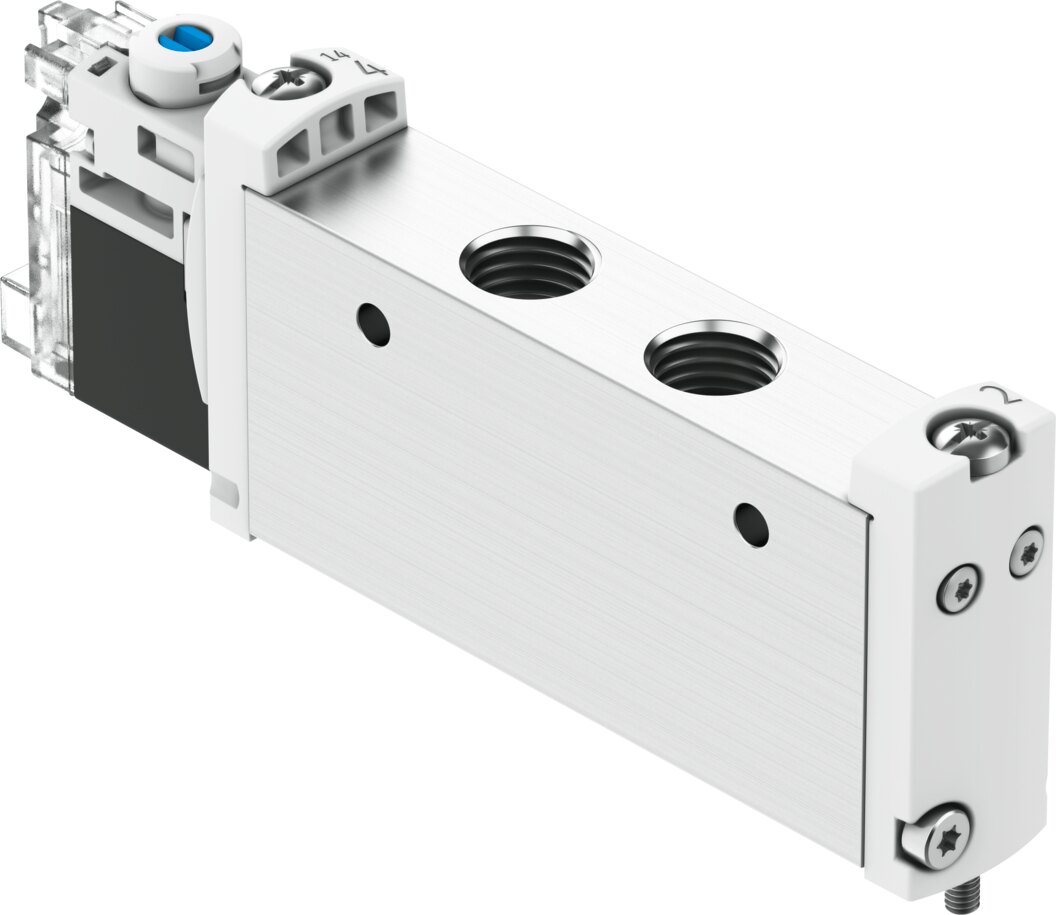

Solenoid valve VUVG - Festo 564212
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | 2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2-way, open/closed, monostable, 5/2-way, double solenoid, 5/2-way, single solenoid, 5/3-way, pressurised, 5/3 exhausted, 5/3-way, closed |
|---|---|
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 90 ... 1380 l/min |
| pneumatic working port | Flange, M3, M5, M7, G1/8, G1/4, QS-3, QS-4, QS-6, QS-8, QS-10, QS-5/32, QS-1/8, QS-3/16, QS-1/4, QS-5/16, QS-3/8 |
| Operating voltage | 24 V DC, 5 V DC |
| Operating pressure | -0.9 ... 10 bar |
| Design | Piston gate valve, Piston slide with sealing ring |
| Type of reset | Mechanical spring, Pneumatic spring |
| Approval | RCM, c UL us - Recognised (Oil) |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Degree of protection | IP40, IP65, With plug socket |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting, Non-detenting, Concealed |
| Type of piloting | Piloted |
| Pilot air supply | External, Internal |
| lap | Overlap, Indeterminate overlap |
| Duty cycle | 100% |
| Permissible voltage fluctuations | +/-10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Restrictions for environmental and media temperature | -5 - 50 °C, Without holding current reduction |
| Corrosion resistance class CRC | 0 - No corrosion stress, 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L, VDMA24364 zone III |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 5 according to ISO 14644-1 |
| Media temperature | -5 ... 60 °C |
| Ambient temperature | -5 ... 60 °C |
| Electrical connection | Via electrical sub-base |
| Type of mounting | On manifold rail, With through-hole |
| Pilot air port 12/14 | M3, M5 |
| Pneumatic connection, port 1 | M3, M5, M7, G1/8, G1/4 |
| Pneumatic connection, port 2 | M3, M5, M7, G1/8, G1/4 |
| Pneumatic connection, port 3 | M3, M5, M7, G1/8, G1/4 |
| Pneumatic connection, port 4 | M3, M5, M7, G1/8, G1/4 |
| Pneumatic connection, port 5 | M3, M5, M7, G1/8, G1/4 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Wrought aluminium alloy |
| Weight | 0.06 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
