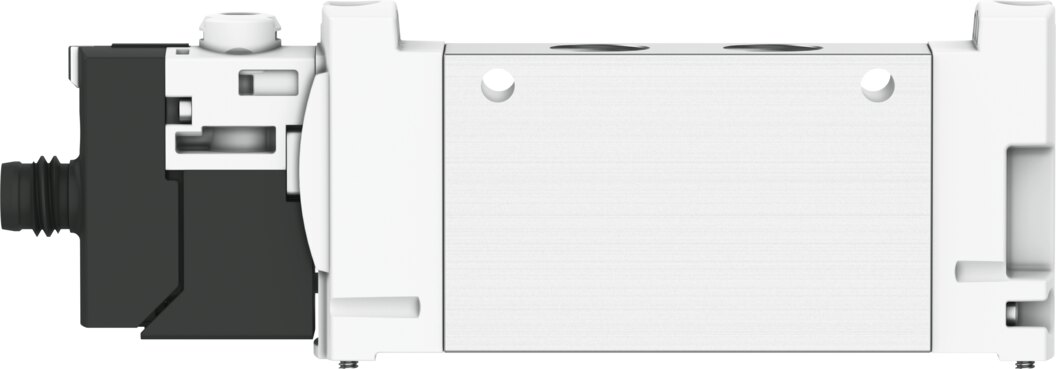

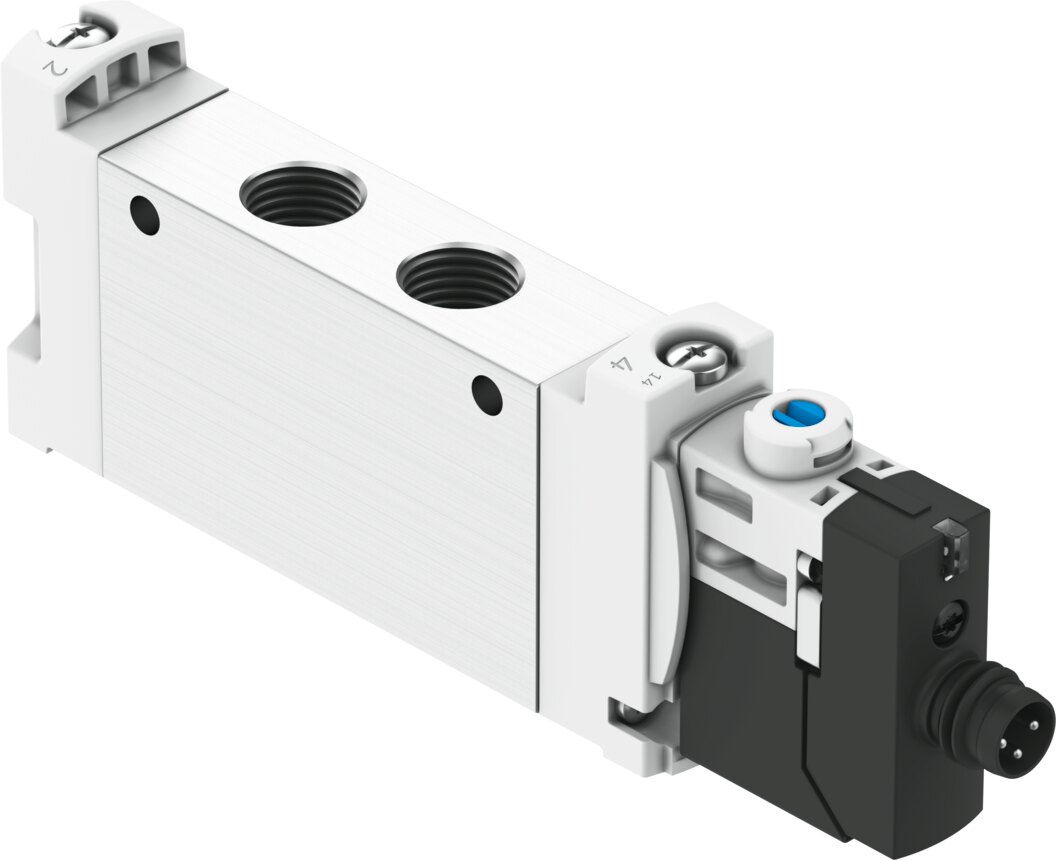

Solenoid valve 5/2 monostable, 14 mm, G1/8 VUVG-LK14-M52-AT-G18-1R8L-S:SM - Festo 8131266
VUVG solenoid valve with valve function 5/2 monostable in valve size 14 mm. Port G1/8, 24 V DC coil, reset by pneumatic spring, internal pilot air.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The solenoid valve VUVG-LK14-M52-AT-G18-1R8L-S:SM works as a monostable 5/2-way valve, reset is by a pneumatic (air) spring. VUVG series, valve size 14 mm.
Benefits
- Size: Valve size 14 mm, working port G1/8.
- Manual override: Detenting, non-detenting.
- Reset: Pneumatic spring, internal pilot air.
- Voltage: 24 V DC.
Application
Suited to double-acting cylinders. The pilot stage is supplied internally. Mounting on manifold rail, with through-hole. The data is derived from order type VUVG-LK14-M52-AT-G18-1R8L-S:SM, see the Festo datasheet for further values.
Technical data
| Type | VUVG-LK14-M52-AT-G18-1R8L-S:SM |
|---|---|
| Festo part number | 8131266 |
| Valve function | 5/2-way, single solenoid |
| Type of actuation | Electrical |
| Valve size | 14 mm |
| Pneumatic working port | G1/8 |
| Operating voltage | 24 V DC |
| Type of reset | Pneumatic spring |
| Manual override | Detenting, non-detenting |
| Pilot air supply | Internal |
| Type of mounting | On manifold rail, with through-hole |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-LK14-M52-AT-G18-1R8L-S:SM |
| Zolltarifnummer | 90330090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Function | 5/2 monostable |
| Actuation type | Electrical |
| Series | VUVG |
| Pneumatic connection | G1/8 |
