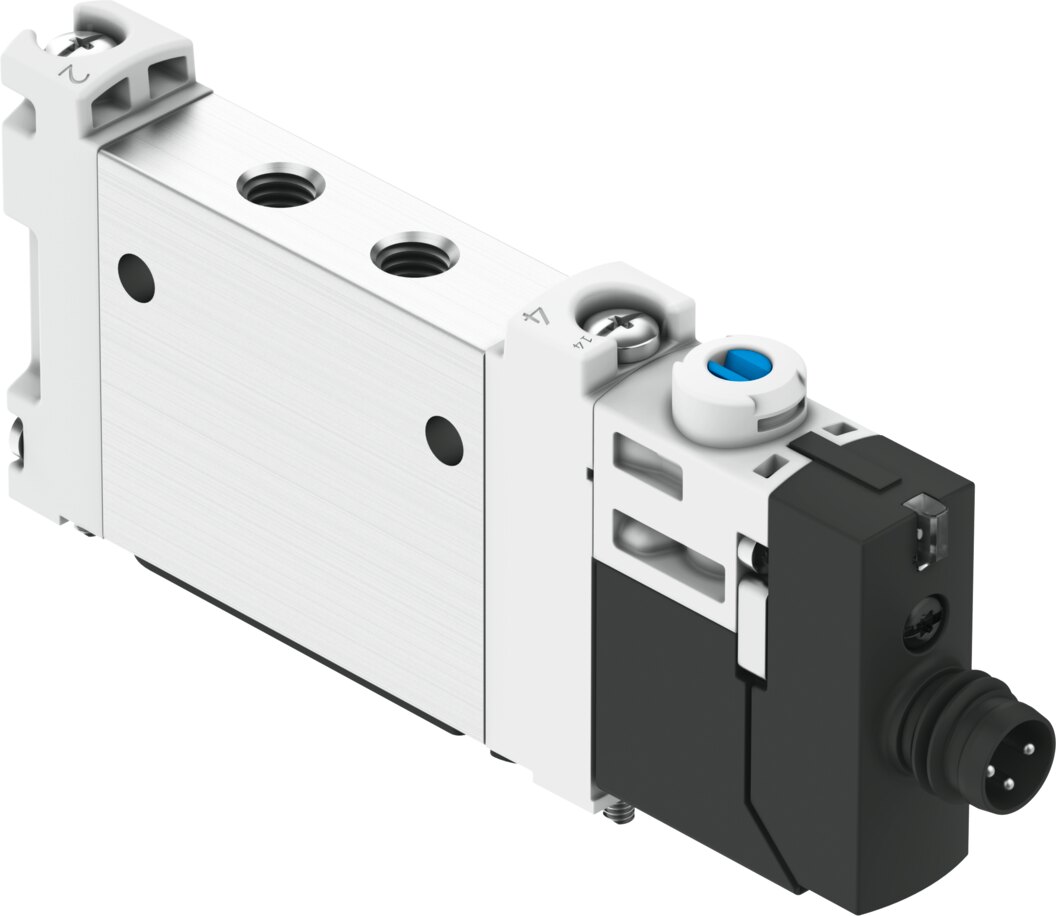

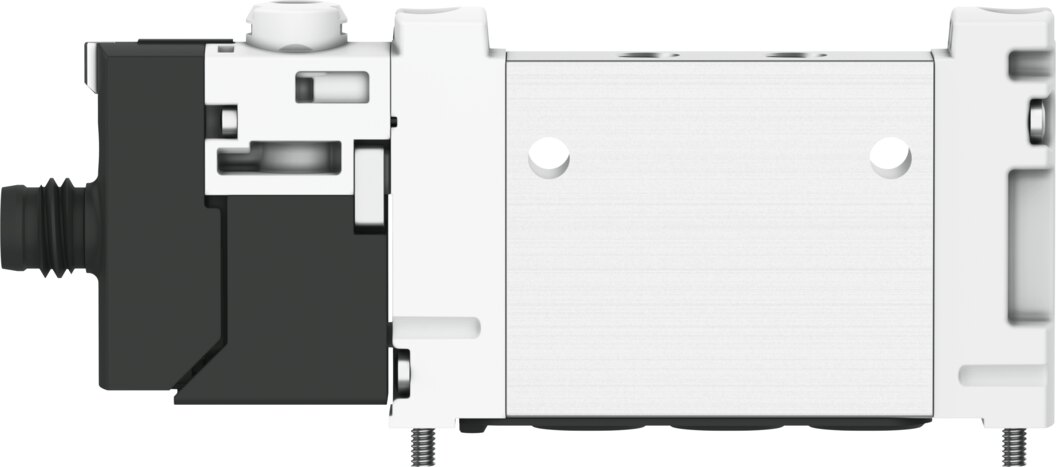

Solenoid valve 5/2 monostable, 10 mm, M5 VUVG-LK10-M52-AT-M5-1R8L-S - Festo 8042543
5/2 monostable solenoid valve from the VUVG series for 195 l/min at 2.5 to 7 bar operating pressure. Port M5, valve size 10 mm, 24 V DC coil with 0.8 W.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The solenoid valve VUVG-LK10-M52-AT-M5-1R8L-S switches as a 5/2-way valve and returns to its normal position via a pneumatic (air) spring when the signal drops. At 10 mm valve size it delivers 195 l/min.
Benefits
- Flow and switching time: 195 l/min at valve size 10 mm, switches on in 14 ms and off in 17 ms.
- Protection: Degree of protection IP65, ambient -5 to 50 °C.
- Coil: 24 V DC: 0.8 W, duty cycle 100 %.
- Pressure range: 2.5 to 7 bar operating pressure.
Application
Use the VUVG-LK10-M52-AT-M5-1R8L-S to control double-acting actuators directly. Internal pilot air from port 1. Manual override detenting, non-detenting. Installation on manifold rail, with through-hole, product weight 45 g. Operating medium compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Once lubricated, lubrication must continue.
Technical data
| Type | VUVG-LK10-M52-AT-M5-1R8L-S |
|---|---|
| Festo part number | 8042543 |
| Valve function | 5/2-way, single solenoid |
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate (to DIN 1343) | 195 l/min |
| Pneumatic working port | M5 |
| Operating voltage | 24 V DC |
| Operating pressure | 2.5 to 7 bar |
| Design | Piston spool with sealing ring |
| Type of reset | Pneumatic spring |
| Approval | c UL us - Recognized (OL) |
| Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65 |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting, non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Overlap | Positive overlap |
| Signal status display | LED |
| Maximum switching frequency | 2 Hz |
| Switching time off | 17 ms |
| Switching time on | 14 ms |
| Duty cycle | 100 % |
| Maximum positive test pulse with 0 signal | 1600 µs |
| Maximum negative test pulse with 1 signal | 3000 µs |
| Characteristic coil data | 24 V DC: 0.8 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | -5 to 50 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 50 °C |
| Product weight | 45 g |
| Electrical connection | M8x1 A-coded to EN 61076-2-104, plug |
| Type of mounting | On manifold rail, with through-hole |
| Pneumatic connection, port 2 | M5 |
| Pneumatic connection, port 4 | M5 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Wrought aluminium alloy |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-LK10-M52-AT-M5-1R8L-S |
| EAN | 4052568286750 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Seal material | HNBR, NBR |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | 5/2 monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -5 bis 50 |
| Norm | DIN EN 61076-2-104 |
| Series | VUVG |
| Betriebsdruck max [bar] | 7 |
| Pneumatic connection | M5 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
