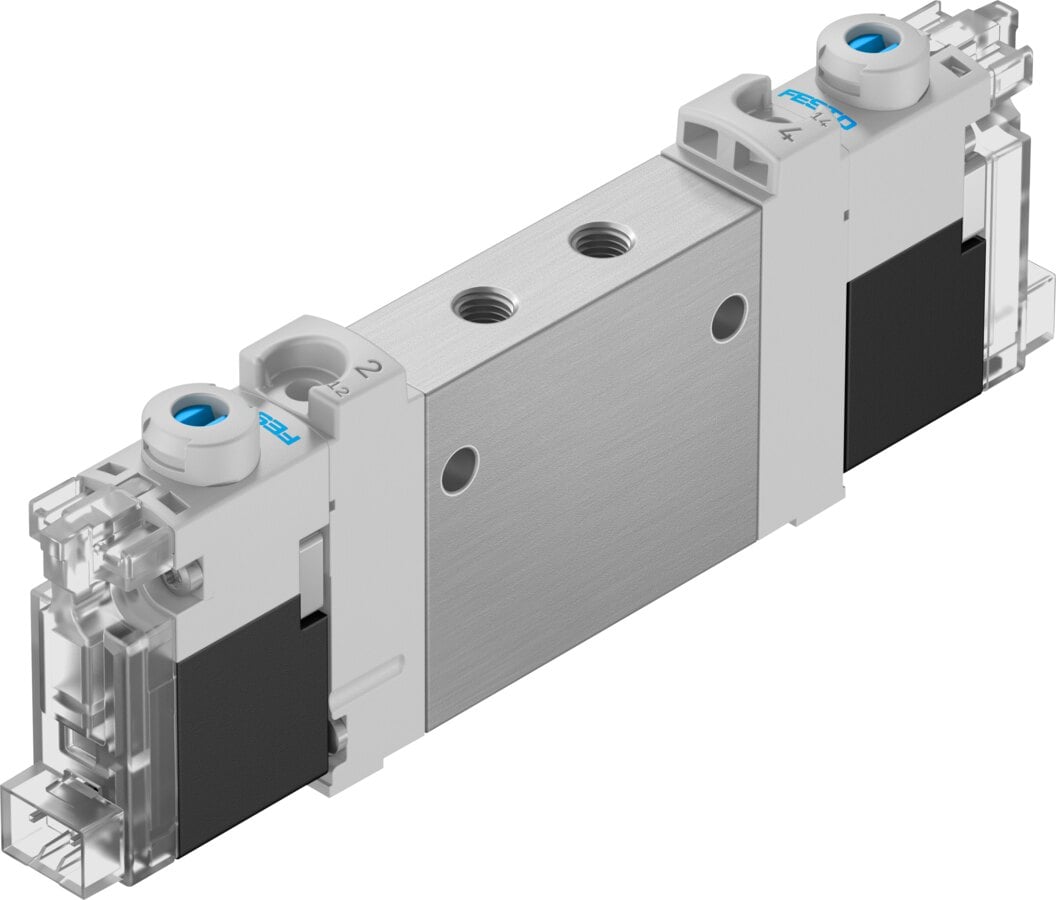

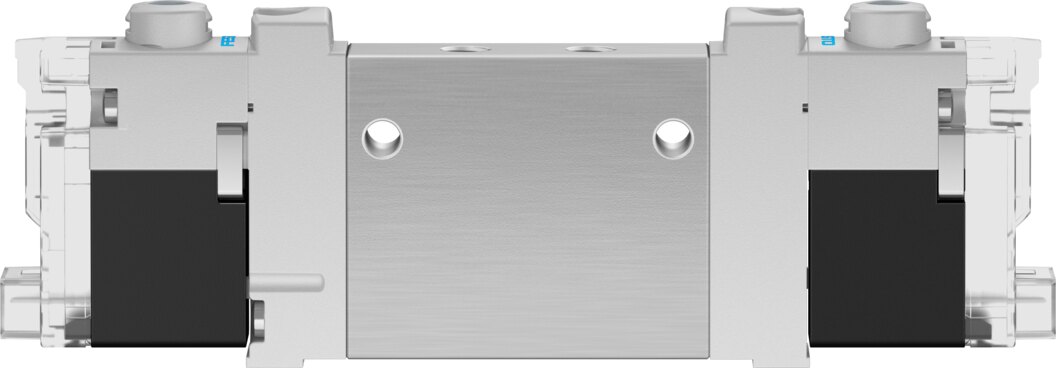

Solenoid valve 5/2 bistable, 10 mm, M5 VUVG-LK10-B52-T-M5-1H2L-S - Festo 8042540

Festo ✓ Original product Brand new

VUVG solenoid valve with valve function 5/2 bistable for 195 l/min at 1.5 to 7 bar operating pressure. Port M5, valve size 10 mm, 24 V DC coil with 0.8 W.

Net
€63.58
excl. VAT
Item FES-8042540
Manufacturer no. VUVG-LK10-B52-T-M5-1H2L-S
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-LK10-B52-T-M5-1H2L-S is a bistable 5/2-way valve (impulse valve) that holds its last switching position without a signal. Standard nominal flow is 195 l/min at a valve size of 10 mm.

Benefits

  • Flow rate: 195 l/min to DIN 1343 at valve size 10 mm.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.
  • Pressure range: 1.5 to 7 bar operating pressure.

Application

The VUVG-LK10-B52-T-M5-1H2L-S drives double-acting cylinders in both directions. The pilot stage is supplied internally. Manual override detenting, non-detenting. Installation on manifold rail, with through-hole, product weight 57 g. The medium is compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Oiled air is possible, but then permanently.

Technical data

TypeVUVG-LK10-B52-T-M5-1H2L-S
Festo part number8042540
Valve function5/2-way, double solenoid
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate (to DIN 1343)195 l/min
Pneumatic working portM5
Operating voltage24 V DC
Operating pressure1.5 to 7 bar
DesignPiston spool with sealing ring
Approvalc UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
OverlapPositive overlap
Signal status displayLED
Maximum switching frequency2 Hz
Changeover time8 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal1600 µs
Maximum negative test pulse with 1 signal3000 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Media temperature-5 to 50 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight57 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 2M5
Pneumatic connection, port 4M5
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVUVG-LK10-B52-T-M5-1H2L-S
EAN4052568286736
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/2 bistable
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]7
Pneumatic connectionM5
Protection ratingIP40
Temperature (max.)50
