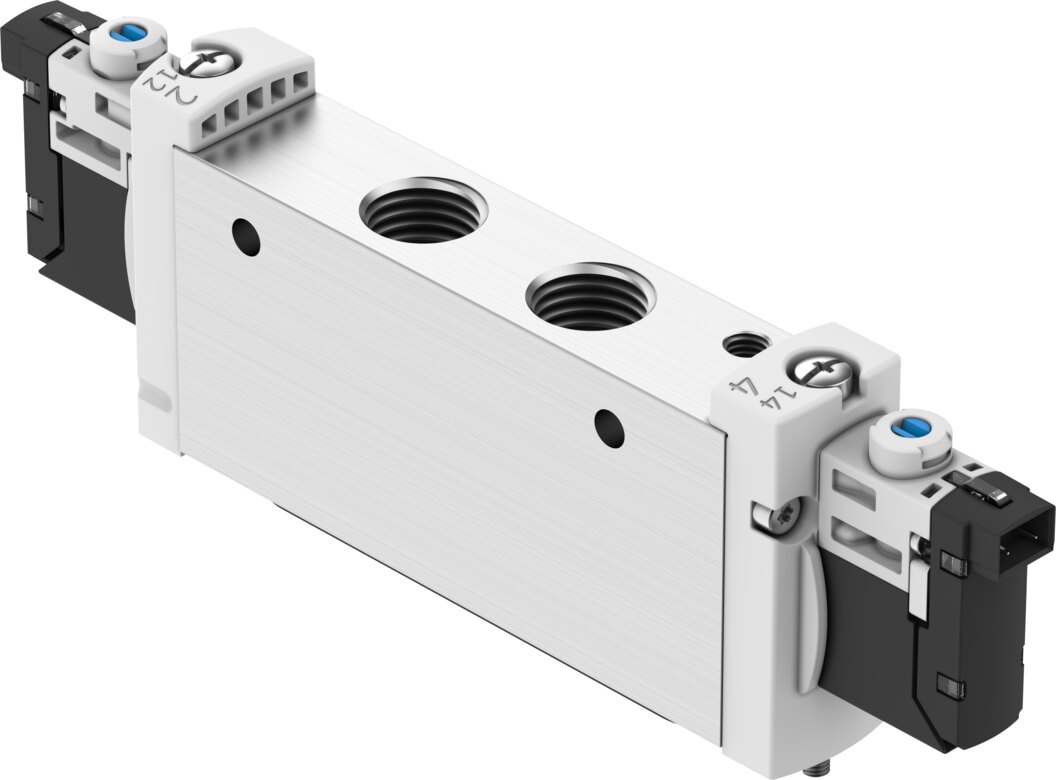

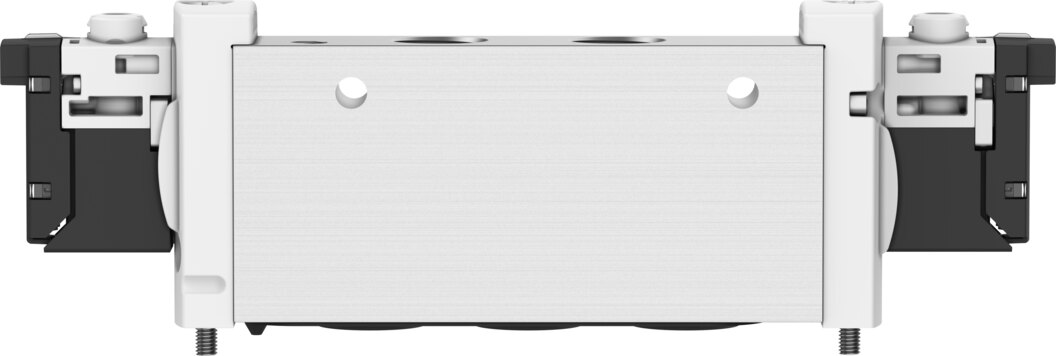

Solenoid valve 2x3/2-way closed, monostable, valve size 18 mm, G1/4 VUVG-L18-T32C-AT-G14-1H2L-W1 - Festo 578822

Festo ✓ Original product Brand new

880 l/min standard nominal flow from 18 mm valve size: the solenoid valve VUVG-L18-T32C-AT-G14-1H2L-W1 controls two single-acting actuators or separate air circuits. Valve function 2x3/2-way closed, monostable, operating pressure 1.5 to 8 bar, working ports G1/4, coil 24 V DC with 1.0 W.

Net
€106.59
excl. VAT
Item FES-578822
Manufacturer no. VUVG-L18-T32C-AT-G14-1H2L-W1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 880 l/min standard nominal flow at 18 mm valve size, the Festo solenoid valve VUVG-L18-T32C-AT-G14-1H2L-W1 controls two single-acting actuators or separate air circuits. Two independent 3/2-way functions, normally closed, share one housing and so save a valve position.

Benefits

  • Standard nominal flow rate 880 l/min at 18 mm valve size, nominal size 5.7 mm
  • Operating pressure 1.5 to 8 bar
  • Short switching times: 13 ms on, 27 ms off
  • Coil 24 V DC with 1.0 W, 100 % duty cycle
  • Working ports G1/4
  • Cleanroom suitable: class 5 to ISO 14644-1

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Once lubricated, operation must remain lubricated. Permissible media and ambient temperature of the VUVG-L18-T32C-AT-G14-1H2L-W1: -5 to 60 °C, the mounting position is freely selectable. Festo 578822 is connected electrically 2-pin, plug pattern H, horizontal connection, cable with open end and mounted on manifold rail, with through-hole.

Technical data

FeatureValue
TypeVUVG-L18-T32C-AT-G14-1H2L-W1
Festo part number578822
SeriesVUVG
Valve function2x3/2-way closed, monostable
Type of actuationElectrical
Valve size18 mm
Standard nominal flow rate880 l/min
Pneumatic working portG1/4
Operating voltage24 V DC
Operating pressure1.5 to 8 bar
DesignPiston spool
Type of resetPneumatic spring
ApprovalRCM mark, c UL us - Recognized (OL)
CE marking (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations, to UK electrical equipment regulations
Degree of protectionIP40, with plug socket
Nominal size5.7 mm
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyInternal
OverlapPositive overlap
Pilot pressure1.5 to 8 bar
Switching time off27 ms
Switching time on13 ms
Duty cycle100 %
Maximum positive test pulse at 0 signal700 µs
Maximum negative test pulse at 1 signal900 µs
Coil characteristics24 V DC: 1.0 W
Permissible voltage fluctuation±10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Ambient and media temperature restriction-5 to 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
PWIS conformity (LABS)VDMA24364-B1/B2-L
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Medium temperature-5 to 60 °C
Ambient temperature-5 to 60 °C
Electrical connection2-pin, plug pattern H, horizontal connection, cable with open end
Type of mountingOn manifold rail, with through-hole
Pneumatic port 1G1/4
Pneumatic port 2G1/4
Pneumatic port 3G1/4
Pneumatic port 4G1/4
Pneumatic port 5G1/4
Note on materialsRoHS compliant
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.18 kg
ManufacturerFesto
Hersteller-NrVUVG-L18-T32C-AT-G14-1H2L-W1
EAN4052568385088
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/4
Nominal size DN [mm]5,7
MediumCompressed air
Function2x3/2 closed monostable
Flow rate [l/min]880
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
Betriebsdruck max [bar]8
Pneumatic connectionG1/4
Protection ratingIP40
Temperaturbereich-5-60 °C
Temperature (max.)60
