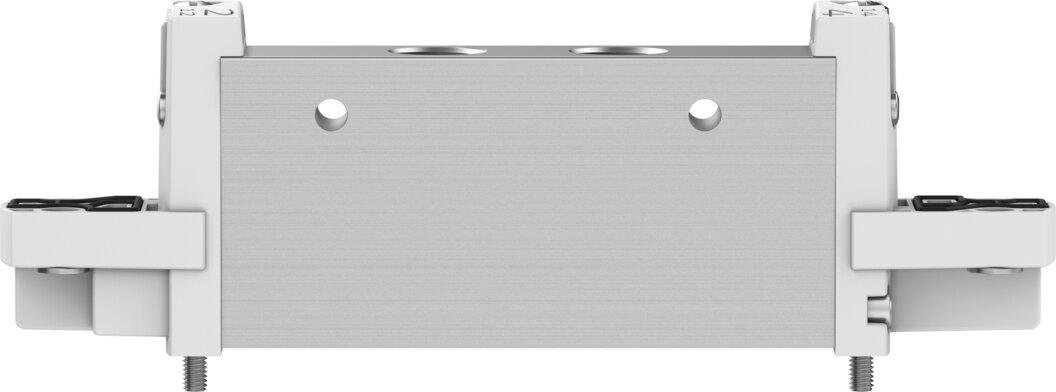

Solenoid valve 2x 3/2 normally open, monostable, 14 mm, G1/8 VUVG-L14-T32U-M-G18-P1 - Festo 8033527

Festo ✓ Original product Brand new

2x 3/2 normally open, monostable solenoid valve from the VUVG series: 480 to 500 l/min standard nominal flow, operating pressure 3 to 8 bar. Port G1/8, valve size 14 mm, pilot interface to ISO 15218.

Net
€67.41
excl. VAT
Item FES-8033527
Manufacturer no. VUVG-L14-T32U-M-G18-P1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

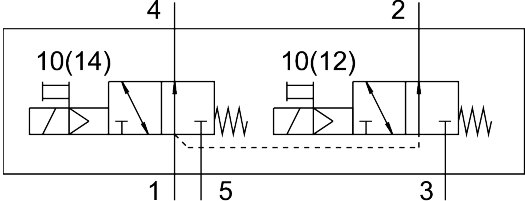

The solenoid valve VUVG-L14-T32U-M-G18-P1 contains two separately actuated 3/2-way functions, both open in the normal position. At 14 mm valve size it delivers 480 to 500 l/min.

Benefits

  • Flow and switching time: 480 to 500 l/min at valve size 14 mm, switches on in 14 ms and off in 13 ms.
  • Pressure range: 3 to 8 bar operating pressure.
  • Corrosion protection: CRC 2 - Moderate corrosion stress.
  • Cleanroom: Class 5 to ISO 14644-1.
  • Protection: Degree of protection IP65 with plug socket.
  • Piloting: Interface to ISO 15218.

Application

Suitable for single-acting cylinders and separate air circuits. Internal pilot air from port 1. Mounting on manifold rail, with through-hole, product weight 56 g. Operating medium compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 60 °C, ambient -5 to 60 °C. Once lubricated, lubrication must continue.

Technical data

TypeVUVG-L14-T32U-M-G18-P1
Festo part number8033527
Valve function2x3/2-way, open, monostable
Type of actuationElectrical
Valve size14 mm
Standard nominal flow rate (to DIN 1343)480 to 500 l/min
Pneumatic working portG1/8
Operating pressure3 to 8 bar
DesignPiston spool
Type of resetMechanical spring
Approvalc UL us - Recognized (OL)
CE marking (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations, to UK regulations for electrical equipment
Certificate issuing authorityUL MH19482
Degree of protectionIP65, with electric pilot valve and plug socket
Nominal size4.3 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyInternal
OverlapPositive overlap
Pilot pressure3.5 to 8 bar
Suitability for vacuumNo
Switching time off13 ms
Switching time on14 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Media temperature-5 to 60 °C
Ambient temperature-5 to 60 °C
Product weight56 g
Electrical connectionVia electric pilot valve
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVUVG-L14-T32U-M-G18-P1
EAN4052568428907
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/8
Nominal size DN [mm]4,3
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function2x3/2 open monostable
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
NormISO 15218
SeriesVUVG
Betriebsdruck max [bar]8
Pneumatic connectionG1/8
Protection ratingIP65
Temperaturbereich-5-60 °C
Temperature (max.)60
