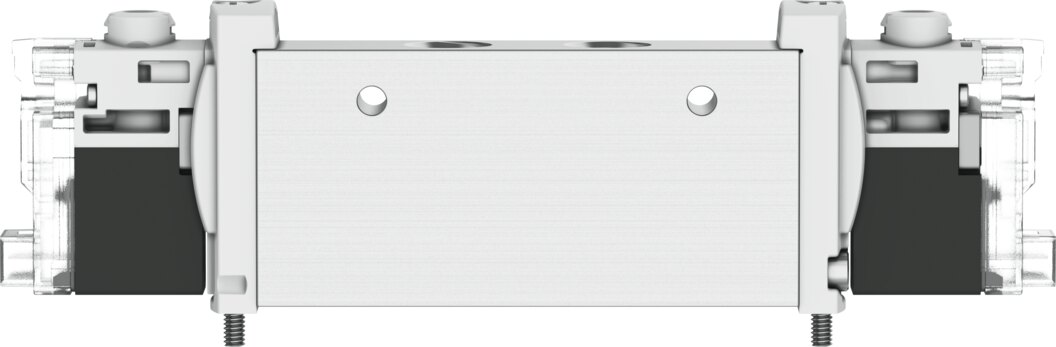

Solenoid valve 5/3-way closed, valve size 14 mm VUVG-L14-P53C-T-Q6-U-1R8L - Festo 582574

Festo ✓ Original product Brand new

The solenoid valve VUVG-L14-P53C-T-Q6-U-1R8L with 5/3-way closed function and 14 mm valve size controls double-acting cylinders with stops in intermediate positions. Operating pressure 3 to 8 bar. Housing in wrought aluminium alloy, seals in HNBR, NBR.

Net
€141.00
excl. VAT
Item FES-582574
Manufacturer no. VUVG-L14-P53C-T-Q6-U-1R8L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Valve function 5/3-way closed at 14 mm valve size: the Festo solenoid valve VUVG-L14-P53C-T-Q6-U-1R8L controls double-acting cylinders with stops in intermediate positions. In the mid-position all ports are closed, so a double-acting cylinder can be stopped in intermediate positions.

Benefits

  • Valve size 14 mm for compact valve arrangements
  • Operating pressure 3 to 8 bar
  • Internal pilot air

Applications

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4]. Mounting of the VUVG-L14-P53C-T-Q6-U-1R8L: on manifold rail, with through-hole.

Technical data

FeatureValue
TypeVUVG-L14-P53C-T-Q6-U-1R8L
Festo part number582574
SeriesVUVG
Valve function5/3-way closed
Type of actuationElectrical
Valve size14 mm
Operating pressure3 to 8 bar
DesignPiston spool
Type of resetMechanical spring
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyInternal
Pilot pressure3 to 8 bar
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail, with through-hole
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.125 kg
ManufacturerFesto
Hersteller-NrVUVG-L14-P53C-T-Q6-U-1R8L
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
MediumCompressed air
Function5/3 closed
Actuation typeElectrical
Betriebsdruck max [bar]8
