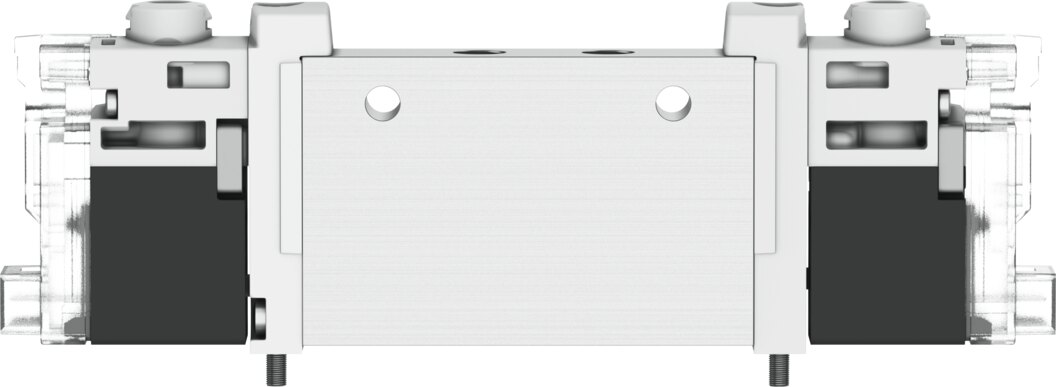

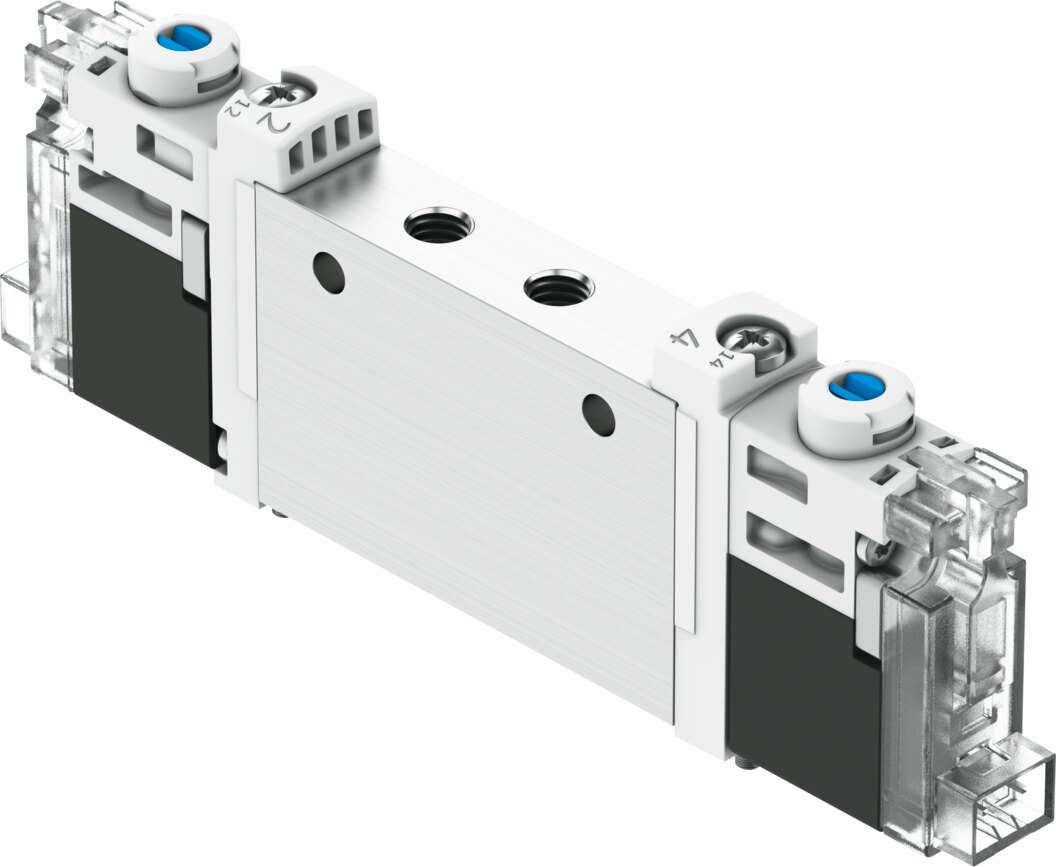

Solenoid valve 2x 3/2 normally closed, monostable, 10 mm, M5 VUVG-L10-T32C-MZT-M5-1R8L - Festo 589450
2x 3/2 normally closed, monostable solenoid valve from the VUVG series in valve size 10 mm. Port M5, 24 V DC coil, reset by mechanical spring, external pilot air.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The solenoid valve VUVG-L10-T32C-MZT-M5-1R8L combines two 3/2-way valves (normally closed) in one housing. It belongs to the VUVG series in valve size 10 mm.
Benefits
- Size: Valve size 10 mm, working port M5.
- Manual override: Detenting, non-detenting.
- Voltage: 24 V DC.
- Reset: Mechanical spring, external pilot air.
Application
Suitable for single-acting cylinders and separate air circuits. External pilot air. Installation on manifold rail, with through-hole, weight 0.065 kg. The data is derived from order type VUVG-L10-T32C-MZT-M5-1R8L, see the Festo datasheet for further values.
Technical data
| Type | VUVG-L10-T32C-MZT-M5-1R8L |
|---|---|
| Festo part number | 589450 |
| Valve function | 2x3/2-way, closed, monostable |
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Pneumatic working port | M5 |
| Operating voltage | 24 V DC |
| Type of reset | Mechanical spring |
| Manual override | Detenting, non-detenting |
| Pilot air supply | External |
| Type of mounting | On manifold rail, with through-hole |
| Weight | 0.065 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-L10-T32C-MZT-M5-1R8L |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | M5 |
| Function | 2x3/2 closed monostable |
| Actuation type | Electrical |
| Series | VUVG |
| Pneumatic connection | M5 |
