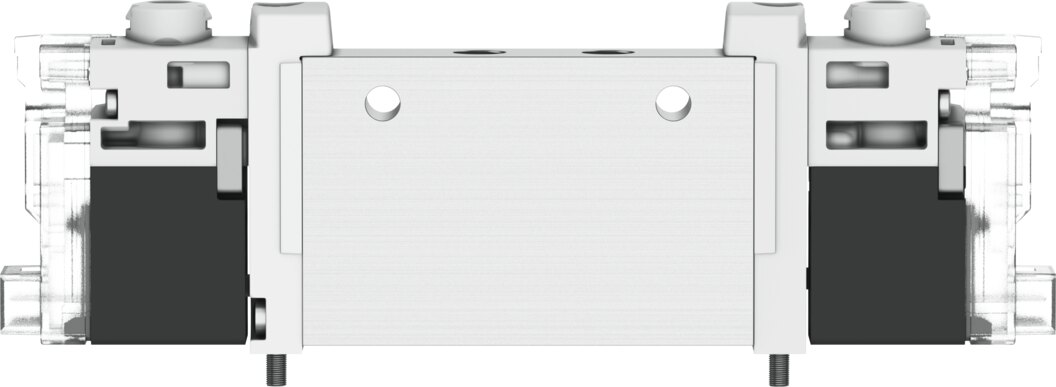

Solenoid valve 5/3 pressurised centre, 10 mm, M5 VUVG-L10-P53U-T-M5-1H2L-W3 - Festo 595206

Festo ✓ Original product Brand new

VUVG solenoid valve with valve function 5/3 pressurised centre in valve size 10 mm. Port M5, 24 V DC coil, reset by mechanical spring, internal pilot air.

Net
€109.42
excl. VAT
Item FES-595206
Manufacturer no. VUVG-L10-P53U-T-M5-1H2L-W3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L10-P53U-T-M5-1H2L-W3 is a 5/3-way valve that pressurises both working ports in the mid-position. It belongs to the VUVG series in valve size 10 mm.

Benefits

  • Size: Valve size 10 mm, working port M5.
  • Voltage: 24 V DC.
  • Manual override: Detenting, non-detenting.
  • Reset: Mechanical spring, internal pilot air.

Application

The VUVG-L10-P53U-T-M5-1H2L-W3 pressurises both cylinder chambers in the mid-position. The pilot stage is supplied internally. Installation on manifold rail, with through-hole, weight 0.095 kg. The data is derived from order type VUVG-L10-P53U-T-M5-1H2L-W3, see the Festo datasheet for further values.

Technical data

TypeVUVG-L10-P53U-T-M5-1H2L-W3
Festo part number595206

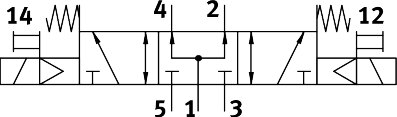

Valve function5/3-way, mid-position pressurised
Type of actuationElectrical
Valve size10 mm
Pneumatic working portM5
Operating voltage24 V DC
Type of resetMechanical spring
Manual overrideDetenting, non-detenting
Pilot air supplyInternal
Type of mountingOn manifold rail, with through-hole
Weight0.095 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-P53U-T-M5-1H2L-W3
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadM5
Function5/3 pressurised
Actuation typeElectrical
SeriesVUVG
Pneumatic connectionM5
