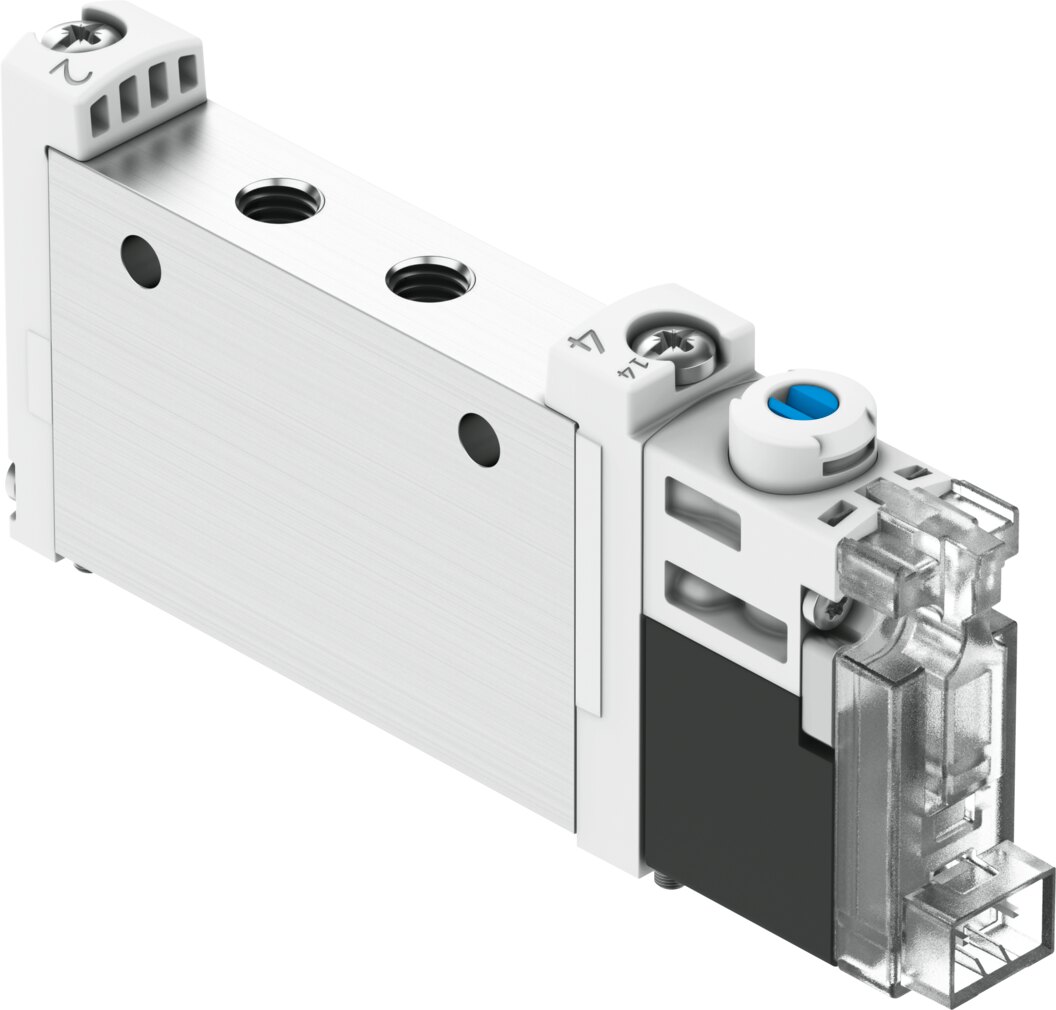

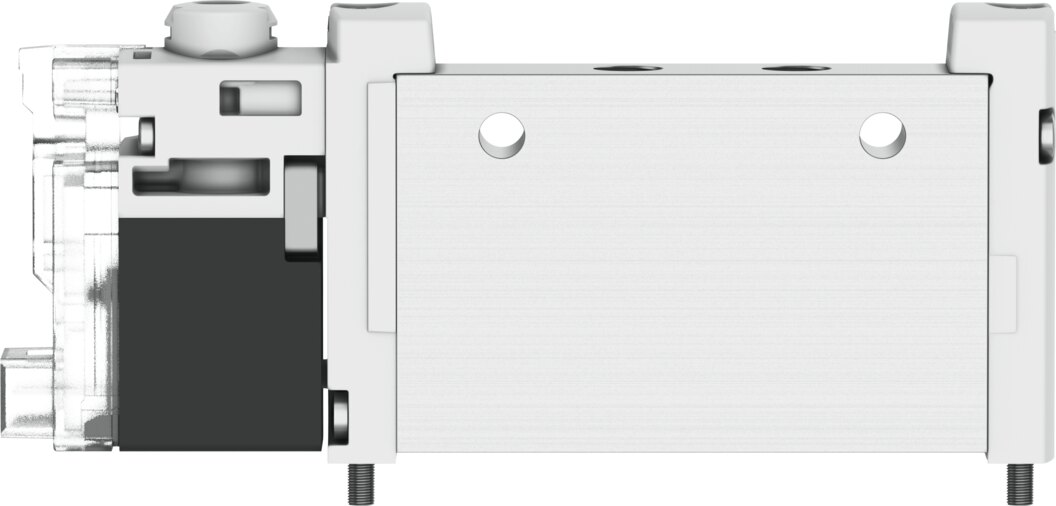

Solenoid valve 5/2 monostable, 10 mm, M7 VUVG-L10-M52-RZT-M7-1H2L-F1A - Festo 8164358

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-L10-M52-RZT-M7-1H2L-F1A, function 5/2 monostable for 320 l/min at -0.9 to 10 bar operating pressure. Port M7, valve size 10 mm, 24 V DC coil with 0.8 W.

Net
€77.81
excl. VAT
Item FES-8164358
Manufacturer no. VUVG-L10-M52-RZT-M7-1H2L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L10-M52-RZT-M7-1H2L-F1A switches as a 5/2-way valve and returns to its normal position via a mechanical plus pneumatic spring when the signal drops. In valve size 10 mm it reaches 320 l/min standard nominal flow.

Benefits

  • Flow and switching time: 320 l/min at valve size 10 mm, switches on in 10 ms and off in 20 ms.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.
  • Pressure range: -0.9 to 10 bar, suitable for vacuum.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.
  • Cleanroom: Class 5 to ISO 14644-1.

Application

The VUVG-L10-M52-RZT-M7-1H2L-F1A drives double-acting cylinders in both directions. External pilot air, pilot pressure 2.5 to 8 bar. Manual override detenting, non-detenting, concealed. Installation on manifold rail, with through-hole, product weight 42,8 g. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Lubricated operation possible, then always required. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-L10-M52-RZT-M7-1H2L-F1A
Festo part number8164358
Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate (to DIN 1343)320 l/min
Pneumatic working portM7
Operating voltage24 V DC
Operating pressure-0.9 to 10 bar
DesignPiston spool
Type of resetMechanical spring, pneumatic spring
ApprovalRCM Mark, c UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Nominal size4 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyExternal
OverlapPositive overlap
Pilot pressure2.5 to 8 bar
Suitability for vacuumYes
Switching time off20 ms
Switching time on10 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for ambient and media temperature-5 - 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Storage temperature-20 to 60 °C
Media temperature-5 to 50 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight42.8 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pilot air port 12/14M3
Pneumatic connection, port 1M7
Pneumatic connection, port 2M7
Pneumatic connection, port 3M7
Pneumatic connection, port 4M7
Pneumatic connection, port 5M7
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Material screwsCoated steel
Weight0.044 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-M52-RZT-M7-1H2L-F1A
EAN4052568612184
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM7
Nominal size DN [mm]4
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]320
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]10
Pneumatic connectionM7
Protection ratingIP40
Temperature (max.)50
