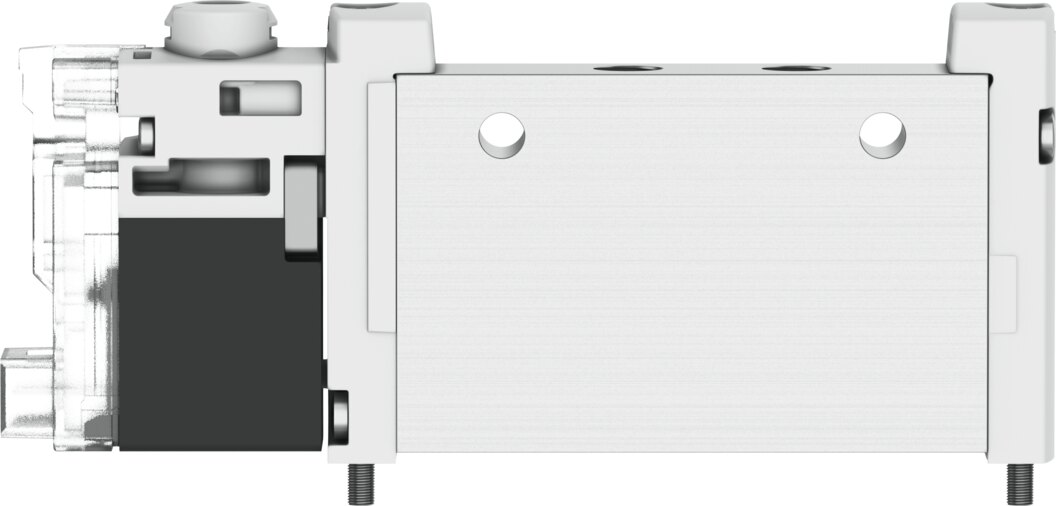

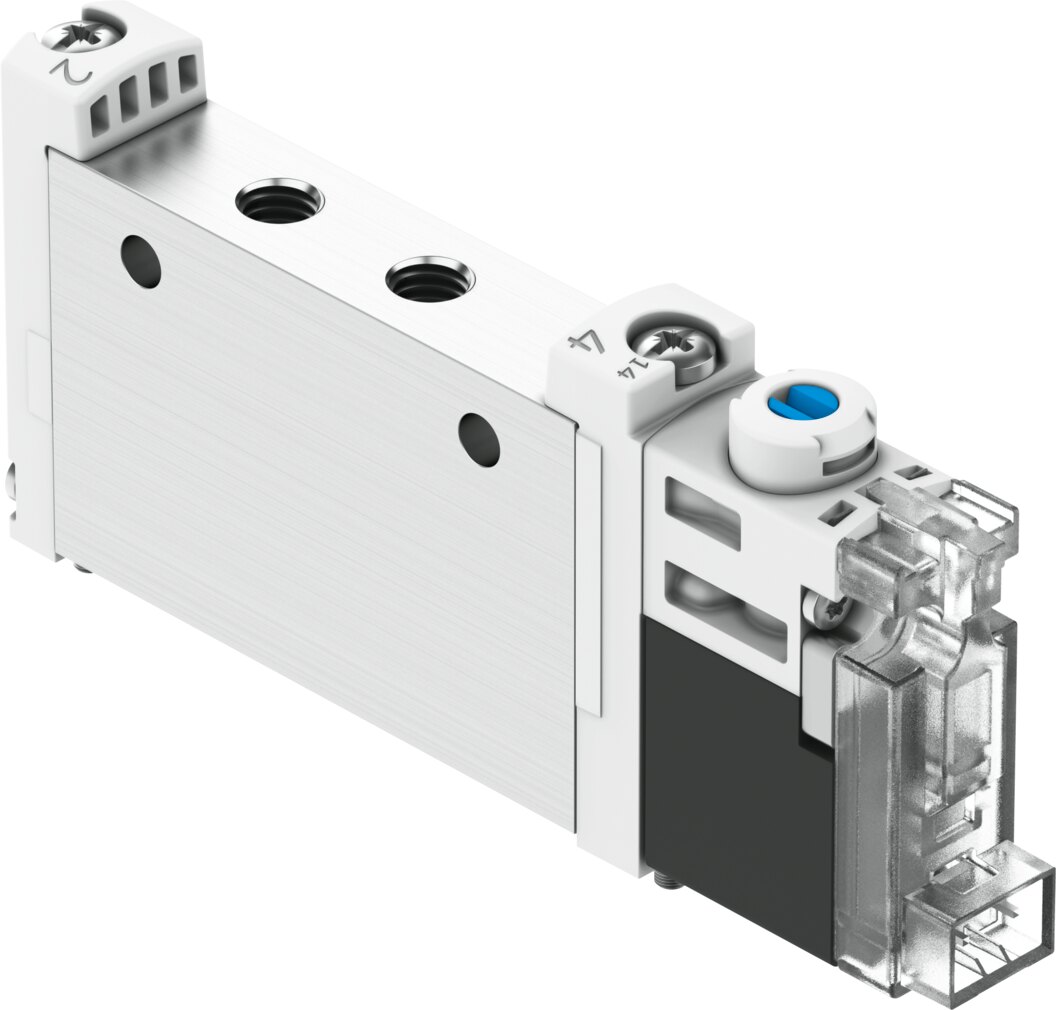

Solenoid valve 5/2 monostable, 10 mm VUVG-L10-M52-MT-Q4-1R8L - Festo 595108

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-L10-M52-MT-Q4-1R8L, function 5/2 monostable in valve size 10 mm. 24 V DC coil, reset by mechanical spring, internal pilot air.

Net
€78.17
excl. VAT
Item FES-595108
Manufacturer no. VUVG-L10-M52-MT-Q4-1R8L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L10-M52-MT-Q4-1R8L switches as a 5/2-way valve and returns to its normal position via a mechanical spring when the signal drops. It belongs to the VUVG series in valve size 10 mm.

Benefits

  • Reset: Mechanical spring, internal pilot air.
  • Voltage: 24 V DC.
  • Manual override: Detenting, non-detenting.

Application

Use the VUVG-L10-M52-MT-Q4-1R8L to control double-acting actuators directly. Pilot air is taken internally from the supply port. Installation on manifold rail, with through-hole, weight 0.06 kg. The data is derived from order type VUVG-L10-M52-MT-Q4-1R8L, see the Festo datasheet for further values.

Technical data

TypeVUVG-L10-M52-MT-Q4-1R8L
Festo part number595108

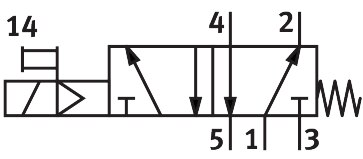

Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size10 mm
Operating voltage24 V DC
Type of resetMechanical spring
Manual overrideDetenting, non-detenting
Pilot air supplyInternal
Type of mountingOn manifold rail, with through-hole
Weight0.06 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-M52-MT-Q4-1R8L
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Function5/2 monostable
Actuation typeElectrical
SeriesVUVG
