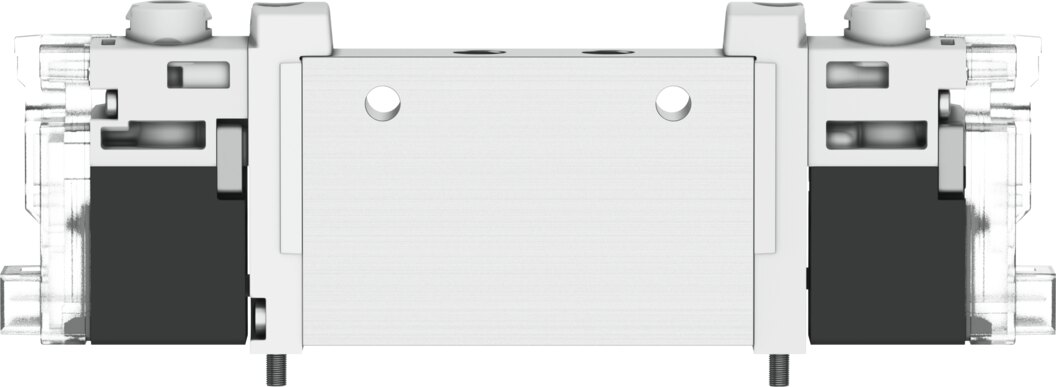

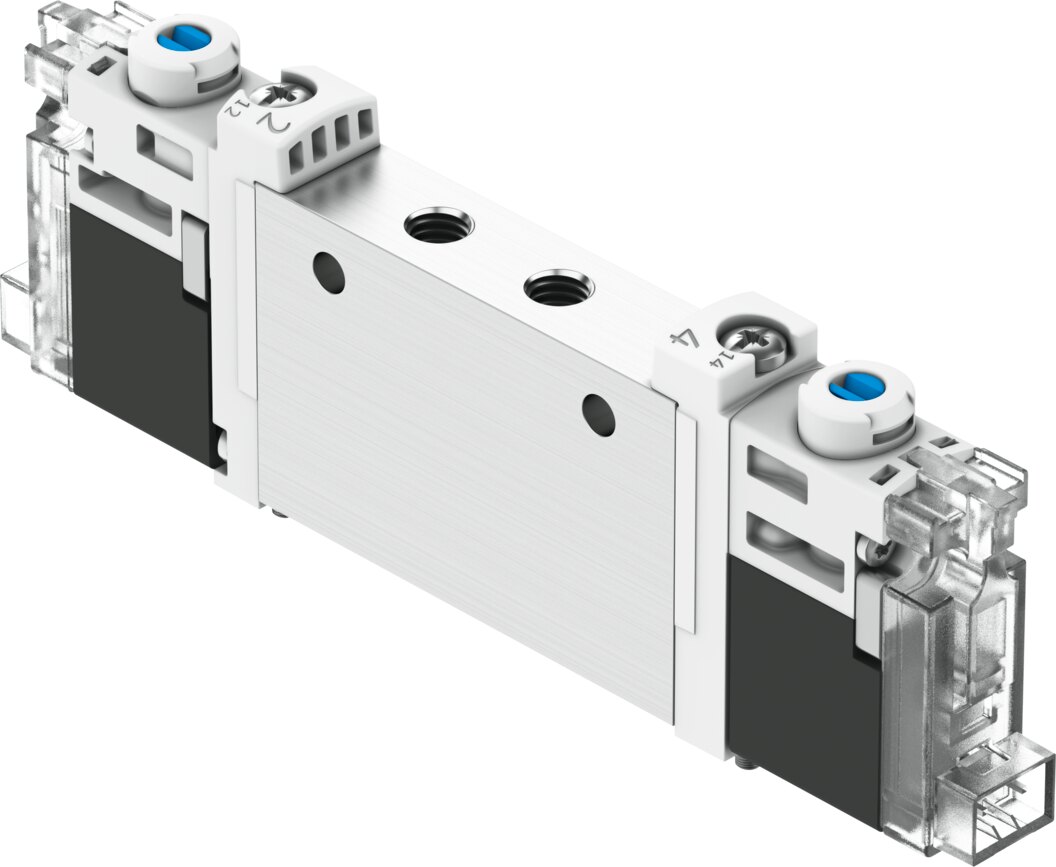

Solenoid valve 5/2 bistable, 10 mm, M5 VUVG-L10-B52-ZT-M5-1H2L-F1A - Festo 8164339

Festo ✓ Original product Brand new

VUVG solenoid valve with valve function 5/2 bistable: 220 l/min standard nominal flow, operating pressure -0.9 to 10 bar. Port M5, valve size 10 mm, 24 V DC coil with 0.8 W.

Net
€99.41
excl. VAT
Item FES-8164339
Manufacturer no. VUVG-L10-B52-ZT-M5-1H2L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L10-B52-ZT-M5-1H2L-F1A works as a 5/2-way impulse valve and stays in position after a short switching signal. Standard nominal flow is 220 l/min at a valve size of 10 mm.

Benefits

  • Flow rate: 220 l/min to DIN 1343 at valve size 10 mm, nominal size 3.2 mm.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.
  • Cleanroom: Class 5 to ISO 14644-1.
  • Pressure range: -0.9 to 10 bar, suitable for vacuum.

Application

Typical: double-acting cylinders and rotary actuators. External pilot air, pilot pressure 1.5 to 8 bar. Manual override detenting, non-detenting, concealed. Mounting on manifold rail, with through-hole, product weight 45 g. The medium is compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Oiled air is possible, but then permanently. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-L10-B52-ZT-M5-1H2L-F1A
Festo part number8164339
Valve function5/2-way, double solenoid
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate (to DIN 1343)220 l/min
Pneumatic working portM5
Operating voltage24 V DC
Operating pressure-0.9 to 10 bar
DesignPiston spool
ApprovalRCM Mark, c UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Nominal size3.2 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyExternal
OverlapPositive overlap
Pilot pressure1.5 to 8 bar
Suitability for vacuumYes
Changeover time9 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for ambient and media temperature-5 - 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Storage temperature-20 to 60 °C
Media temperature-5 to 50 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight45 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pilot air port 12/14M3
Pneumatic connection, port 1M5
Pneumatic connection, port 2M5
Pneumatic connection, port 3M5
Pneumatic connection, port 4M5
Pneumatic connection, port 5M5
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Material screwsCoated steel
Weight0.055 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-B52-ZT-M5-1H2L-F1A
EAN4052568611996
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
Nominal size DN [mm]3,2
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/2 bistable
Flow rate [l/min]220
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]10
Pneumatic connectionM5
Protection ratingIP40
Temperature (max.)50
