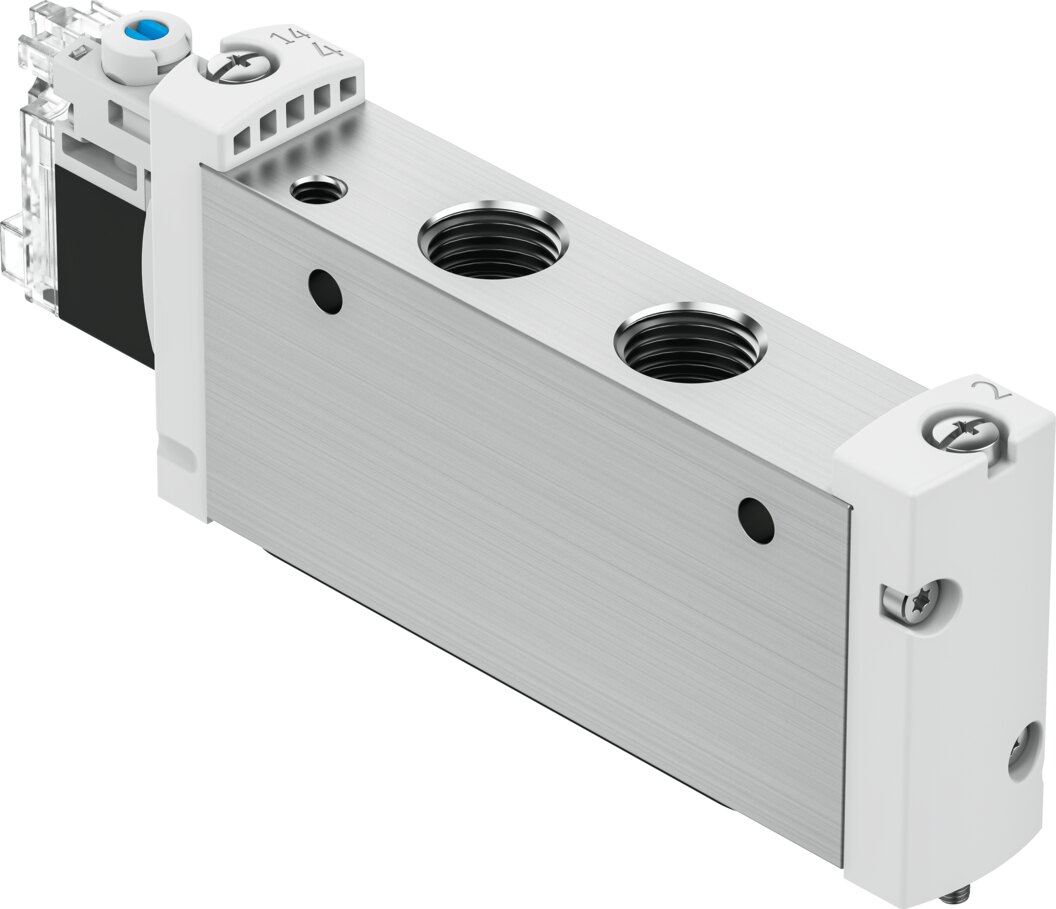

Solenoid valve 2x 3/2 normally closed, monostable, 14 mm, for manifold rail VUVG-B14-T32C-AZT-F-1T1L-F1A - Festo 8150402

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-B14-T32C-AZT-F-1T1L-F1A, function 2x 3/2 normally closed, monostable: 490 l/min standard nominal flow, operating pressure 1.5 to 10 bar. Flange connection for manifold rail, valve size 14 mm, 24 V DC coil with 1.0 W.

Net
€109.15
excl. VAT
Item FES-8150402
Manufacturer no. VUVG-B14-T32C-AZT-F-1T1L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-B14-T32C-AZT-F-1T1L-F1A contains two separately actuated 3/2-way functions, both closed in the normal position. In valve size 14 mm it reaches 490 l/min standard nominal flow.

Benefits

  • Flow and switching time: 490 l/min at valve size 14 mm, switches on in 10 ms and off in 29 ms.
  • Pressure range: 1.5 to 10 bar operating pressure.
  • Cleanroom: Class 6 to ISO 14644-1.
  • Coil: 22 V DC: 1.0 W, duty cycle 100 %.
  • Protection: Degree of protection IP40, ambient -5 to 60 °C.

Application

Use: single-acting cylinders, separate pilot circuits. External pilot air, pilot pressure 1.5 to 8 bar. Manual override detenting, non-detenting. Mounting on manifold rail, product weight 102 g. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 60 °C, ambient -5 to 60 °C. Lubricated operation possible, then always required. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-B14-T32C-AZT-F-1T1L-F1A
Festo part number8150402
Valve function2x3/2-way, closed, monostable
Type of actuationElectrical
Valve size14 mm
Standard nominal flow rate (to DIN 1343)490 l/min
Pneumatic working portFlange
Operating voltage24 V DC
Operating pressure1.5 to 10 bar
DesignPiston spool
Type of resetPneumatic spring
Approvalc UL us - Recognized (OL)
Degree of protectionIP40
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting
Type of pilotingPiloted
Pilot air supplyExternal
OverlapPositive overlap
Signal status displayLED
Pilot pressure1.5 to 8 bar
Maximum switching frequency3 Hz
Switching time off29 ms
Switching time on10 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal1600 µs
Maximum negative test pulse with 1 signal3000 µs
Characteristic coil data22 V DC: 1.0 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 6 to ISO 14644-1
Media temperature-5 to 60 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 60 °C
Product weight102 g
Electrical connectionVia sub-base
Type of mountingOn manifold rail
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Weight0.105 kg
ManufacturerFesto
Hersteller-NrVUVG-B14-T32C-AZT-F-1T1L-F1A
EAN4052568577186
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function2x3/2 closed monostable
Flow rate [l/min]490
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
SeriesVUVG
Betriebsdruck max [bar]10
Pneumatic connectionFlange
Protection ratingIP40
Temperaturbereich-5-60 °C
Temperature (max.)60
