Solenoid valve 5/3 closed centre, 14 mm, for manifold rail VUVG-B14-P53C-Z-F-P1 - Festo 8033544

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-B14-P53C-Z-F-P1, function 5/3 closed centre for 520 to 600 l/min at -0.9 to 10 bar operating pressure. Flange connection for manifold rail, valve size 14 mm, pilot interface to ISO 15218.

Net
€68.08
excl. VAT
Item FES-8033544
Manufacturer no. VUVG-B14-P53C-Z-F-P1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

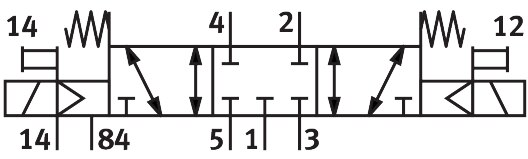

The solenoid valve VUVG-B14-P53C-Z-F-P1 is a 5/3-way valve that blocks all working ports in the mid-position. In valve size 14 mm it reaches 520 to 600 l/min standard nominal flow.

Benefits

  • Flow and switching time: 520 to 600 l/min at valve size 14 mm, switches on in 14 ms and off in 24 ms.
  • Pressure range: -0.9 to 10 bar, suitable for vacuum.
  • Corrosion protection: CRC 2 - Moderate corrosion stress.
  • Protection: Degree of protection IP65 with plug socket.
  • Piloting: Interface to ISO 15218.
  • Cleanroom: Class 5 to ISO 14644-1.

Application

The cylinder holds its position in the mid-position. External pilot air, pilot pressure 3 to 8 bar. Installation on manifold rail, product weight 65 g. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 60 °C, ambient -5 to 60 °C. Lubricated operation possible, then always required.

Technical data

TypeVUVG-B14-P53C-Z-F-P1
Festo part number8033544
Valve function5/3-way, mid-position closed
Type of actuationElectrical
Valve size14 mm
Standard nominal flow rate (to DIN 1343)520 to 600 l/min
Pneumatic working portFlange
Operating pressure-0.9 to 10 bar
DesignPiston spool
Type of resetMechanical spring
Approvalc UL us - Recognized (OL)
CE marking (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations, to UK regulations for electrical equipment
Certificate issuing authorityUL MH19482
Degree of protectionIP65, with electric pilot valve and plug socket
Nominal size5.6 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyExternal
OverlapPositive overlap
Pilot pressure3 to 8 bar
Suitability for vacuumYes
Switching time off24 ms
Switching time on14 ms
Changeover time20 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Media temperature-5 to 60 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 60 °C
Product weight65 g
Electrical connectionVia electric pilot valve
Type of mountingOn manifold rail
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVUVG-B14-P53C-Z-F-P1
EAN4052568429072
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
Nominal size DN [mm]5,6
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/3 closed
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
NormISO 15218
SeriesVUVG
Betriebsdruck max [bar]10
Pneumatic connectionFlange
Protection ratingIP65
Temperaturbereich-5-60 °C
Temperature (max.)60
