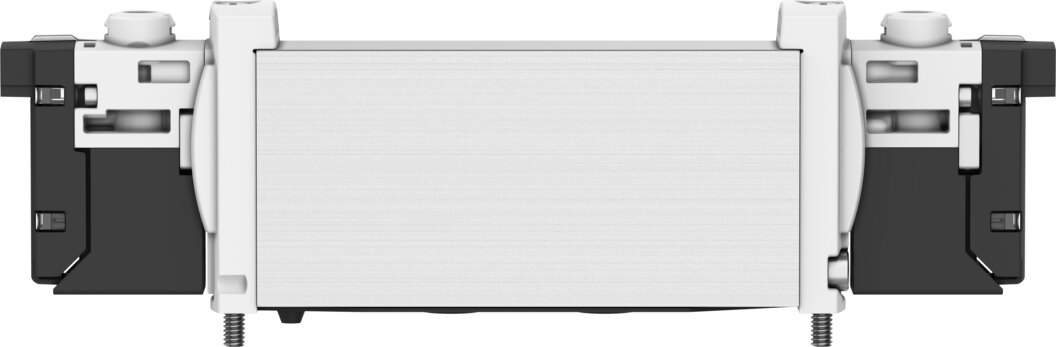

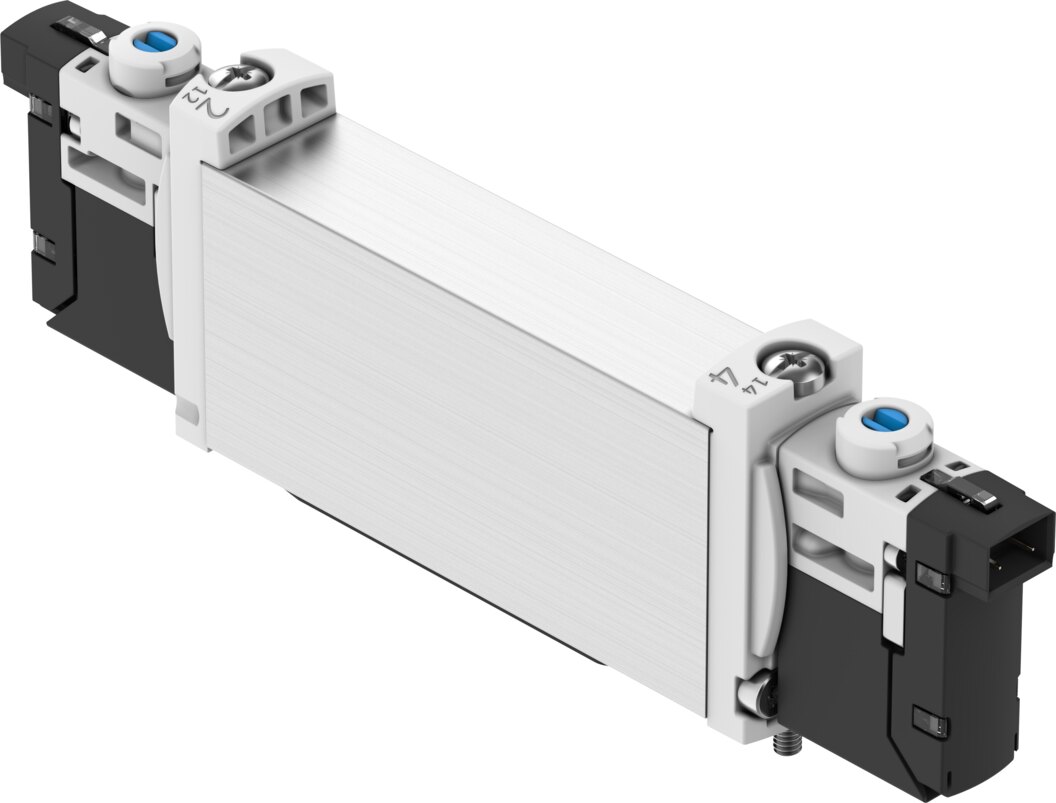

Solenoid valve 5/2-way bistable, valve size 14 mm, sub-base version VUVG-B14-B52-ZT-F-1H2RL - Festo 572199

Festo ✓ Original product Brand new

The solenoid valve VUVG-B14-B52-ZT-F-1H2RL with 5/2-way bistable function and 14 mm valve size controls double-acting cylinders with pulse control. Operating pressure -0.9 to 10 bar, sub-base version for mounting on a manifold rail. Housing in wrought aluminium alloy, seals in HNBR, NBR.

Net
€93.11
excl. VAT
Item FES-572199
Manufacturer no. VUVG-B14-B52-ZT-F-1H2RL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Valve function 5/2-way bistable at 14 mm valve size: the Festo solenoid valve VUVG-B14-B52-ZT-F-1H2RL controls double-acting cylinders with pulse control. With two solenoids it works as a pulse valve: a short pulse is enough and the position is then retained.

Benefits

  • Valve size 14 mm for compact valve arrangements
  • Operating pressure -0.9 to 10 bar, suitable for vacuum
  • Sub-base version for mounting on a manifold rail
  • External pilot air at 1.5 to 8 bar

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Mounting of the VUVG-B14-B52-ZT-F-1H2RL: on manifold rail.

Technical data

FeatureValue
TypeVUVG-B14-B52-ZT-F-1H2RL
Festo part number572199
SeriesVUVG

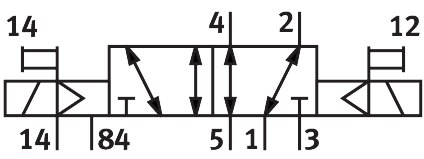

Valve function5/2-way bistable
Type of actuationElectrical
Valve size14 mm
Operating pressure-0.9 to 10 bar
DesignPiston spool
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyExternal
Pilot pressure1.5 to 8 bar
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.1 kg
ManufacturerFesto
Hersteller-NrVUVG-B14-B52-ZT-F-1H2RL
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
MediumCompressed air
Function5/2 bistable
Actuation typeElectrical
Betriebsdruck max [bar]10
Pneumatic connectionFlange
