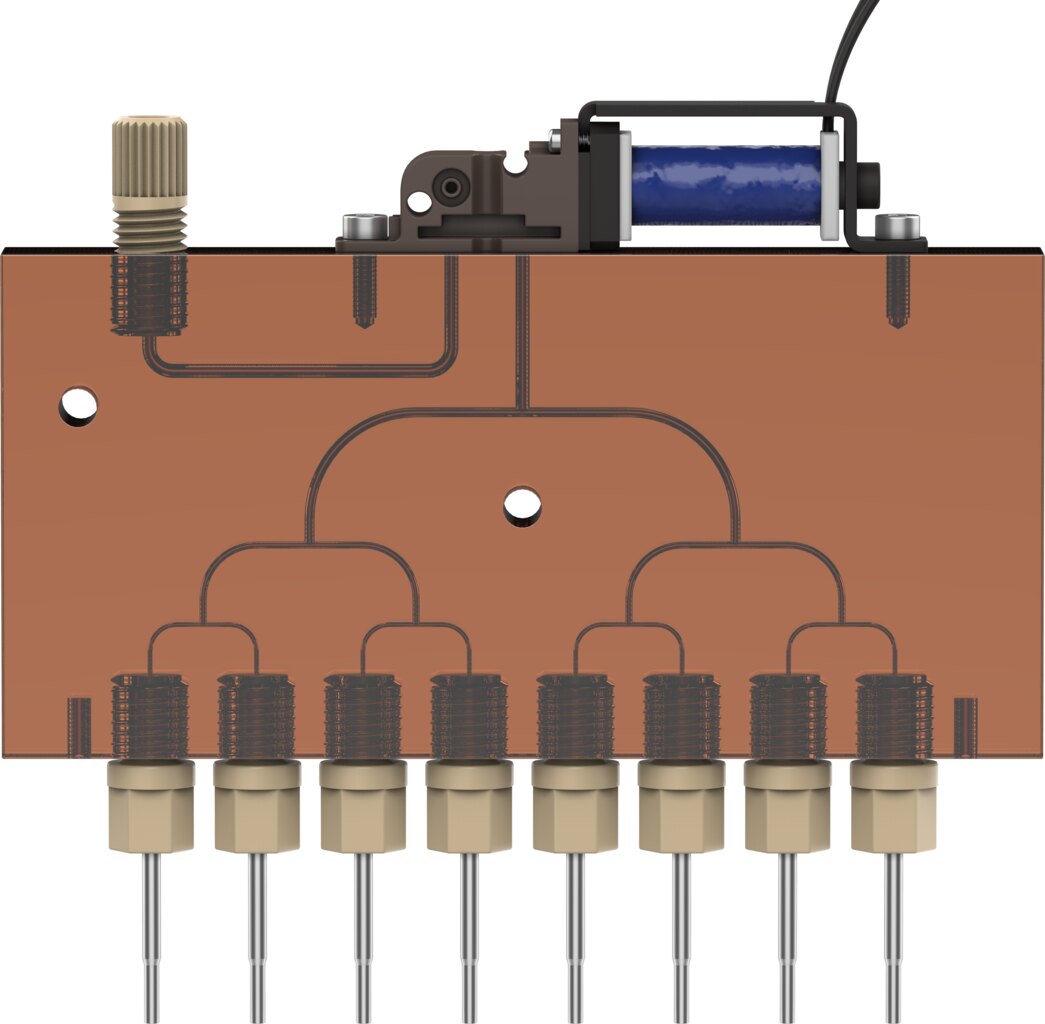

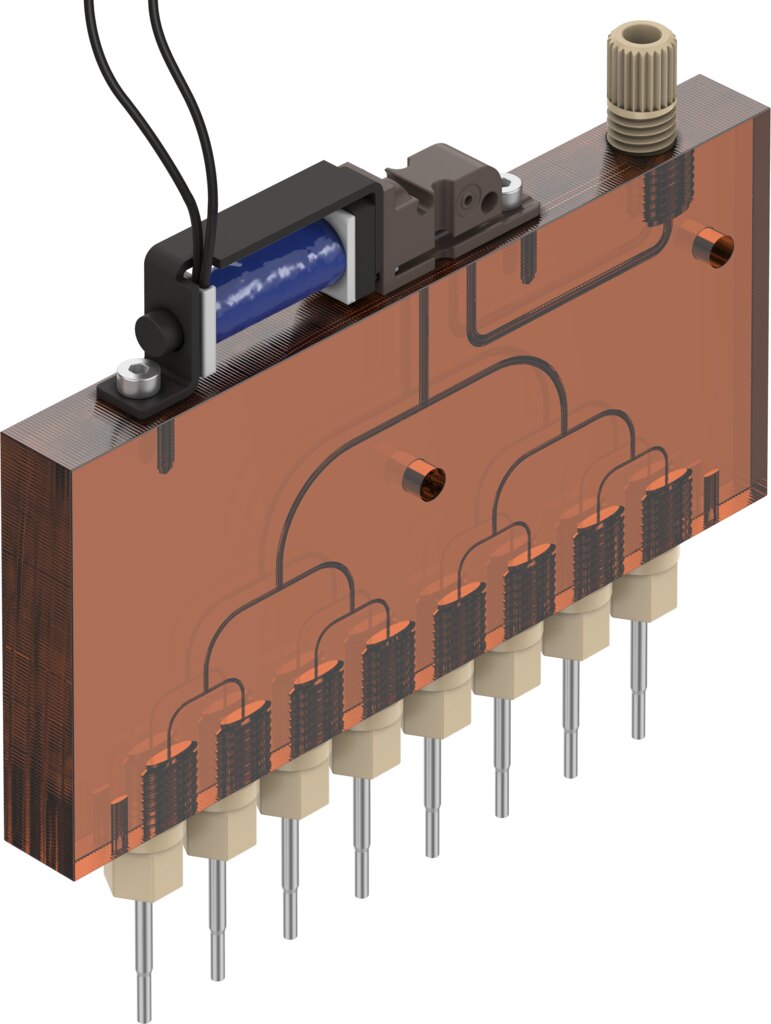

Dispensing head from 1 µl VTOI-A-V8-30D3-U14-08-V-S015-1 - Festo 8114038

Festo ✓ Original product Brand new

The dispensing head VTOI-A-V8-30D3-U14-08-V-S015-1 from Festo delivers very small liquid volumes via a fast-switching valve with dosing needle. Decisive are minimum dosing volume 1 µl, typical dosing precision ≤5% tip-to-tip CV, ≤ 3% Intra-run CV and dosing needle with nominal width 0.3 mm.

Net
€1,061.32
excl. VAT
Item FES-8114038
Manufacturer no. VTOI-A-V8-30D3-U14-08-V-S015-1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The dispensing head VTOI-A-V8-30D3-U14-08-V-S015-1 delivers very small liquid volumes via a fast-switching valve with dosing needle. Decisive are minimum dosing volume 1 µl, typical dosing precision ≤5% tip-to-tip CV, ≤ 3% Intra-run CV and dosing needle with nominal width 0.3 mm.

Benefits

  • Minimum dosing volume 1 µl
  • Typical dosing precision ≤5% tip-to-tip CV, ≤ 3% Intra-run CV
  • Dosing needle with nominal width 0.3 mm
  • Operating pressure -0.2 to 0.65 bar
  • Valve function 2/2-way, single solenoid, closed
  • Nominal operating voltage 24 V DC for control from standard controllers

Application

Typical tasks for VTOI-A-V8-30D3-U14-08-V-S015-1 are automated dosing processes that require reproducible volumes in the microlitre range. VTOI-A-V8-30D3-U14-08-V-S015-1 suits dosing tasks with repeatable small volumes, for example in laboratory and analysis devices.

Technical data

Order codeVTOI-A-V8-30D3-U14-08-V-S015-1
Festo part number8114038
Valve function2/2-way, single solenoid, closed
Operating pressure-0.2 to 0.65 bar
Internal volume10 µl fluid chamber valve, 178 µl distributor block with valve, needle and fittings
Nominal size0.8 mm
Nominal width of dosing needle0.3 mm
Length of dosing needle30 mm
Grid dimension9 mm
Sealing principleSoft
Mounting positionVertical
Type of resetMechanical spring
Type of pilotingDirect
Suitability for vacuumYes
Minimum dosing volume1 µl
Note on dosing volumeDepends on configuration, environment and application
Typical dosing precision≤5% tip-to-tip CV, ≤ 3% Intra-run CV
Note on dosing precisionDepends on configuration, environment and application
Duty cycle100%
Electrical power consumption2 W
Nominal operating voltage DC24 V
Permissible voltage fluctuations+/-10%
MediumLiquid media, Gaseous media
Note on the mediumMaximum particle size 20 µm
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature5 to 40 °C
Media temperature5 to 50 °C
Degree of protectionIP30
Note on degree of protectionIn mounted state
Ambient temperature5 to 40 °C
Product weight55 g
Electrical connectionOpen end
Cable length0.15 m
Wire endsStripped
Conductor nominal cross sectionAWG28
Type of mountingVia through-hole for M3 screw
Fluid connectionFemale thread 1/4-28 UNF-2B
Note on fluid connectionFitting enclosed for tubing with 3 mm outside diameter
Material of dosing needleHigh-alloy stainless steel
Material number of dosing needle1.4404
Note on materialsRoHS compliant
Materials in contact with the mediumPPS, High-alloy stainless steel
Type of actuationElectrical
Nominal altitude of use≤ 2000 m NHN
Relative air humidityNon-condensing
ManufacturerFesto
Hersteller-NrVTOI-A-V8-30D3-U14-08-V-S015-1
EAN4052568462383
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Function2/2 closed monostable
Actuation typeElectrical
Operating voltage24 V DC
Betriebsdruck max [bar]0
Protection ratingIP30
Temperature (max.)40
