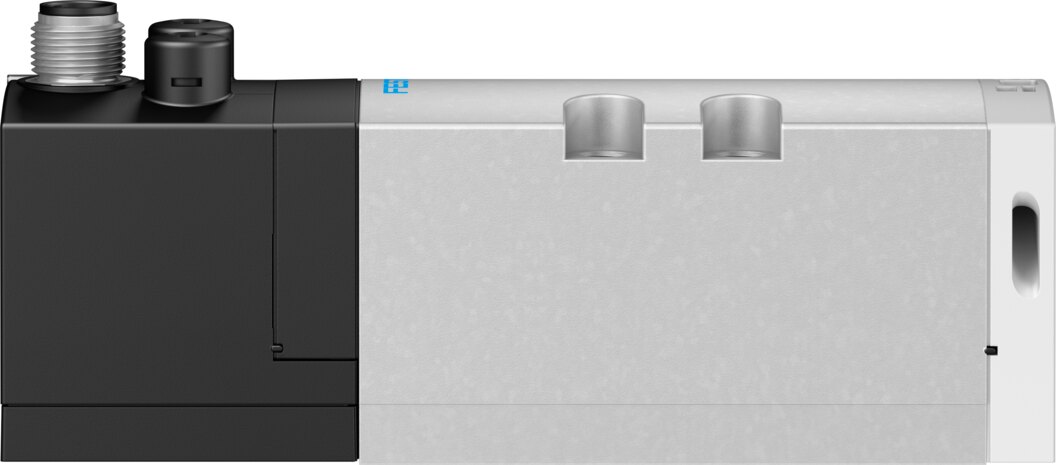

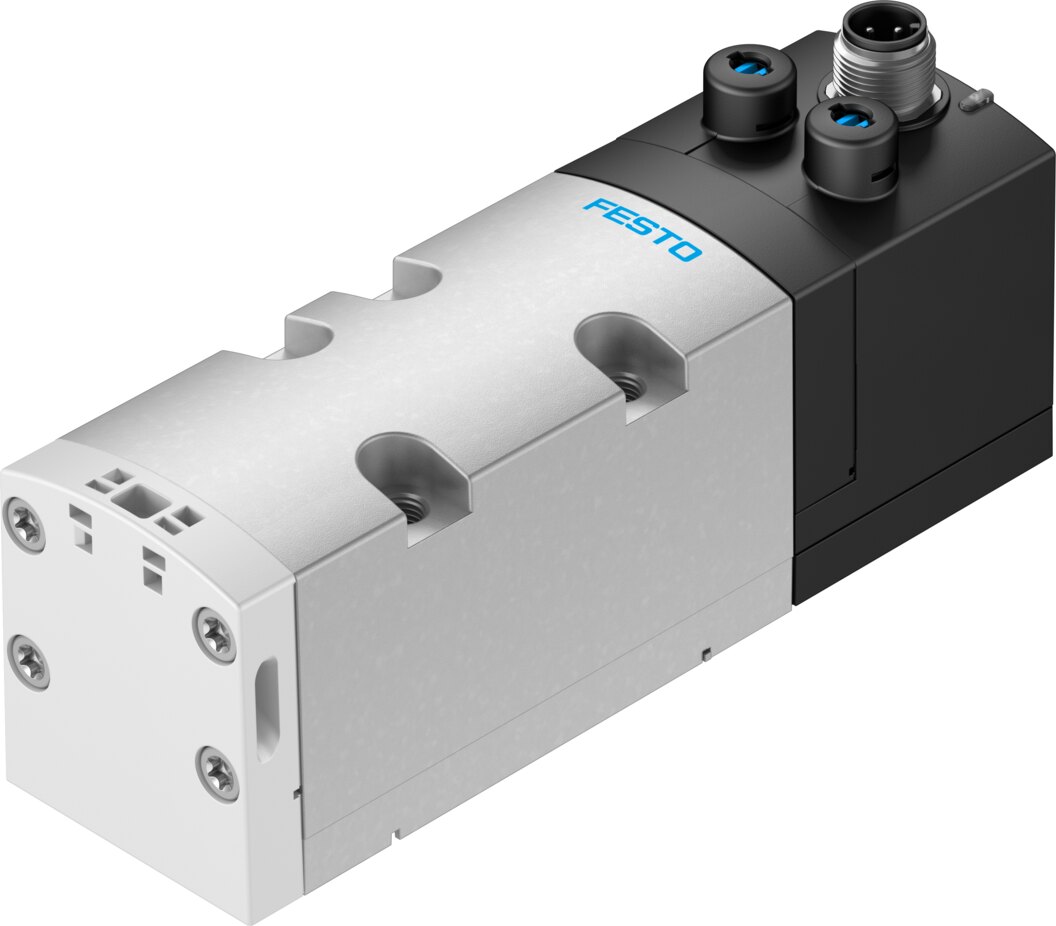

Solenoid valve VSVA-B-TR1-B52-ZD-D1-1R5L - Festo 8037117
Net
excl. VAT
€691.37
Item
FES-8037117
Manufacturer no.
VSVA-B-TR1-B52-ZD-D1-1R5L
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data

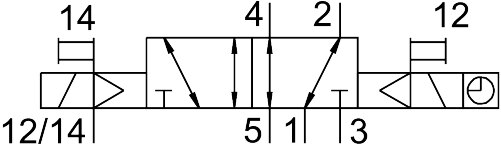

| Valve function | 5/2-way, double solenoid |
|---|---|
| Type of actuation | Electrical |
| Construction width | 42 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 1300 l/min |
| pneumatic working port | Sub-base size 1 to ISO 5599-1, G1/4 |
| Operating voltage | 24 V DC |
| Operating pressure | -0.9 ... 16 bar |
| Design | Piston gate valve |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Degree of protection | IP65, NEMA 4 |
| Nominal size | 11 mm |
| Grid dimension | 43 mm |
| Exhaust-air function | Can be throttled, Via throttle plate, Via individual sub-base |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 5599-1 |
| Manual override | Detenting, Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Any |
| lap | Overlap |
| Signal status display | LED |
| Pilot pressure | 3 ... 10 bar |
| Flow rate of valve | 2000 l/min |
| Flow rate of valve on individual sub-base | 1400 l/min |
| Flow rate of pneumatically interlinked valve | 1300 l/min |
| Switching time reversal | 16 ms |
| Shutdown time | 4.5 h |
| Charging time | 2 min |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1400 µs |
| Max. negative test pulse with 1 signal | 900 µs |
| Current consumption | Max. 130 mA to 4 s during charging, Max. 65mA after 4s during Edition, 6 mA after charging |
| Characteristic coil data | 24 V DC: 1.6 W |
| Permissible voltage fluctuations | +/-10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5 ... 50 °C |
| Relative air humidity | 0 - 90% |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 ... 50 °C |
| Product weight | 460 g |
| Electrical connection | 3-pin, M12x1, Central plug, Round design |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base size 1 to ISO 5599-1 |
| Pilot exhaust port 82/84 | Ducted, Not ducted as per standard, Either: |
| Pneumatic connection, port 1 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 2 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 3 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 4 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 5 | Sub-base size 1 to ISO 5599-1 |
| Note on materials | RoHS compliant |
| Material seals | Fluoro rubber, HNBR, NBR |
| Material housing | Die-cast aluminium, PA |
| Material screws | Steel, Galvanised |
| Weight | 0.49 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-B-TR1-B52-ZD-D1-1R5L |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
