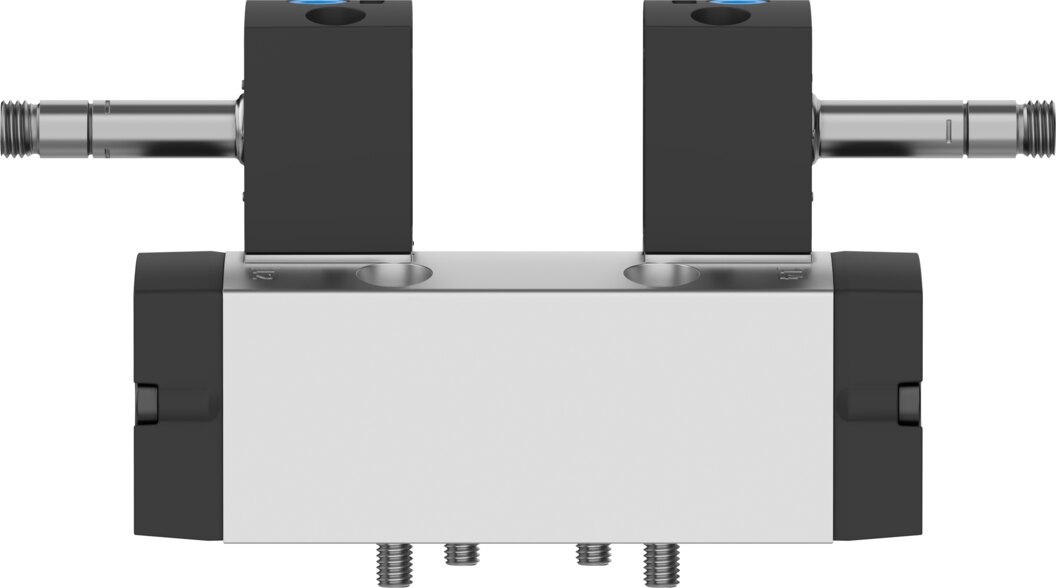

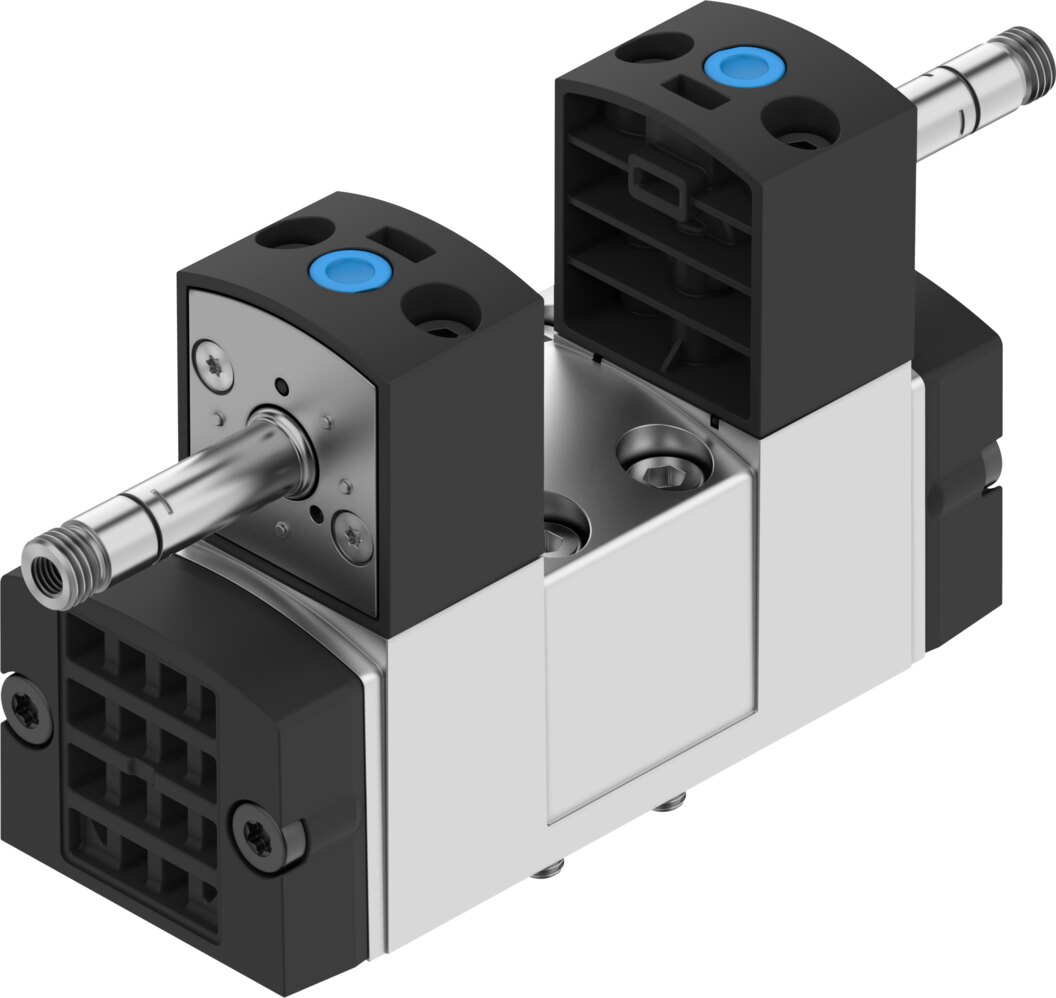

Solenoid valve 2x3/2-way, open/closed, monostable, ISO 5599-1, width 42 mm VSVA-B-T32H-MH-D1-F8 - Festo 8198564

Festo ✓ Original product Brand new

As a double 3/2-way valve, open and closed for sub-base size 1 to ISO 5599-1, the Festo VSVA-B-T32H-MH-D1-F8 provides a nominal flow rate of 1400 l/min. Operating pressure 3 to 10 bar, switching time 22 ms on, 25 ms off.

Net
€150.23
excl. VAT
Item FES-8198564
Manufacturer no. VSVA-B-T32H-MH-D1-F8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo solenoid valve VSVA-B-T32H-MH-D1-F8 from the VSVA series is a double 3/2-way valve, open and closed to ISO 5599-1 with 1400 l/min nominal flow.

Benefits

  • Standard interface: the 2x3/2 valve fits sub-base size 1 to ISO 5599-1, width 42 mm and is interchangeable with valves to the same standard.
  • Flow rate: 1400 l/min nominal flow to ISO 8778, 1100 l/min on individual sub-base, 1100 l/min pneumatically interlinked.
  • Switching times: 22 ms on, 25 ms off, up to 5 Hz switching frequency.
  • Pressure range: 3 to 10 bar.
  • Degree of protection: IP65, NEMA 4.
  • Manual override: non-detenting.

Application

One 3/2-way function is open at rest and the other closed, and each can be switched separately. Pilot air internal, pilot pressure 3 to 10 bar, ambient temperature -10 to 50 °C, product weight 400 g, medium compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

TypeVSVA-B-T32H-MH-D1-F8
Festo part number8198564

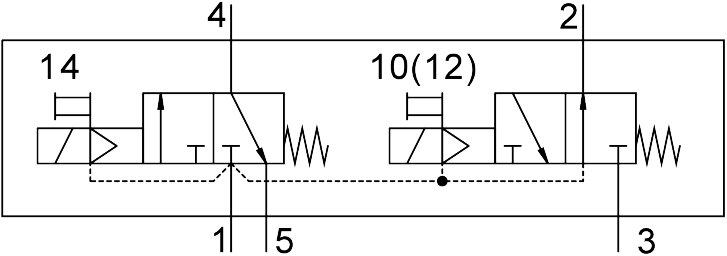

Valve function2x3/2-way, open/closed, monostable
Type of actuationElectrical
Construction width42 mm
Nominal flow rate standardised according to ISO 87781400 l/min
Pneumatic working portSub-base size 1 to ISO 5599-1
Operating pressure3 to 10 bar
DesignPiston gate valve
Type of resetMechanical spring
Degree of protectionIP65, NEMA 4
Nominal size8 mm
Grid dimension43 mm
Exhaust-air functionCan be throttled, Via individual sub-base
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideNon-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
LapOverlap
Pilot pressure3 to 10 bar
Suitability for vacuumNo
B value0.2
C value5.479 l/sbar
Flow rate of valve1300 l/min
Flow rate of valve on individual sub-base1100 l/min
Valve flow rate, pneumatically linked, flow optimized1200 l/min
Flow rate of pneumatically interlinked valve1100 l/min
Max. switching frequency5 Hz
Switching time off25 ms
Switching time on22 ms
Duty cycle100%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 50 °C
Relative air humidity0 - 90%
Sound pressure level85 dB(A)
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 50 °C
Max. tightening torque for valve mounting1 Nm
Product weight400 g
Type of mountingOn sub-base
Pilot exhaust port 82M5, Not ducted
Pilot exhaust port 84M5, Not ducted
Pilot air port 12Sub-base size 1 to ISO 5599-1
Pilot air port 14Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsNBR
Material housingDie-cast aluminium
Material screwsSteel
ManufacturerFesto
Hersteller-NrVSVA-B-T32H-MH-D1-F8
EAN4052568656133
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]8
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air
Function2x3/2 open/closed monostable
Flow rate [l/min]1400
Actuation typeElectrical
NormISO 5599-1, ISO 15218
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperaturbereich-10-50 °C
Temperature (max.)50
