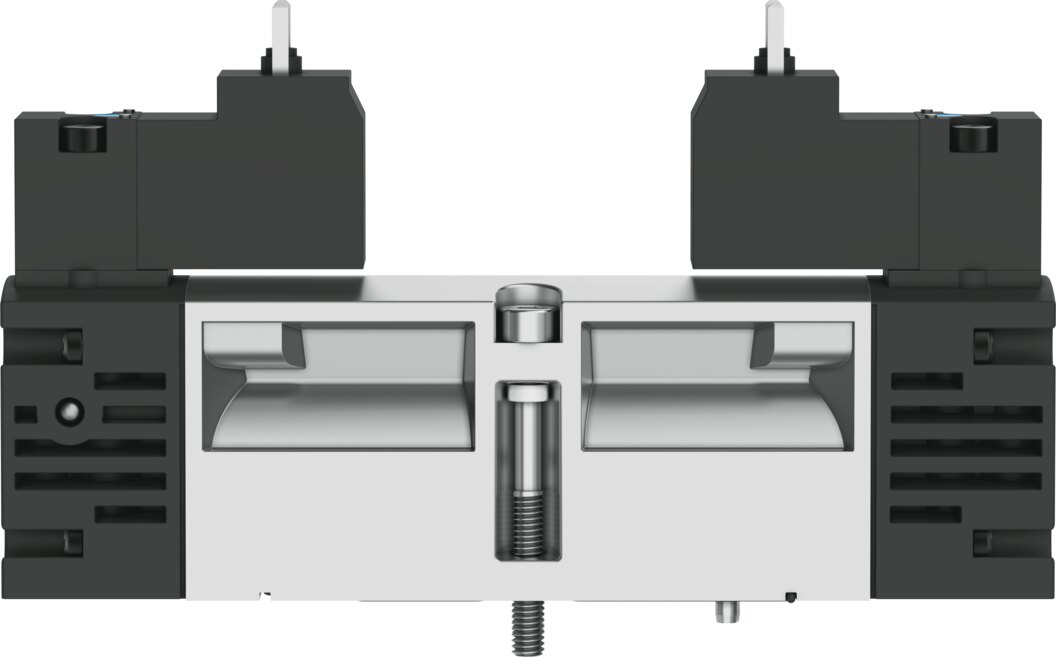

Solenoid valve 2x3/2-way, open/closed, monostable, ISO 15407-1, width 26 mm VSVA-B-T32H-AH-A1-1C1 - Festo 547066
The standard valve VSVA-B-T32H-AH-A1-1C1 works as a double 3/2-way valve, open and closed, delivers up to 900 l/min nominal flow and mounts on sub-base size 26 mm to ISO 15407-1. Operating pressure 2 to 10 bar, 24 V DC coil with 1.8 W, electrical connection type C to DIN EN 175301-803, without PE conductor.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

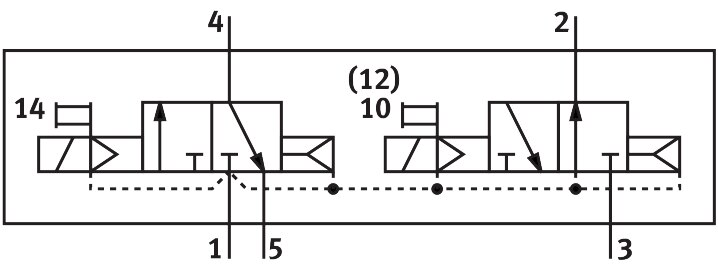

The Festo solenoid valve VSVA-B-T32H-AH-A1-1C1 from the VSVA series is a double 3/2-way valve, open and closed to ISO 15407-1 with 900 l/min nominal flow.
Benefits
- Standardised hole pattern: Sub-base size 26 mm to ISO 15407-1, so the 2x3/2 valve can be replaced without changing the sub-base.
- Flow rate: 900 l/min nominal flow to DIN 1343, 1000 l/min on individual sub-base, 900 l/min pneumatically interlinked.
- Manual override: non-detenting.
- Switching times: 20 ms on, 28 ms off.
- Coil: 24 V DC, 1.8 W, duty cycle 100%.
- Electrical connection: type C to DIN EN 175301-803, without PE conductor.
Application
One 3/2-way function is open at rest and the other closed, and each can be switched separately. The operating medium is compressed air to ISO 8573-1:2010 [7:4:4], permissible ambient temperature -5 to 50 °C, product weight 305 g.
Technical data
| Type | VSVA-B-T32H-AH-A1-1C1 |
|---|---|
| Festo part number | 547066 |
| Valve function | 2x3/2-way, open/closed, monostable |
| Type of actuation | Electrical |
| Valve size | 26 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 900 l/min |
| Pneumatic working port | Sub-base size 26 mm to ISO 15407-1, Sub-base size 01 to VDMA 24563, G1/4 |
| Operating voltage | 24 V DC |
| Operating pressure | 2 to 10 bar |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Approval | c UL us - Recognised (Oil) |
| Degree of protection | IP65, NEMA 4 |
| Nominal size | 9 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 15407-1, VDMA 24563 |
| Manual override | Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Lap | Overlap |
| Signal status display | LED |
| Pilot pressure | 3 to 10 bar |
| Flow rate of valve | 1250 l/min |
| Flow rate of valve on individual sub-base | 1000 l/min |
| Flow rate of pneumatically interlinked valve | 900 l/min |
| Switching time off | 28 ms |
| Switching time on | 20 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1800 µs |
| Max. negative test pulse with 1 signal | 800 µs |
| Characteristic coil data | 24 V DC: 1.8 W |
| Permissible voltage fluctuations | -15% / +10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5 to 50 °C |
| Relative air humidity | 0 - 90% |
| Sound pressure level | 85 dB(A) |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 50 °C |
| Max. tightening torque for valve mounting | 2 Nm |
| Product weight | 305 g |
| Electrical connection | Type C, To DIN EN 175301-803, Without PE conductor |
| Type of mounting | On sub-base |
| Auxiliary pilot air port 12 | Sub-base size 26 mm to ISO 15407-1 |
| Auxiliary pilot air port 14 | Sub-base size 26 mm to ISO 15407-1 |
| Pilot exhaust port 82/84 | Ducted, Not ducted as per standard |
| Pneumatic connection, port 1 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 2 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 3 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 4 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 5 | Sub-base size 26 mm to ISO 15407-1 |
| Pilot control interface | To ISO 15218 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Die-cast aluminium |
| Material screws | Steel, Galvanised |
| Weight | 0.31 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-B-T32H-AH-A1-1C1 |
| EAN | 4052568185824 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 9 |
| Seal material | HNBR, NBR |
| Housing material | Die-cast aluminium |
| Medium | Compressed air |
| Function | 2x3/2 open/closed monostable |
| Flow rate [l/min] | 900 |
| Actuation type | Electrical |
| Norm | DIN EN 175301-803, DIN ISO 15407-1, ISO 15218, VDMA 24563 |
| Series | VSVA |
| Betriebsdruck max [bar] | 10 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
