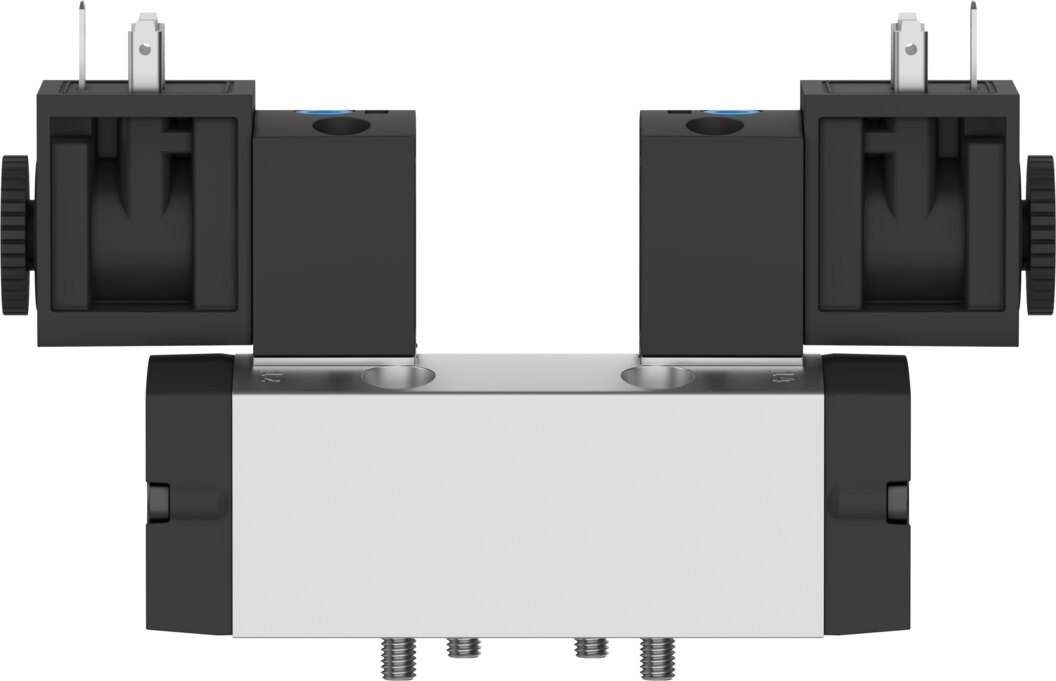

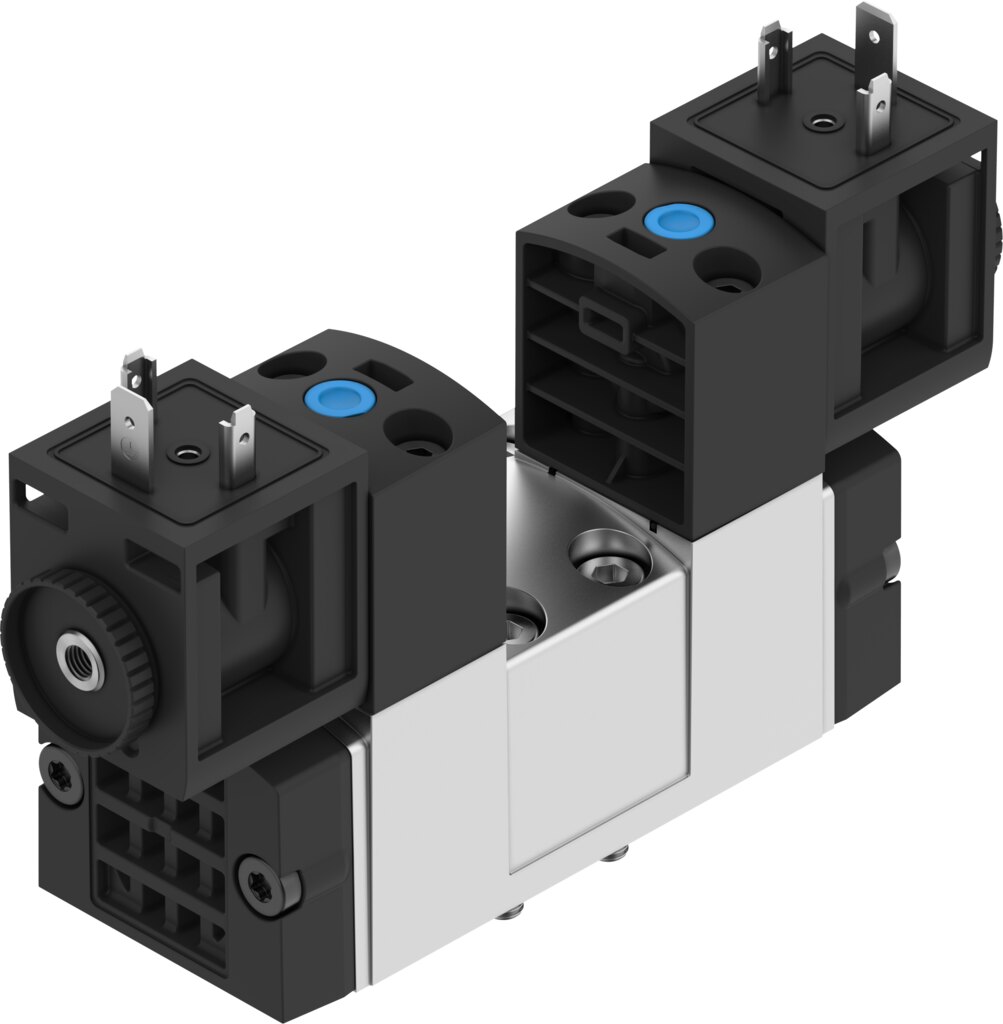

Solenoid valve 5/3-way, pressurised, ISO 5599-1, width 42 mm VSVA-B-P53U-H-D1-F8-1A1 - Festo 8033737

Festo ✓ Original product Brand new

The standard valve VSVA-B-P53U-H-D1-F8-1A1 works as a 5/3-way valve, mid-position pressurised, delivers up to 1600 l/min nominal flow and mounts on sub-base size 1 to ISO 5599-1. Operating pressure 3 to 10 bar, 24 V DC coil with 2.6 W, electrical connection type A to EN 175301-803.

Net
€190.08
excl. VAT
Item FES-8033737
Manufacturer no. VSVA-B-P53U-H-D1-F8-1A1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo solenoid valve VSVA-B-P53U-H-D1-F8-1A1 from the VSVA series is a 5/3-way valve, mid-position pressurised to ISO 5599-1 with 1600 l/min nominal flow.

Benefits

  • Standard interface: the 5/3 valve fits sub-base size 1 to ISO 5599-1, width 42 mm and is interchangeable with valves to the same standard.
  • Flow rate: 1600 l/min nominal flow to ISO 8778, 1300 l/min on individual sub-base, 1200 l/min pneumatically interlinked.
  • Coil: 24 V DC, 2.6 W, duty cycle 100%.
  • Electrical connection: type A to EN 175301-803.
  • Pressure range: 3 to 10 bar.
  • Degree of protection: IP65, NEMA 4.

Application

In the mid-position both working ports are pressurised and the piston is loaded from both sides. The VSVA-B-P53U-H-D1-F8-1A1 is designed for compressed air to ISO 8573-1:2010 [7:4:4] at -10 to 50 °C ambient temperature, pilot air internal.

Technical data

TypeVSVA-B-P53U-H-D1-F8-1A1
Festo part number8033737
Valve function5/3-way, pressurised
Type of actuationElectrical
Construction width42 mm
Nominal flow rate standardised according to ISO 87781600 l/min
Pneumatic working portSub-base size 1 to ISO 5599-1
Operating voltage24 V DC
Operating pressure3 to 10 bar
DesignPiston gate valve
Type of resetMechanical spring
Degree of protectionIP65, NEMA 4
Nominal size8 mm
Grid dimension43 mm
Exhaust-air functionCan be throttled, Via individual sub-base
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideNon-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
LapOverlap
Pilot pressure3 to 10 bar
Suitability for vacuumNo
B value0.14
C value6.799 l/sbar
Flow rate of valve1500 l/min
Flow rate of valve on individual sub-base1300 l/min
Valve flow rate, pneumatically linked, flow optimized1400 l/min
Flow rate of pneumatically interlinked valve1200 l/min
Max. switching frequency5 Hz
Switching time off55 ms
Switching time on22 ms
Switching time reversal27 ms
Duty cycle100%
Characteristic coil data24 V DC: 2.6 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 50 °C
Relative air humidity0 - 90%
Sound pressure level85 dB(A)
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 50 °C
Max. tightening torque for valve mounting1 Nm
Product weight488 g
Electrical connectionType A, To EN 175301-803
Type of mountingOn sub-base
Pilot exhaust port 82M5, Not ducted
Pilot exhaust port 84M5, Not ducted
Pilot air port 12Sub-base size 1 to ISO 5599-1
Pilot air port 14Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsNBR
Material housingDie-cast aluminium
Material screwsSteel
ManufacturerFesto
Hersteller-NrVSVA-B-P53U-H-D1-F8-1A1
EAN4052568655235
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]8
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air
Function5/3 pressurised
Flow rate [l/min]1600
Actuation typeElectrical
NormDIN EN 175301-803, ISO 5599-1, ISO 15218
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperaturbereich-10-50 °C
Temperature (max.)50
