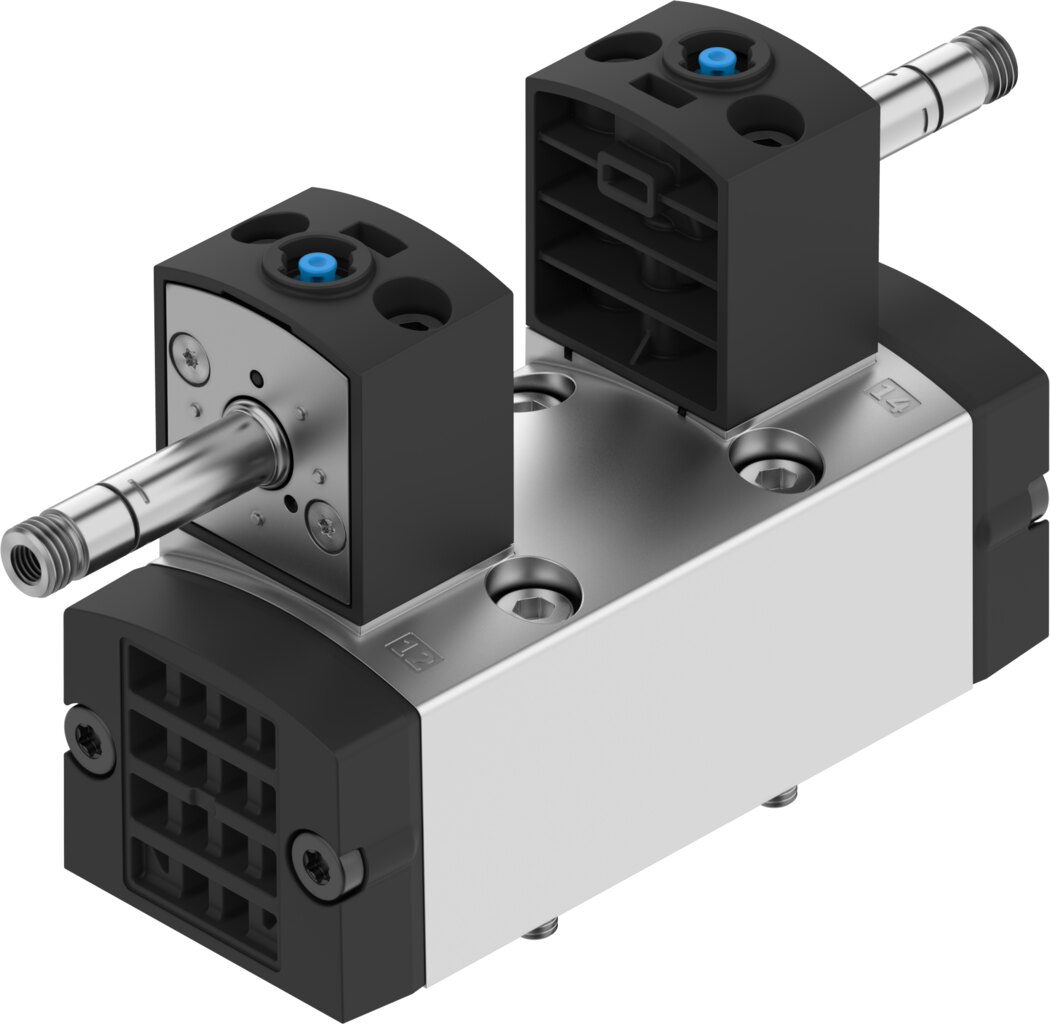

Basic valve 5/3-way, pressurised, ISO 15407-1, width 26 mm VSVA-B-P53U-A1-P1 - Festo 546743
1000 l/min nominal flow on sub-base size 26 mm to ISO 15407-1: the Festo basic valve VSVA-B-P53U-A1-P1 operates as a 5/3-way valve, mid-position pressurised. Operating pressure 3 to 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
5/3-way valve, mid-position pressurised VSVA-B-P53U-A1-P1 by Festo: 1000 l/min nominal flow, width 26 mm, designed to ISO 15407-1.
Benefits
- Standard interface: the 5/3 valve fits sub-base size 26 mm to ISO 15407-1, width 26 mm and is interchangeable with valves to the same standard.
- Flow rate: 1000 l/min nominal flow to DIN 1343, 1100 l/min on individual sub-base, 1000 l/min pneumatically interlinked.
- Pressure range: 3 to 10 bar.
- Degree of protection: IP65, NEMA 4.
Application
In the mid-position both working ports are pressurised and the piston is loaded from both sides. Pilot air internal, pilot pressure 3 to 10 bar, ambient temperature -5 to 50 °C, product weight 229 g, medium compressed air to ISO 8573-1:2010 [7:4:4].
Technical data
| Type | VSVA-B-P53U-A1-P1 |
|---|---|
| Festo part number | 546743 |
| Valve function | 5/3-way, pressurised |
| Type of actuation | Electrical |
| Valve size | 26 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 1000 l/min |
| Pneumatic working port | Sub-base size 26 mm to ISO 15407-1, Sub-base size 01 to VDMA 24563, G1/4 |
| Operating pressure | 3 to 10 bar |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Approval | c UL us - Recognised (Oil) |
| Degree of protection | IP65, NEMA 4 |
| Nominal size | 9 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 15407-1, VDMA 24563 |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Lap | Overlap |
| Signal status display | LED |
| Pilot pressure | 3 to 10 bar |
| Flow rate of valve | 1400 l/min |
| Flow rate of valve on individual sub-base | 1100 l/min |
| Flow rate of pneumatically interlinked valve | 1000 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5 to 50 °C |
| Relative air humidity | 0 - 90% |
| Sound pressure level | 85 dB(A) |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 50 °C |
| Max. tightening torque for valve mounting | 1.8 to 2.2 Nm |
| Product weight | 229 g |
| Type of mounting | On sub-base |
| Auxiliary pilot air port 12 | Sub-base size 26 mm to ISO 15407-1 |
| Auxiliary pilot air port 14 | Sub-base size 26 mm to ISO 15407-1 |
| Pilot exhaust port 82/84 | Ducted, Not ducted as per standard |
| Pneumatic connection, port 1 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 2 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 3 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 4 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 5 | Sub-base size 26 mm to ISO 15407-1 |
| Pilot control interface | To ISO 15218 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Die-cast aluminium |
| Material screws | Steel, Galvanised |
| Weight | 0.25 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-B-P53U-A1-P1 |
| EAN | 4052568185053 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 9 |
| Seal material | HNBR, NBR |
| Housing material | Die-cast aluminium |
| Medium | Compressed air |
| Function | 5/3 pressurised |
| Flow rate [l/min] | 1000 |
| Actuation type | Electrical |
| Norm | DIN ISO 15407-1, ISO 15218, VDMA 24563 |
| Series | VSVA |
| Betriebsdruck max [bar] | 10 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
