Solenoid valve 5/3 exhausted, ISO 5599-1, width 52 mm VSVA-B-P53E-ZD-D2-1R5L - Festo 567008
As a 5/3-way valve, mid-position exhausted for sub-base size 2 to ISO 5599-1, the Festo VSVA-B-P53E-ZD-D2-1R5L provides a nominal flow rate of 2700 l/min. Operating pressure -0.9 to 16 bar, 24 V DC coil with 1.6 W, electrical connection 3-pin, M12x1, central plug, round design.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 2700 l/min nominal flow, the VSVA-B-P53E-ZD-D2-1R5L supplies actuators and mounts on sub-base size 2 to ISO 5599-1. Valve function: 5/3 exhausted.
Benefits
- Standard interface: the 5/3 valve fits sub-base size 2 to ISO 5599-1, width 52 mm and is interchangeable with valves to the same standard.
- Flow rate: 2700 l/min nominal flow to DIN 1343, 2300 l/min on individual sub-base, 2700 l/min pneumatically interlinked.
- Switching times: 23 ms on, 60 ms off.
- Coil: 24 V DC, 1.6 W, duty cycle 100%.
- Electrical connection: 3-pin, M12x1, central plug, round design.
- Pressure range: -0.9 to 16 bar.
Application

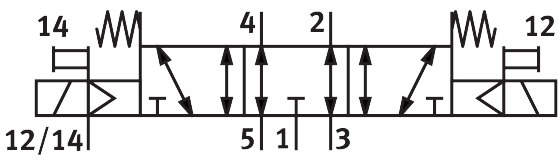

In the mid-position both working ports are exhausted, so the actuator can be moved without force. Pilot air external, pilot pressure 3 to 10 bar, ambient temperature -5 to 50 °C, product weight 780 g, medium compressed air to ISO 8573-1:2010 [7:4:4].
Technical data
| Type | VSVA-B-P53E-ZD-D2-1R5L |
|---|---|
| Festo part number | 567008 |
| Valve function | 5/3 exhausted |
| Type of actuation | Electrical |
| Construction width | 52 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 2700 l/min |
| Pneumatic working port | Sub-base size 2 to ISO 5599-1, G3/8 |
| Operating voltage | 24 V DC |
| Operating pressure | -0.9 to 16 bar |
| Design | Piston gate valve |
| Approval | C-Tick, c CSA us (OL), c UL us - Recognised (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Degree of protection | IP65, NEMA 4 |
| Nominal size | 15 mm |
| Grid dimension | 59 mm |
| Exhaust-air function | Can be throttled, Via throttle plate, Via individual sub-base |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 5599-1 |
| Manual override | Detenting, Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Any |
| Lap | Overlap |
| Signal status display | LED |
| Pilot pressure | 3 to 10 bar |
| Flow rate of valve | 3600 l/min |
| Flow rate of valve on individual sub-base | 2300 l/min |
| Flow rate of pneumatically interlinked valve | 2700 l/min |
| Switching time off | 60 ms |
| Switching time on | 23 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1000 µs |
| Max. negative test pulse with 1 signal | 3500 µs |
| Max. current consumption | 72 mA |
| Nominal pick-up current per solenoid coil | 165 mA to 30 ms |
| Nominal current with current reduction | 35 mA after 30 ms |
| Characteristic coil data | 24 V DC: 1.6 W |
| Permissible voltage fluctuations | +/-10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5 to 50 °C |
| Relative air humidity | 0 - 90% |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 50 °C |
| Product weight | 780 g |
| Electrical connection | 3-pin, M12x1, Central plug, Round design |
| Type of mounting | On sub-base |
| Pilot air port 12/14 | Sub-base size 2 to ISO 5599-1 |
| Pilot exhaust port 82/84 | Ducted, Not ducted as per standard, Either: |
| Pneumatic connection, port 1 | Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 2 | Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 3 | Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 4 | Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 5 | Sub-base size 2 to ISO 5599-1 |
| Note on materials | RoHS compliant |
| Material seals | Fluoro rubber, HNBR, NBR |
| Material housing | Die-cast aluminium, PA |
| Material screws | Steel, Galvanised |
| Weight | 0.8 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-B-P53E-ZD-D2-1R5L |
| EAN | 4052568215026 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 15 |
| Medium | Compressed air |
| Function | 5/3 exhausted |
| Flow rate [l/min] | 2700 |
| Actuation type | Electrical |
| Norm | ISO 5599-1 |
| Series | VSVA |
| Betriebsdruck max [bar] | 16 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
