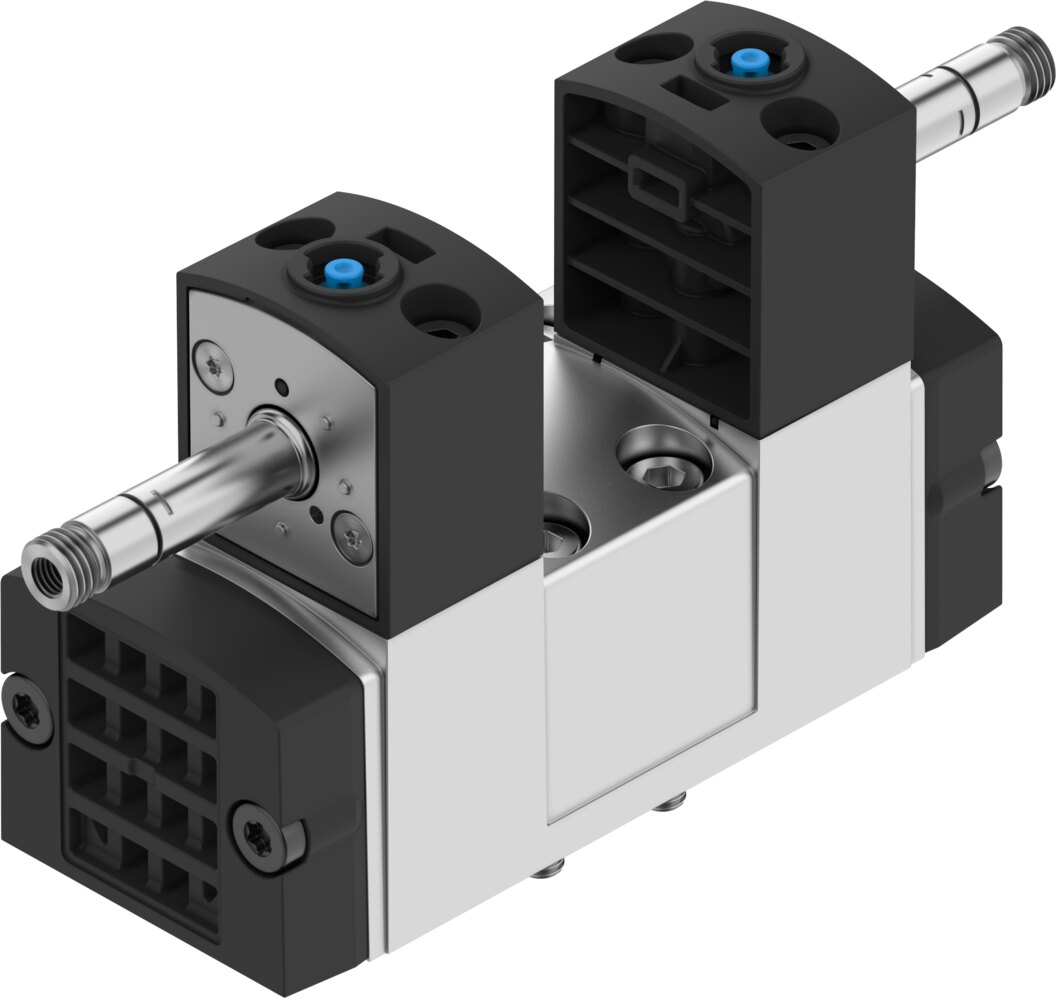

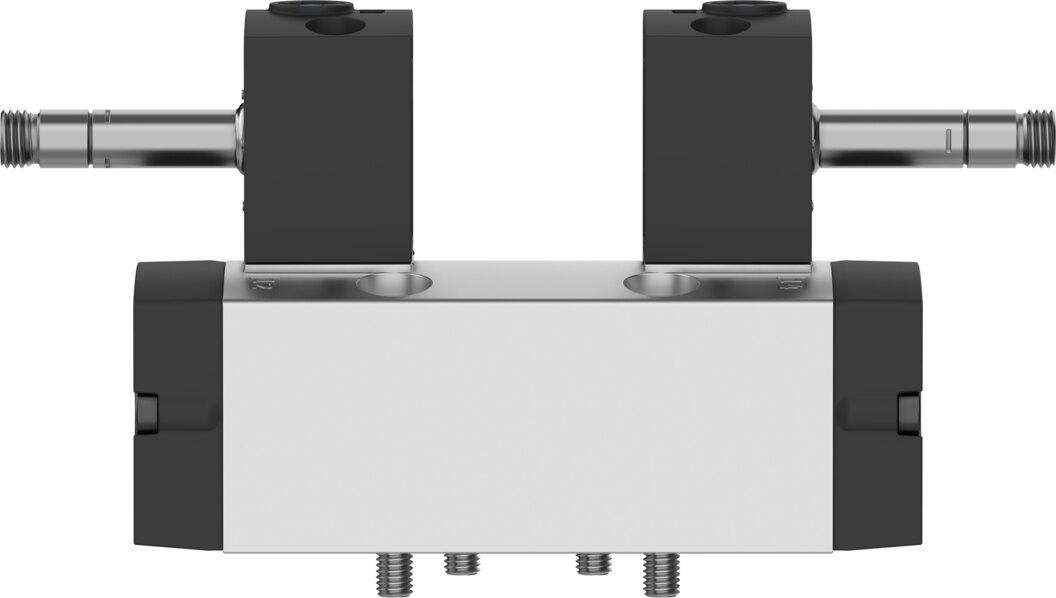

Solenoid valve 5/3 exhausted, ISO 5599-1, width 42 mm VSVA-B-P53E-T-D1-F8 - Festo 8033662

Festo ✓ Original product Brand new

As a 5/3-way valve, mid-position exhausted for sub-base size 1 to ISO 5599-1, the Festo VSVA-B-P53E-T-D1-F8 provides a nominal flow rate of 1800 l/min. Operating pressure 3 to 10 bar, switching time 20 ms on, 55 ms off.

Net
€166.21
excl. VAT
Item FES-8033662
Manufacturer no. VSVA-B-P53E-T-D1-F8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

5/3-way valve, mid-position exhausted VSVA-B-P53E-T-D1-F8 by Festo: 1800 l/min nominal flow, width 42 mm, designed to ISO 5599-1.

Benefits

  • Interchangeable to ISO 5599-1: Sub-base size 1 to ISO 5599-1, width 42 mm, function 5/3 exhausted.
  • Flow rate: 1800 l/min nominal flow to ISO 8778, 1400 l/min on individual sub-base, 1300 l/min pneumatically interlinked.
  • Switching times: 20 ms on, 55 ms off, up to 5 Hz switching frequency.
  • Pressure range: 3 to 10 bar.
  • Degree of protection: IP65, NEMA 4.
  • Manual override: detenting via accessory.

Application

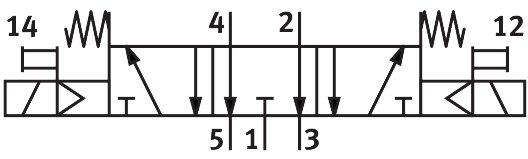

In the mid-position both working ports are exhausted, so the actuator can be moved without force. The operating medium is compressed air to ISO 8573-1:2010 [7:4:4], permissible ambient temperature -10 to 50 °C, product weight 405 g.

Technical data

TypeVSVA-B-P53E-T-D1-F8
Festo part number8033662
Valve function5/3 exhausted
Type of actuationElectrical
Construction width42 mm
Nominal flow rate standardised according to ISO 87781800 l/min
Pneumatic working portSub-base size 1 to ISO 5599-1
Operating pressure3 to 10 bar
DesignPiston gate valve
Type of resetMechanical spring
Degree of protectionIP65, NEMA 4
Nominal size8 mm
Grid dimension43 mm
Exhaust-air functionCan be throttled, Via individual sub-base
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideDetenting via accessory
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
LapOverlap
Pilot pressure3 to 10 bar
Suitability for vacuumNo
B value0.24
C value7.141 l/sbar
Flow rate of valve1600 l/min
Flow rate of valve on individual sub-base1400 l/min
Valve flow rate, pneumatically linked, flow optimized1500 l/min
Flow rate of pneumatically interlinked valve1300 l/min
Max. switching frequency5 Hz
Switching time off55 ms
Switching time on20 ms
Switching time reversal30 ms
Duty cycle100%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 50 °C
Relative air humidity0 - 90%
Sound pressure level85 dB(A)
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 50 °C
Max. tightening torque for valve mounting1 Nm
Product weight405 g
Type of mountingOn sub-base
Pilot exhaust port 82M5, Not ducted
Pilot exhaust port 84M5, Not ducted
Pilot air port 12Sub-base size 1 to ISO 5599-1
Pilot air port 14Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsNBR
Material housingDie-cast aluminium
Material screwsSteel
Weight0.45 kg
ManufacturerFesto
Hersteller-NrVSVA-B-P53E-T-D1-F8
EAN4052568654771
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]8
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air
Function5/3 exhausted
Flow rate [l/min]1800
Actuation typeElectrical
NormISO 5599-1, ISO 15218
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperaturbereich-10-50 °C
Temperature (max.)50
