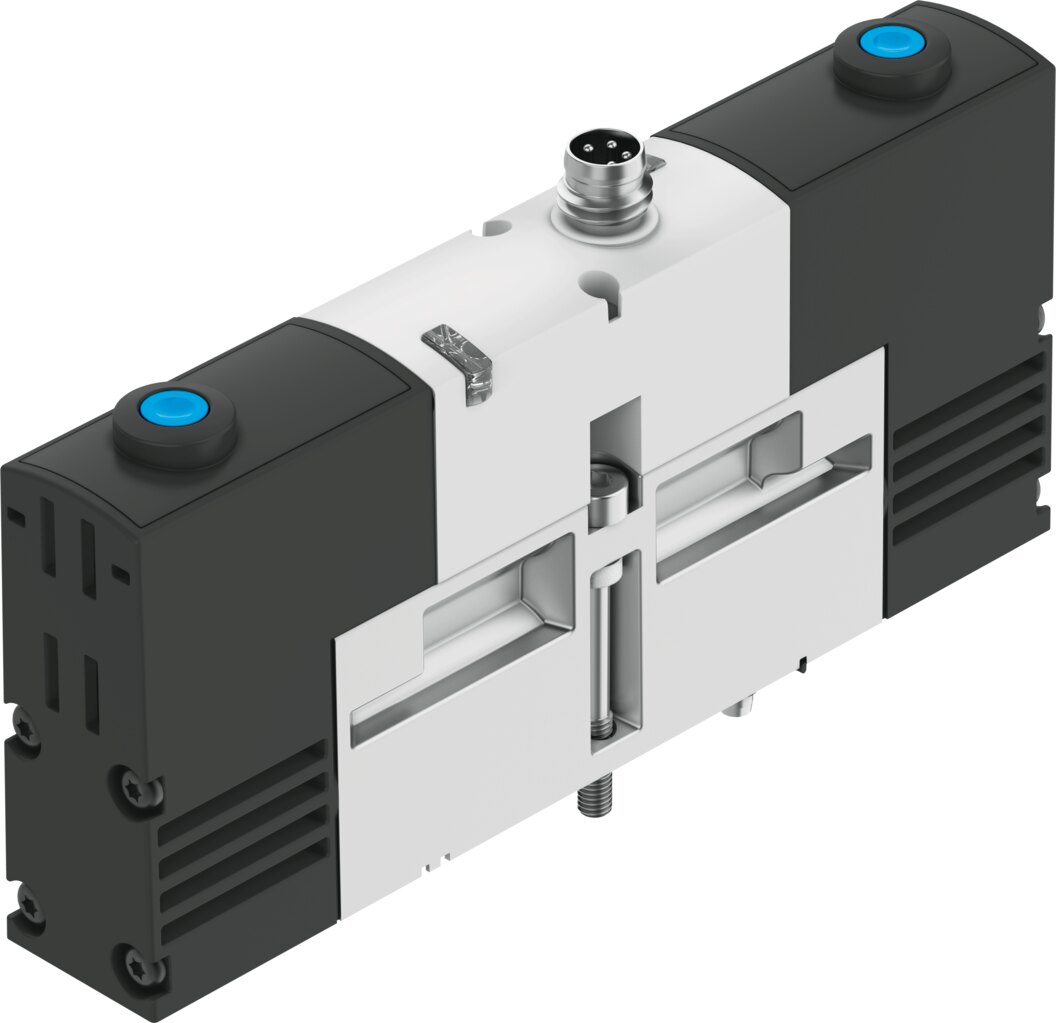

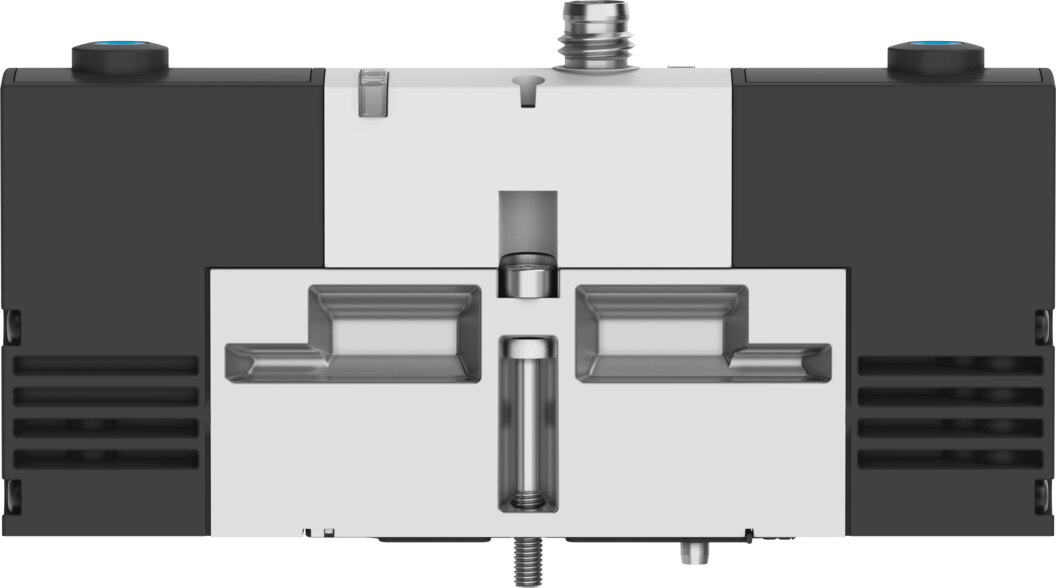

Solenoid valve 5/3-way, closed, ISO 15407-1, width 18 mm VSVA-B-P53C-H-A2-1R2L - Festo 534778
As a 5/3-way valve, mid-position closed for sub-base size 18 mm to ISO 15407-1, the Festo VSVA-B-P53C-H-A2-1R2L provides a nominal flow rate of 450 l/min. Operating pressure 3 to 8 bar, 24 V DC coil with low-current phase 1.0 W, high-current phase 2.4 W, electrical connection 4-pin, M8x1, central plug, round design.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 450 l/min nominal flow, the VSVA-B-P53C-H-A2-1R2L supplies actuators and mounts on sub-base size 18 mm to ISO 15407-1. Valve function: 5/3-way, closed.
Benefits
- Standard interface: the 5/3 valve fits sub-base size 18 mm to ISO 15407-1, width 18 mm and is interchangeable with valves to the same standard.
- Flow rate: 450 l/min nominal flow to DIN 1343, 500 l/min on individual sub-base, 450 l/min pneumatically interlinked.
- Electrical connection: 4-pin, M8x1, central plug, round design.
- Pressure range: 3 to 8 bar.
- Degree of protection: IP65.
- Additional function: safety shut-off.
Application
In the mid-position all ports are blocked and a cylinder holds its position. The operating medium is compressed air to ISO 8573-1:2010 [7:4:4], permissible ambient temperature -5 to 50 °C, product weight 140 g.
Technical data
| Type | VSVA-B-P53C-H-A2-1R2L |
|---|---|
| Festo part number | 534778 |
| Valve function | 5/3-way, closed |
| Type of actuation | Electrical |
| Construction width | 18 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 450 l/min |
| Pneumatic working port | Sub-base size 18 mm to ISO 15407-1, Sub-base size 02 to VDMA 24563 |
| Operating voltage | 24 V DC |
| Operating pressure | 3 to 8 bar |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Approval | C-Tick, c UL us - Recognised (Oil) |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Degree of protection | IP65 |
| Nominal size | 5 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 15407-1, VDMA 24563 |
| Manual override | Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Lap | Overlap |
| Reverse polarity protection | For all electrical connections |
| Additional functions | Safety shut-off |
| Signal status display | LED |
| Flow rate of valve | 650 l/min |
| Flow rate of valve on individual sub-base | 500 l/min |
| Flow rate of pneumatically interlinked valve | 450 l/min |
| Switching time off | 36 ms |
| Switching time on | 15 ms |
| Operational voltage range DC | 21.6 to 26.4 V |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 500 µs |
| Max. negative test pulse with 1 signal | 500 µs |
| Characteristic coil data | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5 to 50 °C |
| Relative air humidity | 0 - 90% |
| Protection against direct and indirect contact | PELV |
| Ambient temperature | -5 to 50 °C |
| Max. tightening torque for valve mounting | 0.9 to 1.1 Nm |
| Product weight | 140 g |
| Electrical connection | 4-pin, M8x1, Central plug, Round design |
| Type of mounting | On sub-base |
| Note on materials | RoHS compliant |
| Weight | 0.15 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-B-P53C-H-A2-1R2L |
| EAN | 4052568168537 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 5 |
| Medium | Compressed air |
| Function | 5/3 closed |
| Flow rate [l/min] | 450 |
| Actuation type | Electrical |
| Norm | DIN ISO 15407-1, VDMA 24563 |
| Series | VSVA |
| Betriebsdruck max [bar] | 8 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
