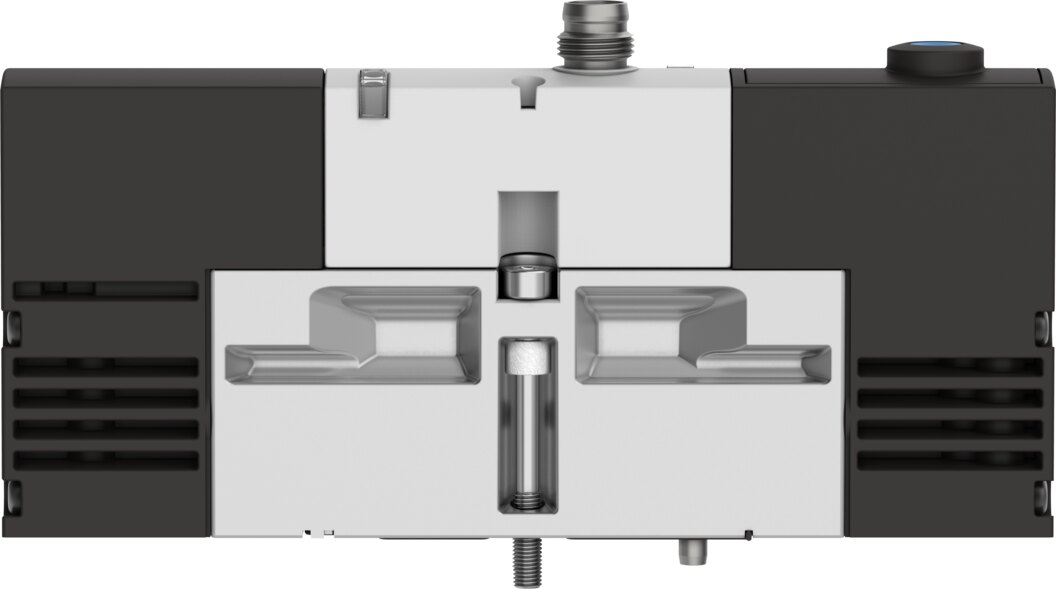

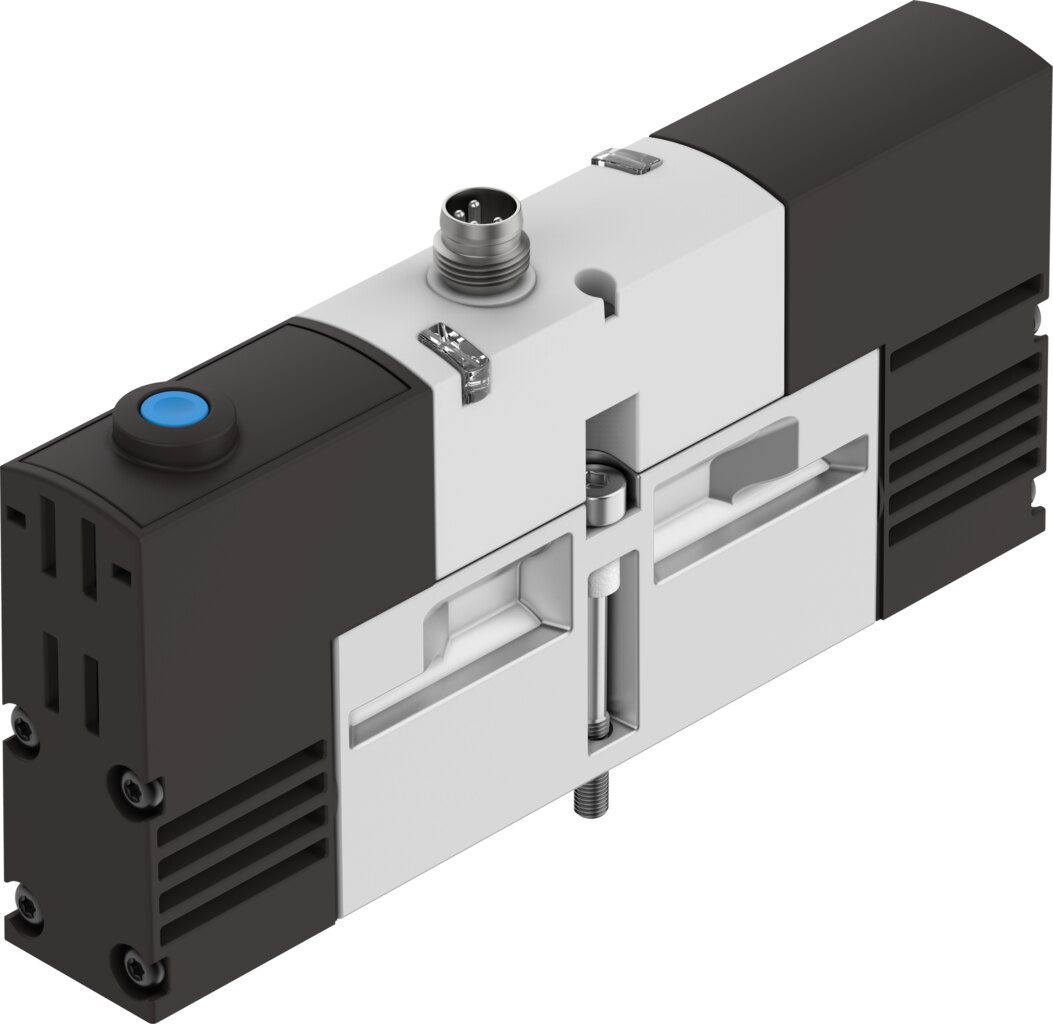

Solenoid valve 5/2-way, single solenoid, ISO 15407-1, width 18 mm VSVA-B-M52-MZH-A2-1R2L - Festo 534785

Festo ✓ Original product Brand new

550 l/min nominal flow on sub-base size 18 mm to ISO 15407-1: the Festo solenoid valve VSVA-B-M52-MZH-A2-1R2L operates as a 5/2-way valve, single solenoid. Operating pressure -0.9 to 10 bar, 24 V DC coil with low-current phase 1.0 W, high-current phase 2.4 W, electrical connection 4-pin, M8x1, central plug, round design.

Net
€110.69
excl. VAT
Item FES-534785
Manufacturer no. VSVA-B-M52-MZH-A2-1R2L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

5/2-way valve, single solenoid VSVA-B-M52-MZH-A2-1R2L by Festo: 550 l/min nominal flow, width 18 mm, designed to ISO 15407-1.

Benefits

  • Standardised hole pattern: Sub-base size 18 mm to ISO 15407-1, so the 5/2 valve can be replaced without changing the sub-base.
  • Flow rate: 550 l/min nominal flow to DIN 1343, 550 l/min on individual sub-base, 550 l/min pneumatically interlinked.
  • Pressure range: -0.9 to 10 bar.
  • Degree of protection: IP65.
  • Additional function: safety shut-off.
  • Manual override: non-detenting.

Application

It controls double-acting cylinders and returns to its normal position when the signal is removed. The VSVA-B-M52-MZH-A2-1R2L is designed for compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 50 °C ambient temperature, pilot air external.

Technical data

TypeVSVA-B-M52-MZH-A2-1R2L
Festo part number534785

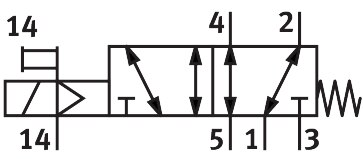

Valve function5/2-way, single solenoid
Type of actuationElectrical
Construction width18 mm
Standard nominal flow rate (standardised to DIN 1343)550 l/min
Pneumatic working portSub-base size 18 mm to ISO 15407-1, Sub-base size 02 to VDMA 24563
Operating voltage24 V DC
Operating pressure-0.9 to 10 bar
DesignPiston gate valve
Type of resetMechanical spring
ApprovalC-Tick, c UL us - Recognised (Oil)
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Degree of protectionIP65
Nominal size5 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 15407-1, VDMA 24563
Manual overrideNon-detenting
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionReversible
LapOverlap
Reverse polarity protectionFor all electrical connections
Additional functionsSafety shut-off
Signal status displayLED
Pilot pressure3 to 8 bar
Flow rate of valve750 l/min
Flow rate of valve on individual sub-base550 l/min
Flow rate of pneumatically interlinked valve550 l/min
Switching time off34 ms
Switching time on12 ms
Operational voltage range DC21.6 to 26.4 V
Duty cycle100%
Max. positive test pulse with 0 signal500 µs
Max. negative test pulse with 1 signal500 µs
Characteristic coil data24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5 to 50 °C
Relative air humidity0 - 90%
Protection against direct and indirect contactPELV
Ambient temperature-5 to 50 °C
Max. tightening torque for valve mounting0.9 to 1.1 Nm
Product weight140 g
Electrical connection4-pin, M8x1, Central plug, Round design
Type of mountingOn sub-base
Note on materialsRoHS compliant
Weight0.14 kg
ManufacturerFesto
Hersteller-NrVSVA-B-M52-MZH-A2-1R2L
EAN4052568168605
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]5
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]550
Actuation typeElectrical
NormDIN ISO 15407-1, VDMA 24563
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperature (max.)50
