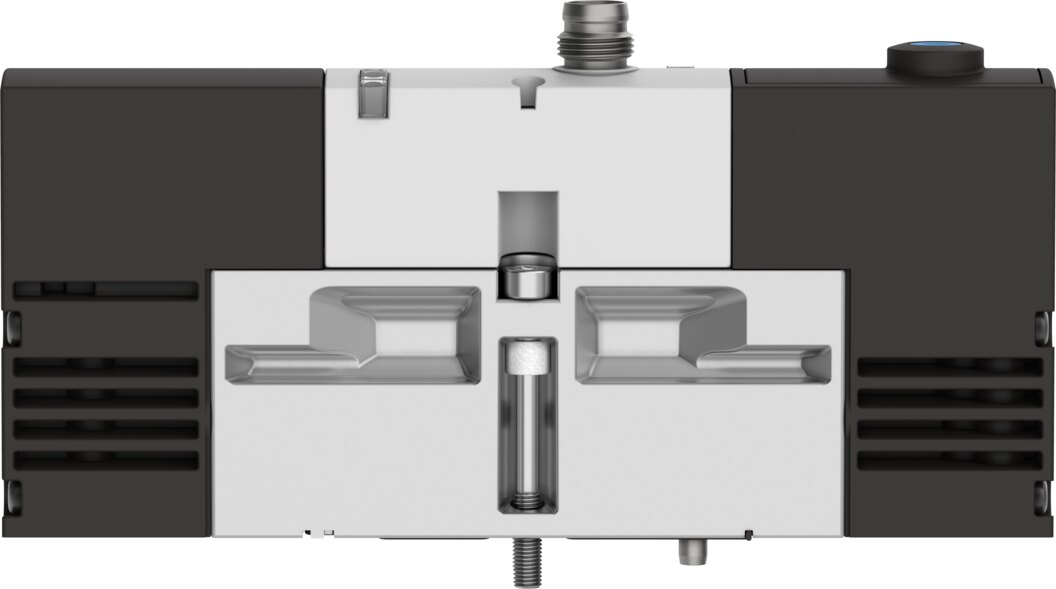

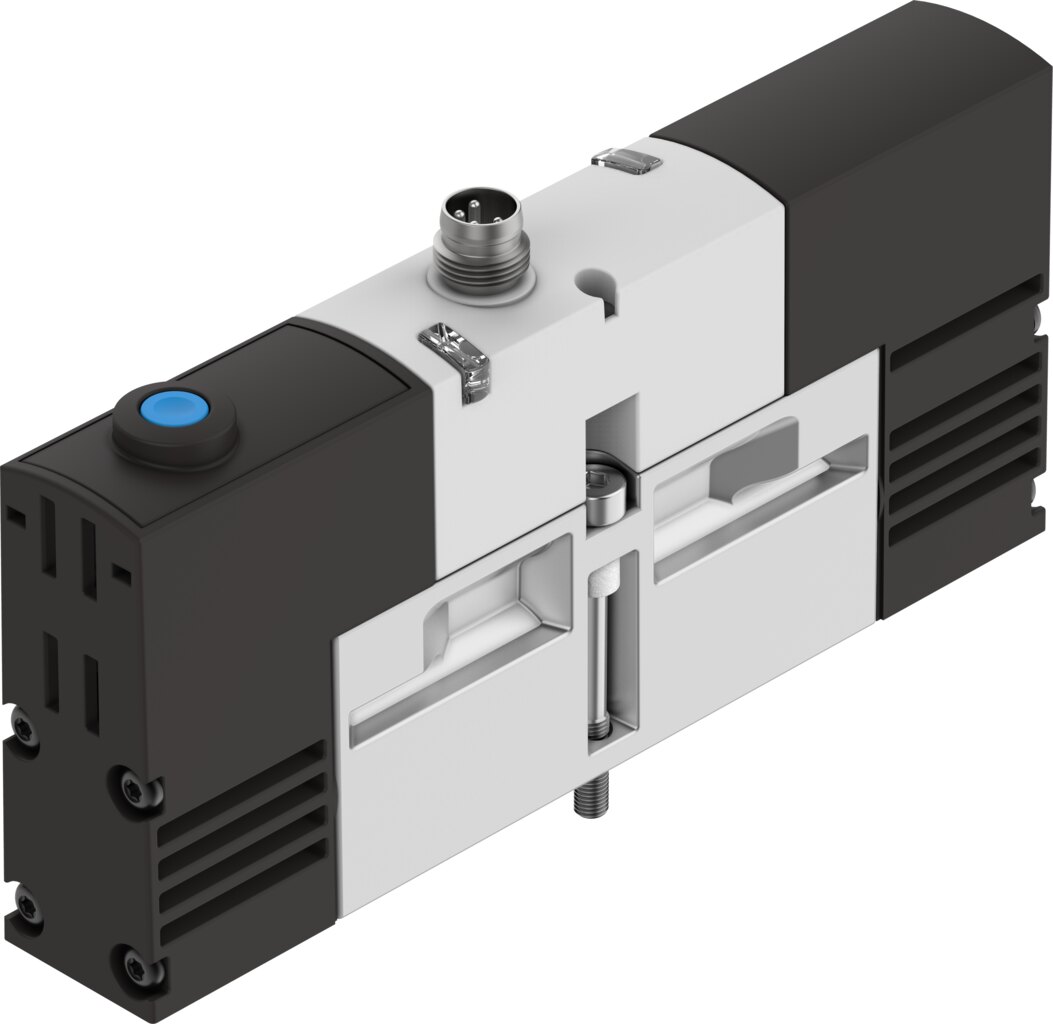

Solenoid valve VSVA-B-M52-MH-A2-1R2L - Festo 534775
Net
excl. VAT
€105.71
Item
FES-534775
Manufacturer no.
VSVA-B-M52-MH-A2-1R2L
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | 5/2-way, single solenoid |
|---|---|
| Type of actuation | Electrical |
| Construction width | 18 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 550 l/min |
| pneumatic working port | Sub-base size 18 mm to ISO 15407-1, Sub-base size 02 to VDMA 24563 |
| Operating voltage | 24 V DC |
| Operating pressure | 3 ... 8 bar |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Approval | C-Tick, c UL us - Recognised (Oil) |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Degree of protection | IP65 |
| Nominal size | 5 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 15407-1, VDMA 24563 |
| Manual override | Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| lap | Overlap |
| Reverse polarity protection | For all electrical connections |
| Additional functions | Safety shut-off |
| Signal status display | LED |
| Flow rate of valve | 750 l/min |
| Flow rate of valve on individual sub-base | 550 l/min |
| Flow rate of pneumatically interlinked valve | 550 l/min |
| Switching time off | 34 ms |
| Switching time on | 12 ms |
| Operational voltage range DC | 21.6 ... 26.4 V |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 500 µs |
| Max. negative test pulse with 1 signal | 500 µs |
| Characteristic coil data | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5 ... 50 °C |
| Relative air humidity | 0 - 90% |
| Protection against direct and indirect contact | PELV |
| Ambient temperature | -5 ... 50 °C |
| Max. tightening torque for valve mounting | 0.9 ... 1.1 Nm |
| Product weight | 140 g |
| Electrical connection | 4-pin, M8x1, Central plug, Round design |
| Type of mounting | On sub-base |
| Note on materials | RoHS compliant |
| Weight | 0.14 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-B-M52-MH-A2-1R2L |
| EAN | 4052568168506 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
