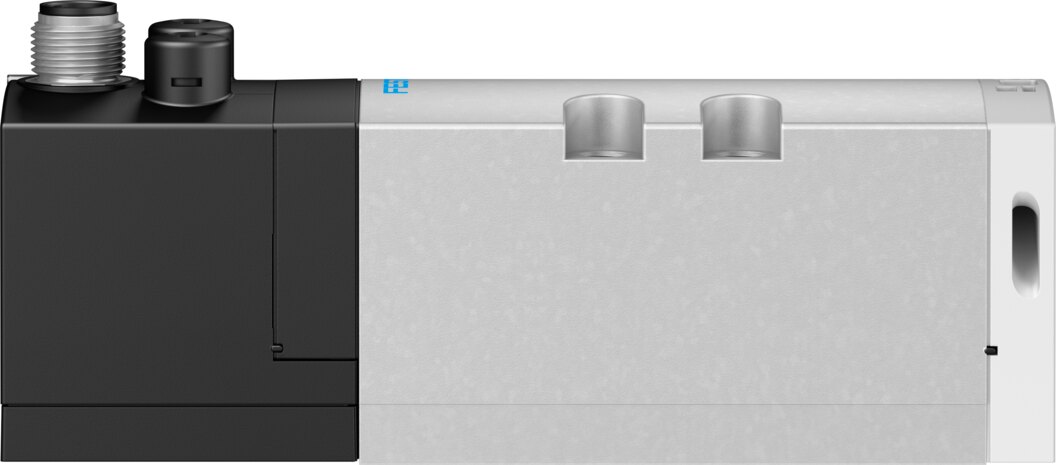

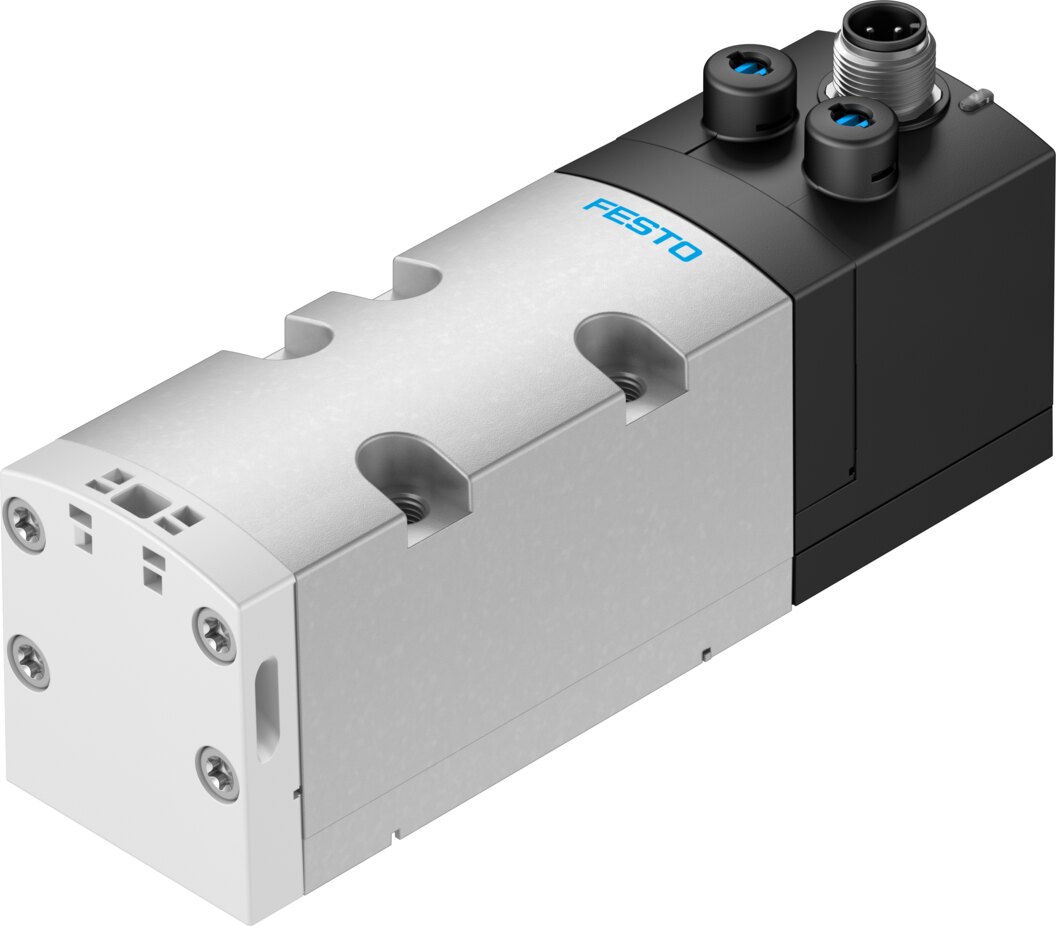

Solenoid valve 5/2-way, bistable, dominant, ISO 5599-1, width 42 mm VSVA-B-D52-D-D1-1R5L - Festo 561365

Festo ✓ Original product Brand new

The standard valve VSVA-B-D52-D-D1-1R5L works as a 5/2-way valve, bistable with dominant signal, delivers up to 1300 l/min nominal flow and mounts on sub-base size 1 to ISO 5599-1. Operating pressure 3 to 10 bar, 24 V DC coil with 1.6 W, electrical connection 3-pin, M12x1, central plug, round design.

Net
€166.31
excl. VAT
Item FES-561365
Manufacturer no. VSVA-B-D52-D-D1-1R5L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo solenoid valve VSVA-B-D52-D-D1-1R5L from the VSVA series is a 5/2-way valve, bistable with dominant signal to ISO 5599-1 with 1300 l/min nominal flow.

Benefits

  • Standard interface: the 5/2 valve fits sub-base size 1 to ISO 5599-1, width 42 mm and is interchangeable with valves to the same standard.
  • Flow rate: 1300 l/min nominal flow to DIN 1343, 1400 l/min on individual sub-base, 1300 l/min pneumatically interlinked.
  • Electrical connection: 3-pin, M12x1, central plug, round design.
  • Pressure range: 3 to 10 bar.
  • Degree of protection: IP65, NEMA 4.
  • Manual override: detenting, non-detenting.

Application

If both signals are present at once, the dominant side takes over, so the switching position stays defined. Pilot air internal, ambient temperature -5 to 50 °C, product weight 439 g, medium compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

TypeVSVA-B-D52-D-D1-1R5L
Festo part number561365

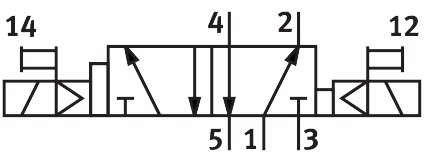

Valve function5/2-way, bistable, dominant
Type of actuationElectrical
Construction width42 mm
Standard nominal flow rate (standardised to DIN 1343)1300 l/min
Pneumatic working portSub-base size 1 to ISO 5599-1, G1/4
Operating voltage24 V DC
Operating pressure3 to 10 bar
DesignPiston gate valve
Approvalc UL us - Recognised (Oil)
Degree of protectionIP65, NEMA 4
Nominal size11 mm
Grid dimension43 mm
Exhaust-air functionCan be throttled, Via throttle plate, Via individual sub-base
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideDetenting, Non-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
LapOverlap
Signal status displayLED
Flow rate of valve2000 l/min
Flow rate of valve on individual sub-base1400 l/min
Flow rate of pneumatically interlinked valve1300 l/min
Switching time reversal19 ms
Duty cycle100%
Max. positive test pulse with 0 signal1600 µs
Max. negative test pulse with 1 signal1100 µs
Characteristic coil data24 V DC: 1.6 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5 to 50 °C
Relative air humidity0 - 90%
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight439 g
Electrical connection3-pin, M12x1, Central plug, Round design
Type of mountingOn sub-base
Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1
Note on materialsRoHS compliant
Material sealsFluoro rubber, HNBR, NBR
Material housingDie-cast aluminium, PA
Material screwsSteel, Galvanised
Weight0.47 kg
ManufacturerFesto
Hersteller-NrVSVA-B-D52-D-D1-1R5L
EAN4052568208752
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]11
MediumCompressed air
Function5/2 bistable-dominant
Flow rate [l/min]1300
Actuation typeElectrical
NormISO 5599-1
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperature (max.)50
