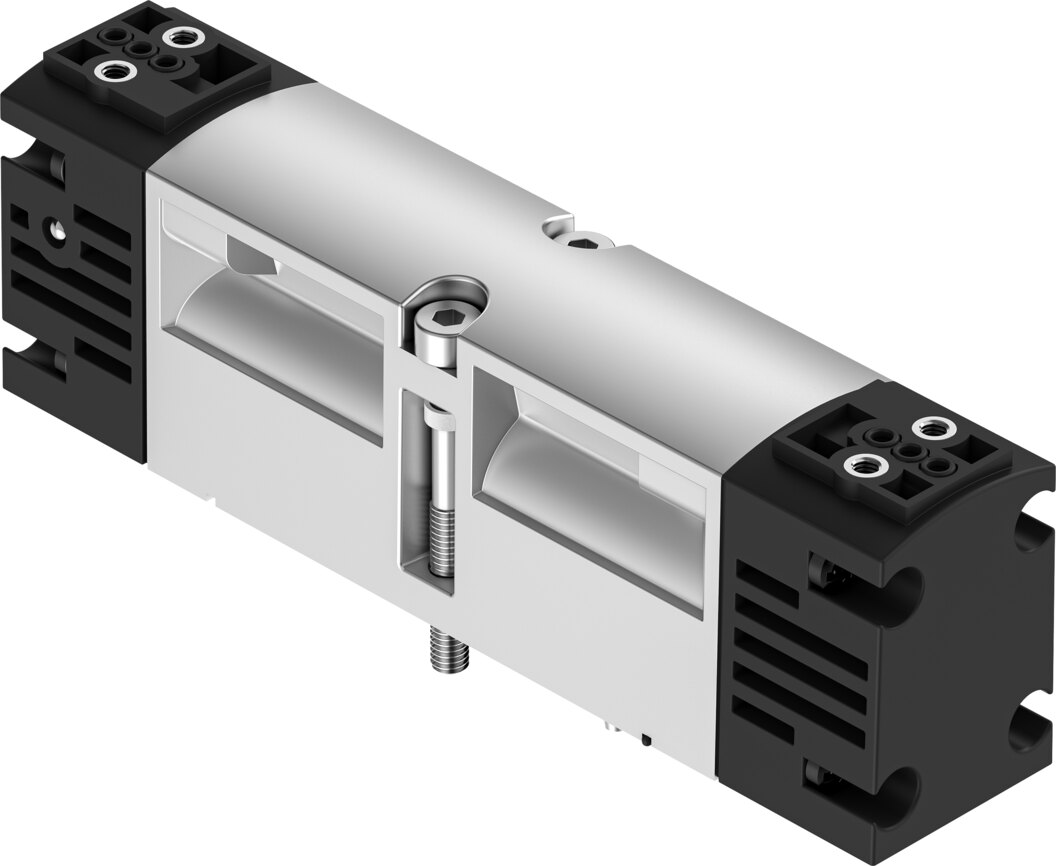

Basic valve 5/2-way, bistable, dominant, ISO 15407-1, width 18 mm VSVA-B-D52-A2-P1 - Festo 546738

Festo ✓ Original product Brand new

As a 5/2-way valve, bistable with dominant signal for sub-base size 18 mm to ISO 15407-1, the Festo VSVA-B-D52-A2-P1 provides a nominal flow rate of 550 l/min. Operating pressure 2 to 10 bar.

Net
€75.73
excl. VAT
Item FES-546738
Manufacturer no. VSVA-B-D52-A2-P1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

5/2-way valve, bistable with dominant signal VSVA-B-D52-A2-P1 by Festo: 550 l/min nominal flow, width 18 mm, designed to ISO 15407-1.

Benefits

  • Standardised hole pattern: Sub-base size 18 mm to ISO 15407-1, so the 5/2 valve can be replaced without changing the sub-base.
  • Flow rate: 550 l/min nominal flow to DIN 1343, 550 l/min on individual sub-base, 550 l/min pneumatically interlinked.
  • Pressure range: 2 to 10 bar.
  • Degree of protection: IP65, NEMA 4.

Application

If both signals are present at once, the dominant side takes over, so the switching position stays defined. The operating medium is compressed air to ISO 8573-1:2010 [7:4:4], permissible ambient temperature -5 to 50 °C, product weight 98 g.

Technical data

TypeVSVA-B-D52-A2-P1
Festo part number546738

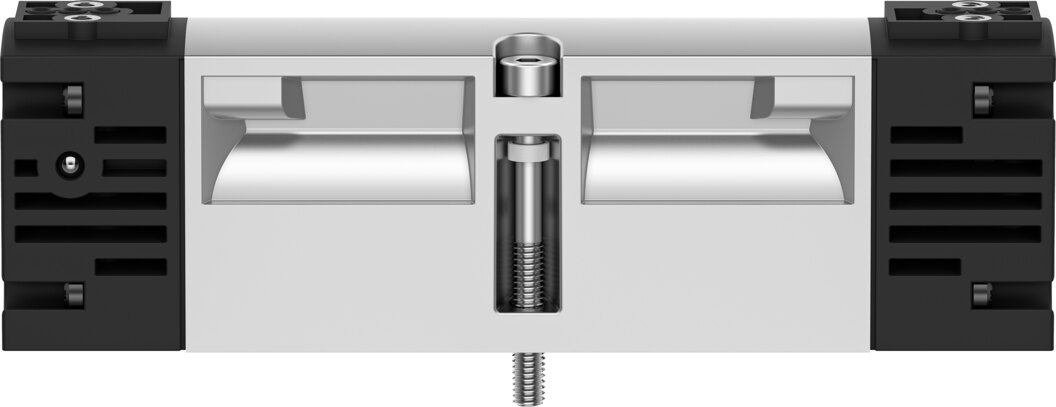

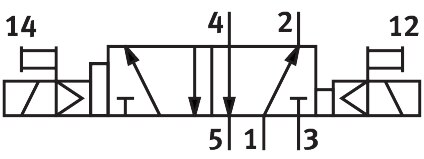

Valve function5/2-way, bistable, dominant
Type of actuationElectrical
Valve size18 mm
Standard nominal flow rate (standardised to DIN 1343)550 l/min
Pneumatic working portSub-base size 18 mm to ISO 15407-1, Sub-base size 02 to VDMA 24563, G1/8
Operating pressure2 to 10 bar
DesignPiston gate valve
Approvalc UL us - Recognised (Oil)
Degree of protectionIP65, NEMA 4
Nominal size5 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 15407-1, VDMA 24563
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
LapOverlap
Signal status displayLED
Pilot pressure3 to 10 bar
Flow rate of valve750 l/min
Flow rate of valve on individual sub-base550 l/min
Flow rate of pneumatically interlinked valve550 l/min
Duty cycle100%
Permissible voltage fluctuations-15% / +10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5 to 50 °C
Relative air humidity0 - 90%
Sound pressure level85 dB(A)
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Max. tightening torque for valve mounting0.9 to 1.1 Nm
Product weight98 g
Type of mountingOn sub-base
Auxiliary pilot air port 12Sub-base size 18 mm to ISO 15407-1
Auxiliary pilot air port 14Sub-base size 18 mm to ISO 15407-1
Pilot exhaust port 82/84Ducted, Not ducted as per standard
Pneumatic connection, port 1Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 2Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 3Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 4Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 5Sub-base size 18 mm to ISO 15407-1
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingDie-cast aluminium
Material screwsSteel, Galvanised
Weight0.125 kg
ManufacturerFesto
Hersteller-NrVSVA-B-D52-A2-P1
EAN4052568185046
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]5
Seal materialHNBR, NBR
Housing materialDie-cast aluminium
MediumCompressed air
Function5/2 bistable-dominant
Flow rate [l/min]550
Actuation typeElectrical
NormDIN ISO 15407-1, ISO 15218, VDMA 24563
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperature (max.)50
