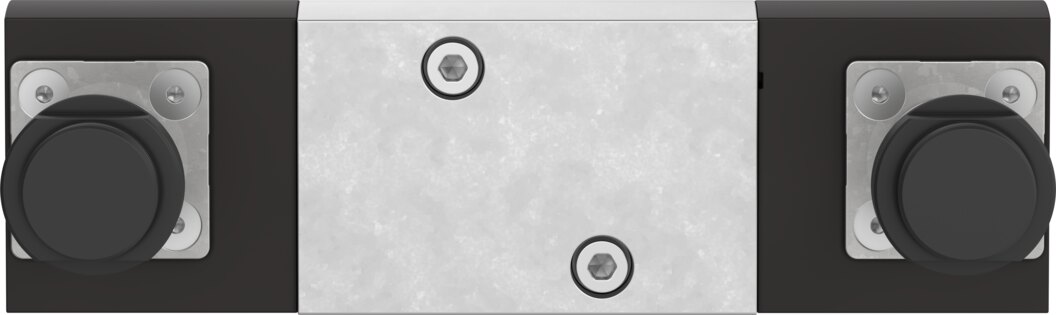

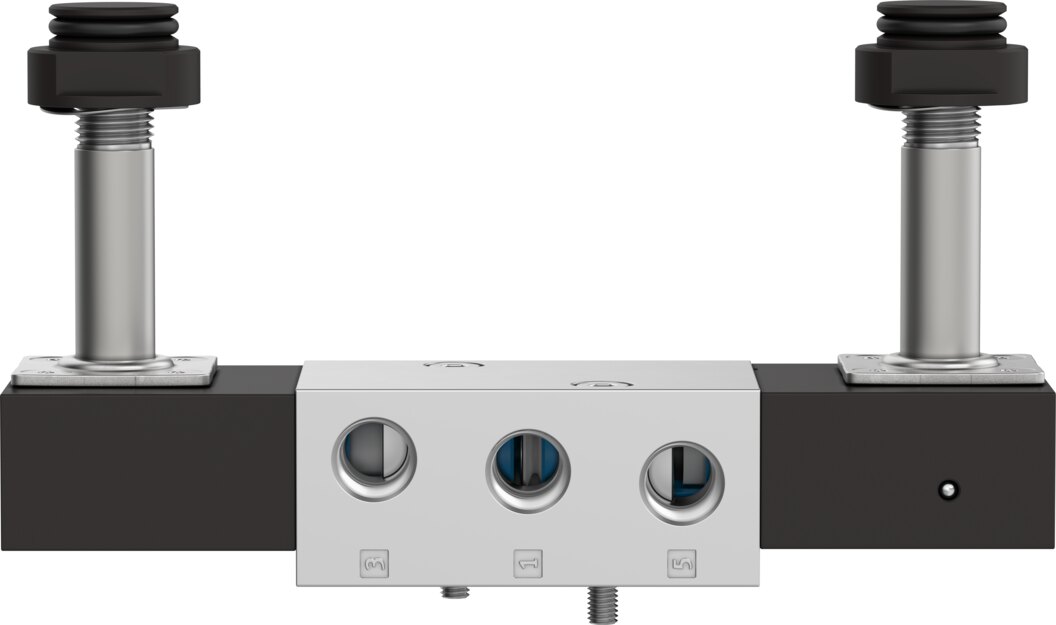

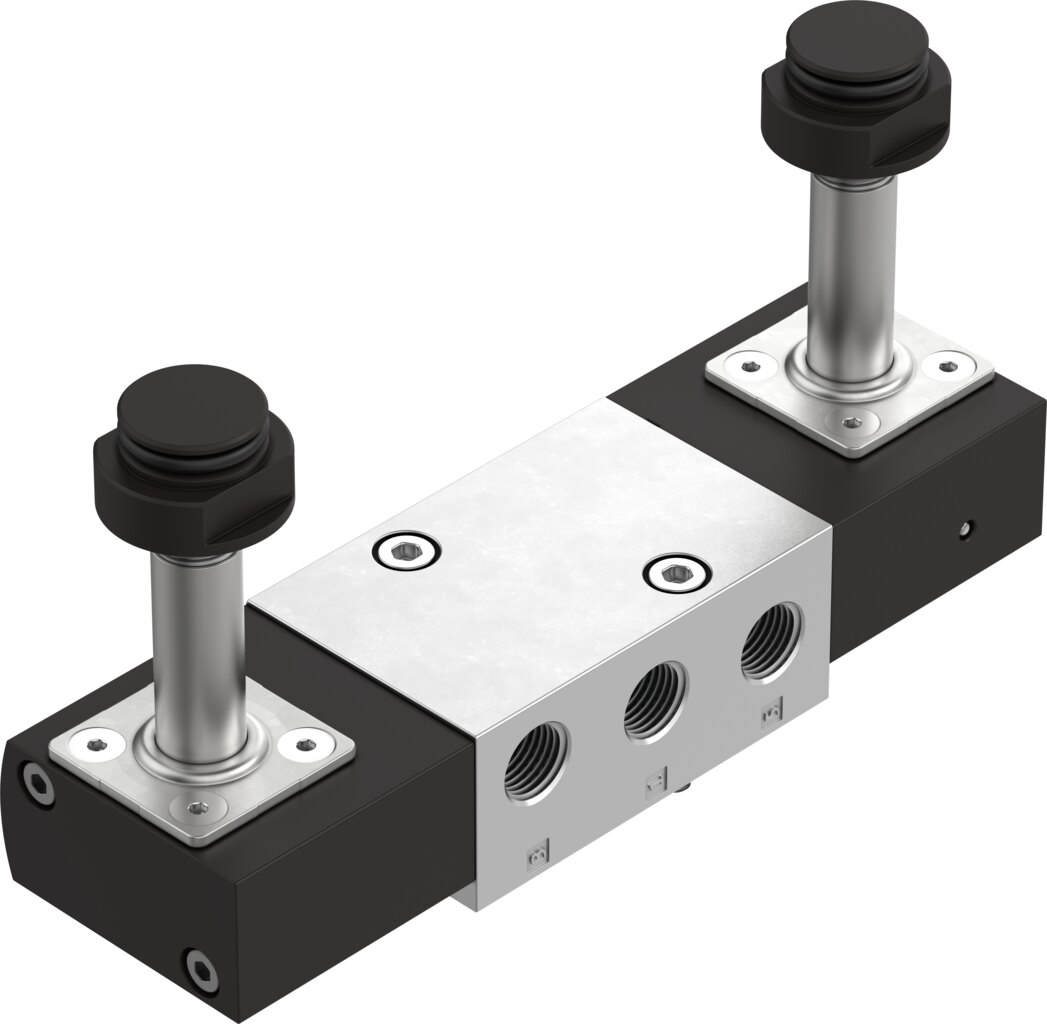

Solenoid valve 5/2-way double solenoid 1/4 NPT VSNC-FT-B52-N14-F19 - Festo 8116386

Festo ✓ Original product Brand new

Solenoid valve VSNC-FT-B52-N14-F19 as a 5/2-way valve (double solenoid) with 1000 l/min standard nominal flow rate for controlling pneumatic actuators. Ratings: 1.5 to 8 bar operating pressure, 1/4 NPT port and 32 mm width. The NAMUR connection pattern allows mounting directly on the quarter-turn actuator.

Net
€206.52
excl. VAT
Item FES-8116386
Manufacturer no. VSNC-FT-B52-N14-F19
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As a 5/2-way valve (double solenoid), the Festo solenoid valve VSNC-FT-B52-N14-F19 delivers 1000 l/min standard nominal flow rate at 1.5 to 8 bar operating pressure. The piloted design comes with 1/4 NPT port and 32 mm width.

Benefits at a glance

  • Flow: 1000 l/min standard nominal flow rate at only 32 mm width
  • Pressure range: 1.5 to 8 bar
  • Reversing time: 20 ms
  • Rugged: corrosion resistance class 2

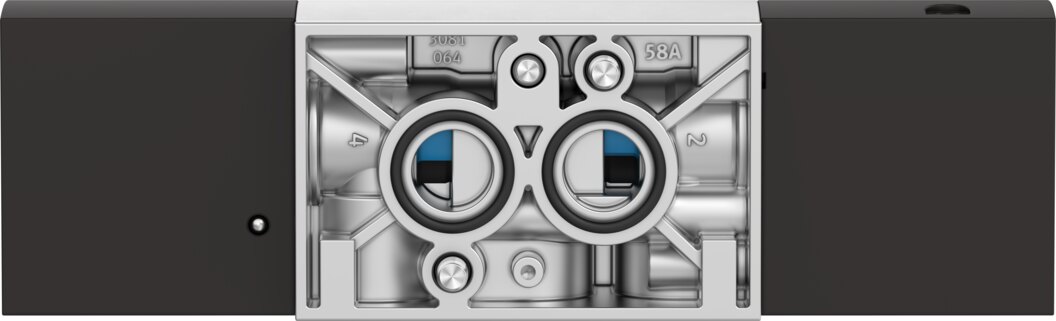

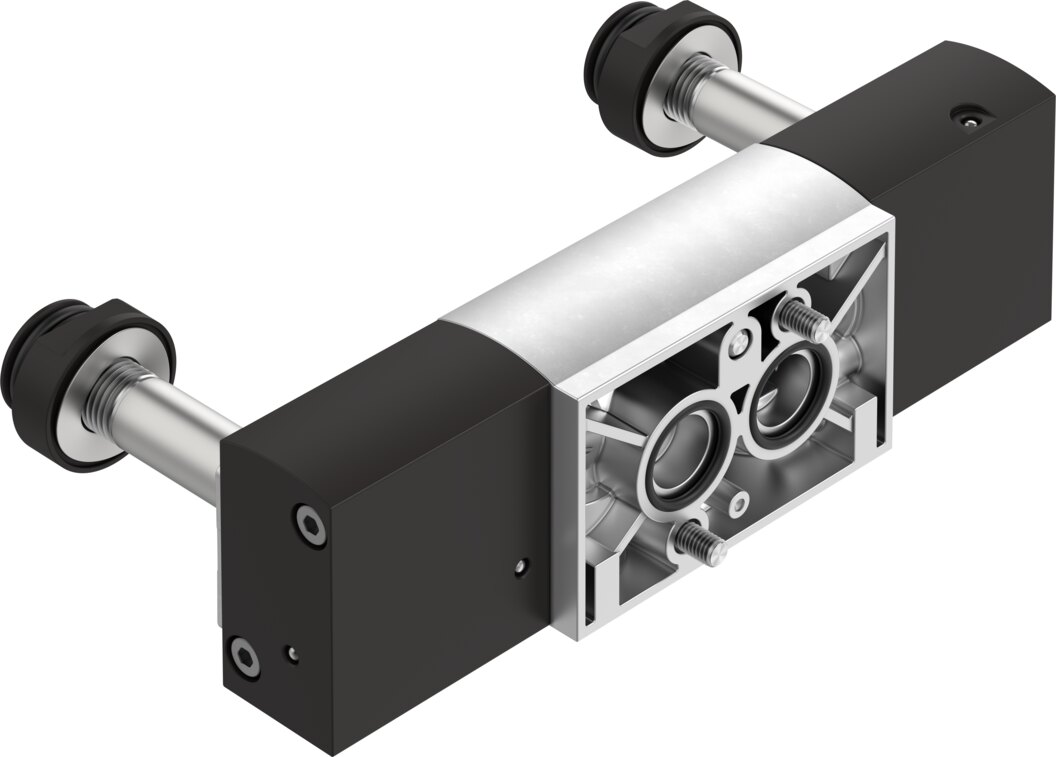

  • Interface: NAMUR connection pattern to VDI/VDE 3845
  • Temperature: -20 to 60 °C ambient

Applications

The VSNC-FT-B52-N14-F19 mounts directly on quarter-turn actuators with NAMUR interface, so no tubing is needed between valve and actuator. Please order the solenoid coil for the VSNC-FT-B52-N14-F19 separately. Mounting: with through-hole. The VSNC-FT-B52-N14-F19 operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVSNC-FT-B52-N14-F19
Festo part number8116386
Valve function5/2-way, double solenoid
Type of actuationelectrical
Width32 mm
Standard nominal flow rate1000 l/min
pneumatic working portconnection pattern to NAMUR
Operating voltagevia solenoid coil, must be ordered separately
Operating pressure1.5 to 8 bar
Designpoppet seat
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Conforms to standardVDI/VDE 3845 (NAMUR)
Manual overridenone
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlapnegative overlap
Switching time reversal20 ms
Duty cycle100%
Coil characteristicssee solenoid coil, to be ordered separately
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature-20 to 60 °C
Ambient temperature-20 to 60 °C
Product weight613 g
Type of mountingwith through-hole
Breather connectionnot ducted
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 2connection pattern to NAMUR
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 4connection pattern to NAMUR
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material sealsNBR
Material housingwrought aluminium alloy
Material screwsgalvanised steel
ManufacturerFesto
Hersteller-NrVSNC-FT-B52-N14-F19
EAN4052568558307
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/4
Seal materialNBR
MediumCompressed air
Function5/2 bistable
Flow rate [l/min]1000
Actuation typeElectrical
NormNAMUR, VDI/VDE 3845
SeriesVSNC
Betriebsdruck max [bar]8
Pneumatic connectionNPT 1/4
Temperaturbereich-20-60 °C
