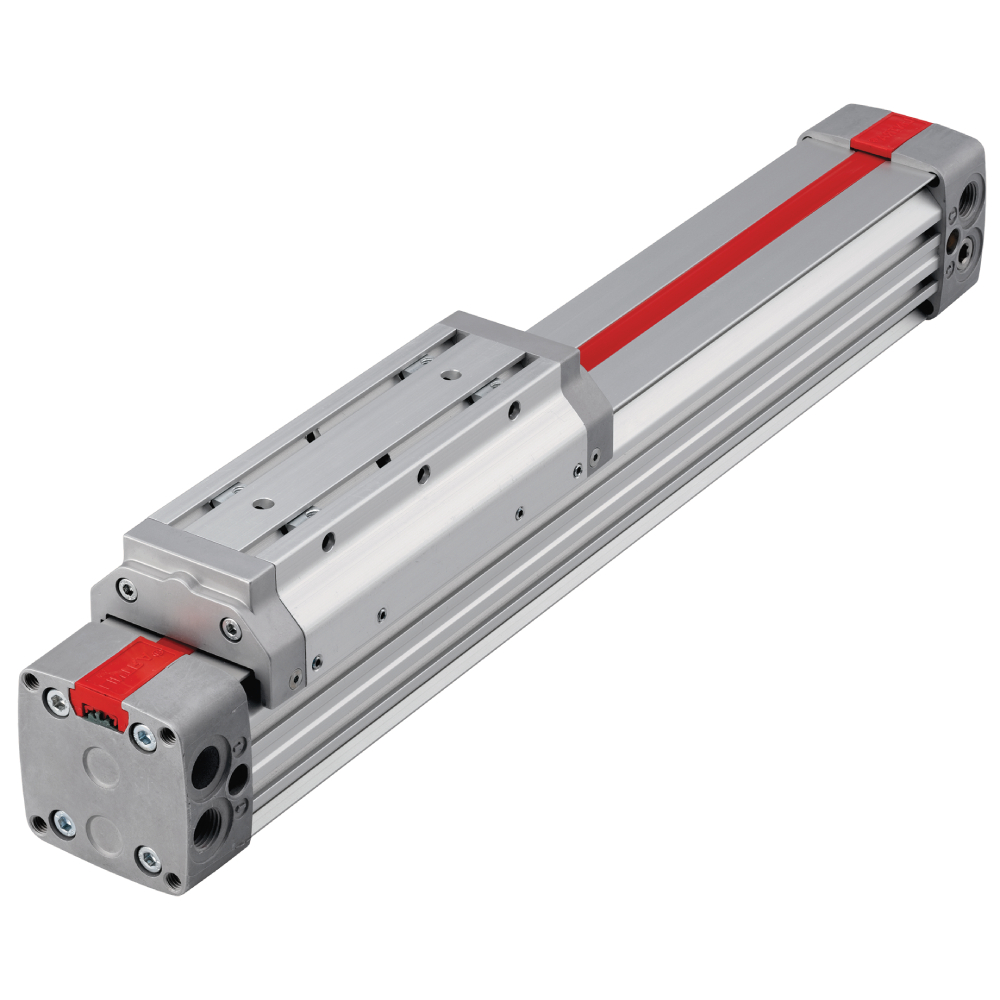

Lintra Plus rodless cylinder, 50 mm bore, 4400 mm stroke, external guide, double-acting - Norgren M/146150/MC/4400

The Norgren M/146150/MC/4400 is a double-acting rodless cylinder from the Lintra Plus range with a 50 mm bore and a 4400 mm stroke. The force is taken off at the carriage, which the external guide of the M/146150/MC/4400 supports.

Benefits

• 4400 mm stroke without an extending piston rod, keeping the installation length short
• External guide on the cylinder takes up loads on the carriage
• Double-acting, both directions of travel driven by compressed air

Applications

Typical tasks for the M/146150/MC/4400 are shifting, positioning and feeding in special machines and plants with limited installation length. The M/146150/MC/4400 is ordered directly under its Norgren number, so it matches the existing machine without cross-referencing.
